AZ Instrument Corp.

K Thermocouple Hygrometer

Sale priceR 4,076.80
SKU: VZ8746BZ

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:

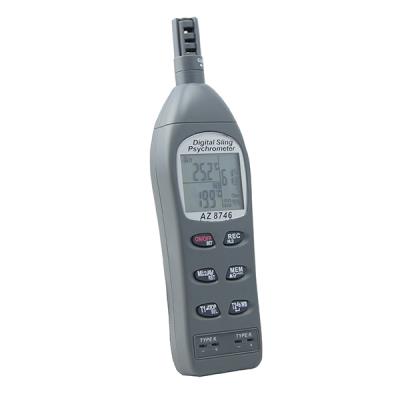

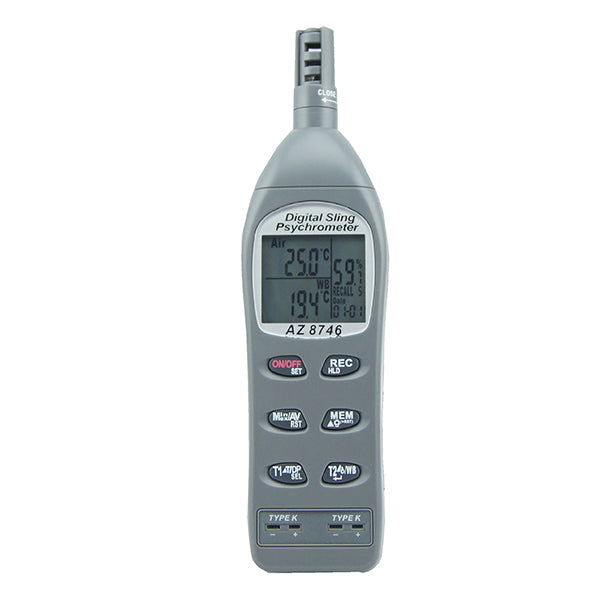

The 8746 AZ thermo hygrometer can measure the air Temperature, K thermocouple temperature, Relative Humidity, Dew point temperature and Wet bulb temperature. Its humidity RH% sensor could be calibrated with calibrated easily with the 33% and 75% salt bottle.

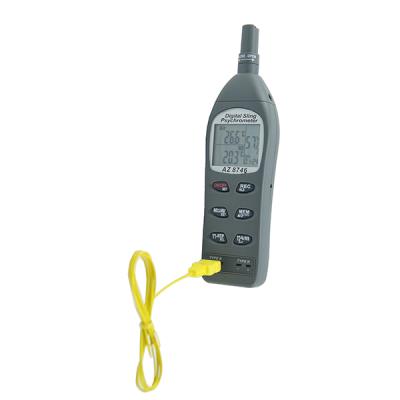

The 8746 AZ Humidity meter with dual input of K type thermocouple, user could use the 8746 AZ Psychrometer to attach the different K type temperature probe as their purpose. All data could be downloaded to the PC via the USB cable, or transfer to the 9660 AZ IrDA Data Logger and 9680 AZ IrDA Data Logger Printer to handle the following process via the IrDA output function

Highlighted Features

  • K type bead sensor for high temperature range
  • USB interface for online logging datum
  • Easy to get Dew Point / Wet Bulb / T1, T2, T1-T2 Temperature
  • Record memories and retrieve minimum & Maximum, Average readings from memories datum
  • Real time clock for each memory data
  • Tripod mountable & sensor protective mechanism
  • Infrared output for printing wireless to the optional printer

Applications

It could be used as the best humidity monitoring tool for the school, factory, warehouse, workspace, laboratories, basement, wine cellar or other controlled environment.

Specifications

Model 8746
Temperature Range -20~50℃
Temperature Resolution 0.1℃, 0.1℉
Temperature Accuracy ±0.6℃
K Temperature Range -200~1370℃
K Temperature Resolution 0.1℃, 0.1℉
K Temperature Accuracy ±(0.3%+0.7℃)
Humidity Range 0.1~99.9% RH
Humidity Resolution 0.1% RH
Humidity Accuracy ±3%RH (at 25℃ 10~90%RH,
others ±5%RH)
Dew Point Temperature Range -78.7~50.0℃
Wet Bulb Temperature Range -21.6~50.0℃
Response Time 60 Seconds Typical
LCD Size 39(L) * 32(W) mm
Operating Temperature 0~50℃
Operating RH% Humidity <80%
Storage Temperature -20~50℃
Storage RH% Humidity <90%
Meter Size 230(L) * 57(W) * 44(H) mm
Weight ~110g

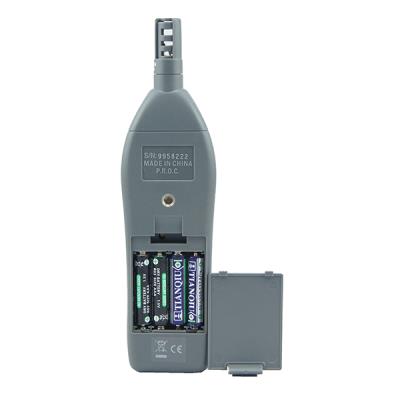

Battery AAA * 4 PCS
Standard Package Meter, K bead Thermocouple,
Batteries, Manual, Paper Box
Optional Accessory USB Cable & Software Kit, Calibration Kits,
Custom Made K Type Thermocouple, 9660, 9680
