100 AMP AC Current Transformer Sensor
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
100 AMP AC Current Transformer Sensor
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

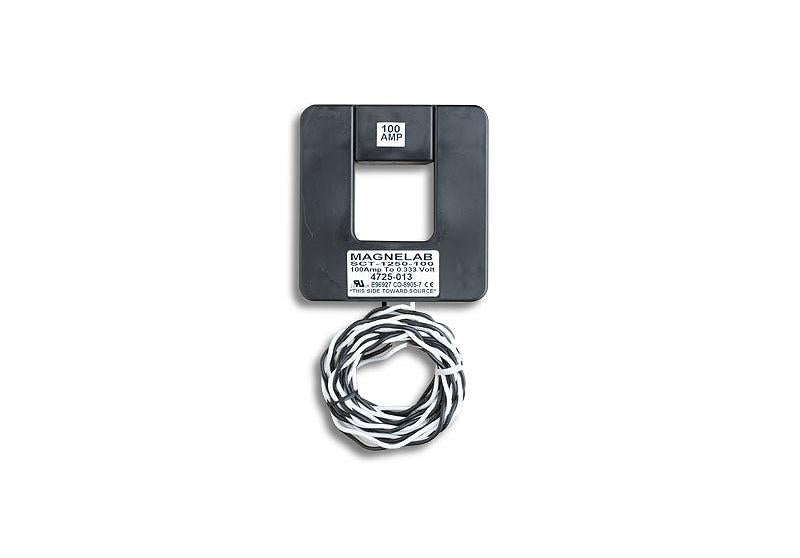

The Magnelab AC Current 100 Amp AC Current Transformer or CT (Magnelab part # SCT-1250-100) is mounted around a current-carrying wire to measure AC Amperage. This CT provides 333mV output proportional to current and is used with the FlexSmart TRMS Module for True RMS measurement of sinusoidal and non-sinusoidal waveforms.
The result is an accurate current measurement for many types of equipment, including variable frequency drives and switched power sources. One or two CTs can be used with each FlexSmart TRMS Module.
Documentation
Connection Instructions
Highlighted Features
- Rated input from 10 to 100 Amp
- Output 0.333 Volt AC at rated current
- Linearity accuracy ± 1%
- Accuracy at 10% to 130% of rated current
- Split-core design for fast, easy installation
- 8 ft. (2.44m) 22 AWG twisted pair leads
- 1.25” opening
Specifications
| Feature | Specification |
|---|---|
| Rated Input | 0 Amp to 100 Amp |
| Output | 0.333 Volt AC at rated current |
| Operating Frequency | 30 Hz to 1,000 Hz |
| Phase Angle | < 2 degrees (measured at 50% rated current) |
| Linearity Accuracy | ± 1% |
| Lead | 8 ft. twisted-pair |
| Compliance | UL, c(UL) recognized, CE, and RoHS compliant |
| Accuracy Range | 10% to 130% of rated current |
| Customization | Custom output and other parameters are available |
| Dimensions (Width x Height x Thickness) | 3.25 inches x 3.35 inches x 1.00 inches |
| Window Size | 1.25 inches |
Applications
In what environment does this sensor operate?
This sensor operates in an indoor environment.
What measurements does this sensor support?
The T-MAG-SCT-100 sensor supports the following measurements: AC Current and Amps (A)
