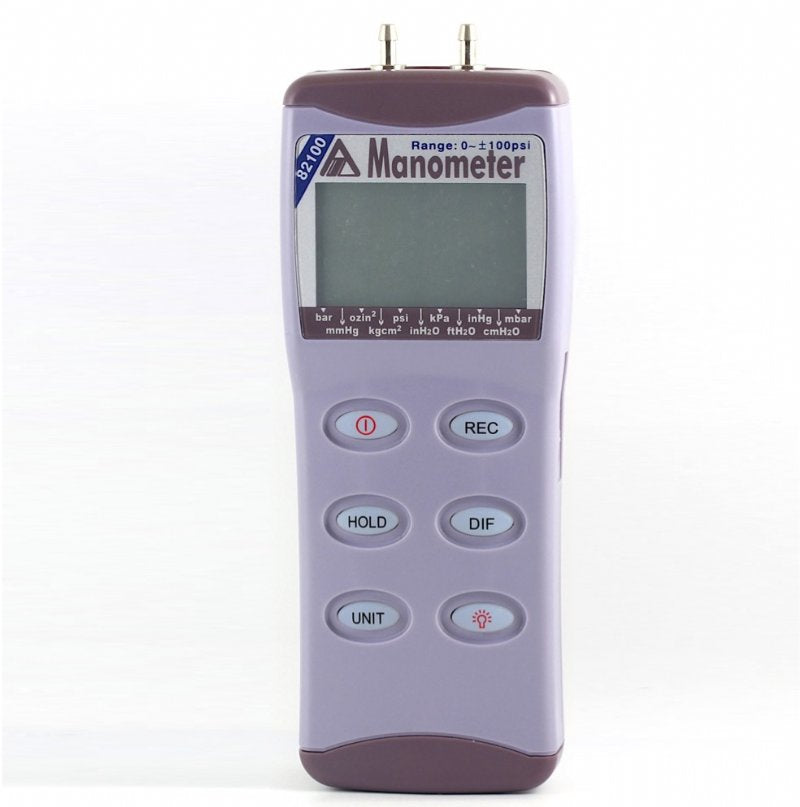

The 82100 AZ Digital Manometer can be operated by the batteries, which could be help user to measure the air differential pressure easily. The LCD of this manometer is divided into two distinct section, the large Primary screen would show the air pressure value, and the small bottom screens would show the relative clock.
The 82100 AZ Differential Pressure Meter could measure the gauge pressure with reference to ambient pressure or differential pressure between pressures. It is the ideal tool for HVAC/R technicians measuring pressure level, medical equipment, computer peripherals and pneumatic controls.e.
Highlighted Features
-
Portable digital gauge/differential pressure meter
-
Over-range indication with error messages
-
Hold function, Maximum / Minimum, Record indicator
-

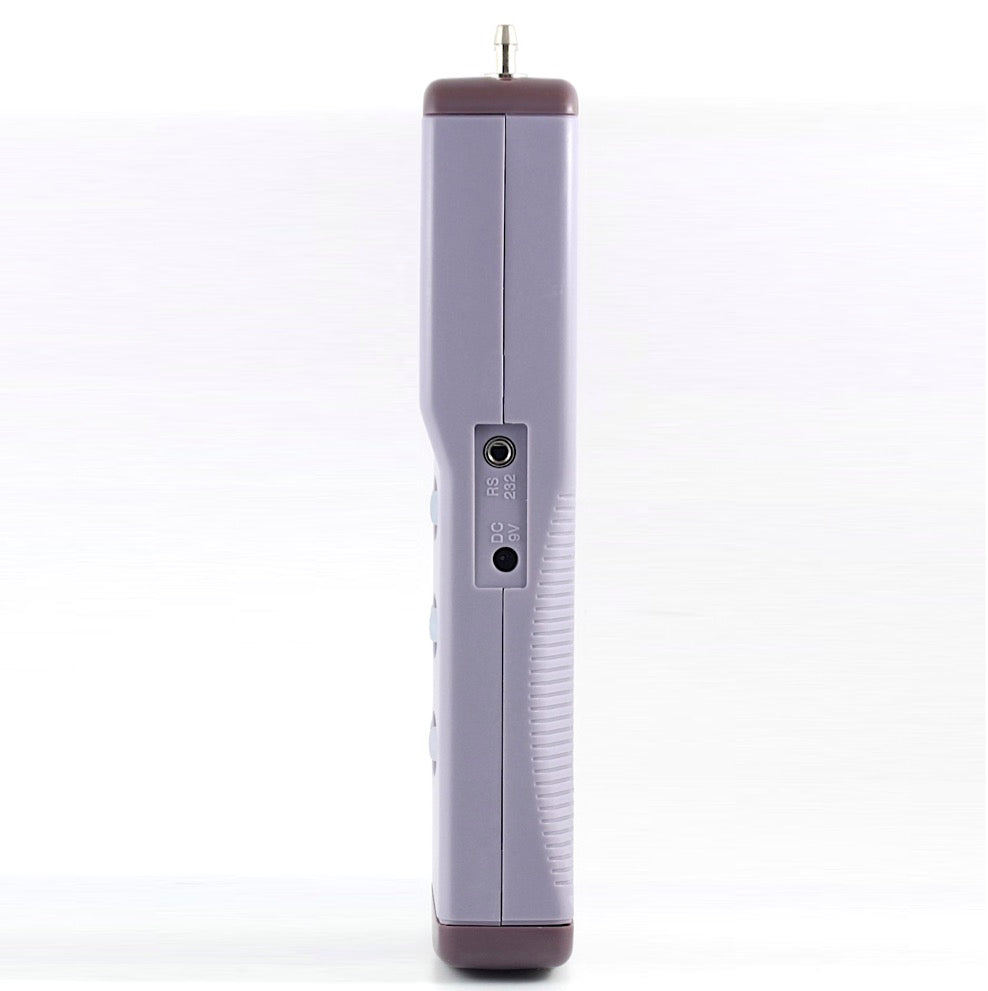

PC interface available for real time download
-
11 units for selection (metric, imperial)
-
2 size metal lug available: 4 mm (orange), 4 mm (white), & 8 mm (Black)
-
Plastic & metal available
-4 mm, metal only
-8 mm, metal or plastic
- Accumulative time shows in recording period
Applications
There are 11 pressure units could be selected for imperial and metric with 82100 AZ Gauge Pressure Meter, including the psi, kPa, mmHg, Kg/cm2, mbar(hpa), bar, inH2O, cmH2O, inHg, ftH2O and Oz/inch2, which could be applied for Pharmaceutical, Chemical/Petrochemical, Food and Power Industry.
Specifications
Model | 82100 |
psi Range (Resolution) | ±100.0 (0.1) |
kPa Range (Resolution) | ±689.5 (0.4) |
mmHg Range (Resolution) | ±5171 (3) |
Kg/cm2 Range (Resolution) | ±7.031 (0.004) |
mbar (hpa) Range (Resolution) | ±6895 (4) |
bar Range (Resolution) | ±6.895 (0.004) |
inH2O Range (Resolution) | ±2768 (2) |
cmH2O Range (Resolution) | ±7004 (4) |
inHg Range (Resolution) | ±203.6 (0.2) |
ftH2O Range (Resolution) | ±230.7 (0.2) |
oz/inch2 Range (Resolution) | ±1600 (1) |
Accuracy (25℃, 77℉) | ±0.3% of full scale |
Repeatability | ±0.2~0.5% of full scale |
Linearity/Hysteresis | ±0.29~1% of full scale |
Combined Accuracy | ±1.0% of full scale |
Response Time | 0.5 second |
Compensated Temperature Range | 0~50℃ |
LCD Size | 51(L) * 29(W) mm |
Operating Temperature | 0~50℃ |
Operating RH% | Humidity <80% |
Storage Temperature | -20~50℃ |
Storage RH% | Humidity <90% |
Meter Size | 182(L) * 72(W) * 30(H) mm |
Weight | ~150g |
Battery | 9V battery or adaptor |
Standard Package | Meter, Battery, Manual, Connection Hose, Hard Carry Case |
