Psig Ashcroft Gauge Pressure Sensor
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Select psig:100-psig
Quantity:
Pickup available at EUCA Head Office
Usually ready in 24 hours
Psig Ashcroft Gauge Pressure Sensor
100-psig
EUCA Head Office
Pickup available, usually ready in 24 hours
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

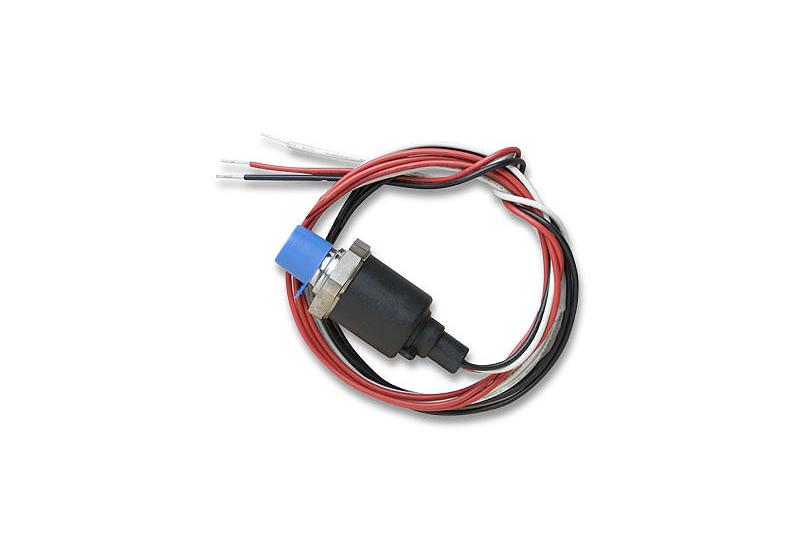

The Ashcroft Gauge Pressure Sensor provides precision pressure measurements in compressed air systems, water, or other compatible gases and fluids, with an accuracy of ±1% FS from -20° to 85°C (-4° to 185°F).
Highlighted Features
- High-performance pressure transducer for industrial applications.
- 1/4" NPT stainless-steel pressure connection.
- Available in 3 ranges: 100, 200 & 500 psig
Specifications
| Feature | Specification |
|---|---|
| Measurement Ranges | 100, 200, 500 psig |
| Compensated Temp Range | -40° to 125°C (-40° to 257°F) |
| Accuracy | ±1% FS from -20° to 85°C (-4° to 185°F) |
| ±1.5% FS -40° to -20°C and 85° to 125°C (-40° to –4°F and 185° to 257°F) | |
| Non-linearity | Less than ±0.1% of the span typical |
| Non-repeatability | Less than ±0.03% of the span typical |
| Hysteresis | Less than ±0.01 of span typical |
| Stability | Less than ±0.25% of span/year |
| Durability | Tested to 50 million cycles |
| Overpressure | 200% FS |
| Response Time | Less than 1 msec |
| Sensor Connections | |
| Output Signal | 0-5 VDC, 3 wire |
| Power | 9-36 VDC, 5mA |
| Warm-up Time | <500ms |
| Operating Temp Range | -40° to 125°C (-40° to 257°F) |
| Operating Humidity Range | 0 to 100% RH, no effect |
| Insulation Breakdown Voltage | 100 VAC |
| Insulation Resistance | Greater than 100 megohms at 100 VDC |
| Construction | Shielded cable, 24 AWG, PVC jacket, 1-meter |
| Pressure Connection | 1/4” NPT 304 stainless steel |
| Sensor Material | 17-4PH stainless steel |
| Housing Material | 20% glass-reinforced nylon, fire retardant to UL94 V1 |
| CE Compliance | Per EN 61326: 1997 + A1: 1998 + A2: 2001, Annex A (Heavy Industrial) |
| Dimensions | 2.9 cm diameter x 6.4 cm long (1.15 in. diameter x 2.5 in. long) |
| Outer Cable Diameter | 0.21 in. (5.4-mm) |
| Weight | 89.4g (3.15oz) |
| Number of Data Channels | 1 |
| Environmental Rating | IP 66 |
Applications
In what environment does this sensor operate?
This sensor operates in an indoor environment.
What measurements does this sensor support?
The T-ASH-G2 sensor supports the following measurement: Gauge Pressure
