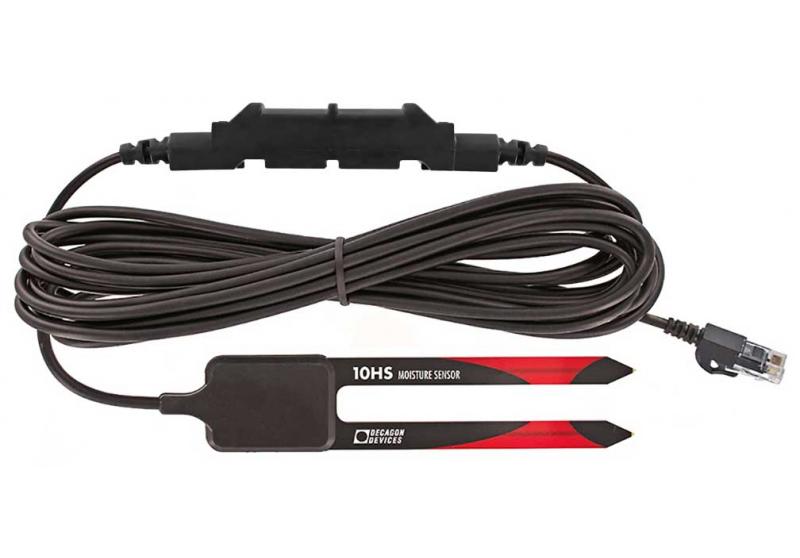

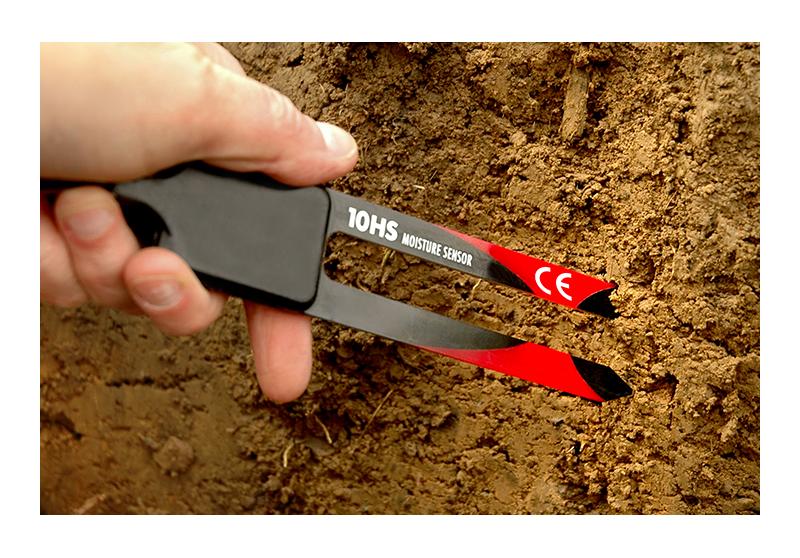

Measures soil moisture over a large volume of soil. This sensor integrates the field-proven 10HS Sensor and a 12-bit A/D, providing ±3% accuracy in most soils conditions, and ±2% accuracy with soil-specific calibration. The 10cm probes measure soil moisture over a larger volume of soil, helping to average out any soil variability. Readings are provided directly in volumetric water content. The sensor's high-frequency design minimizes salinity and textural effects and gives it a wide measurement range.
Also available in a wireless model for use with the HOBOnet Field Monitoring System.
Documents
Quick Start GuideUser Manual
Highlighted Features
- Measures a large 1-liter volume of soil, providing a more accurate picture of average soil moisture
- Provides data directly in volumetric water content
- A High-frequency (70 MHz) circuit provides good accuracy even in high-salinity and sandy soils
- Compatible with Onset stand-alone and web-based weather stations
Specifications
| Specification | Detail |
|---|---|
| Measurement Range in Soil | 0 to 0.570 m³/m³ (volumetric water content) |
| Accuracy | - ±0.033 m³/m³ (±3.3%) typical 0 to +50°C (+32° to +122°F) for mineral soils up to 10 dS/m |
| - ±0.020 m³/m³ (±2%) with soil specific calibration | |
| Resolution | 0.0008 m³/m³ (0.08%) |
| Soil Probe Dimensions | 160 x 32 x 2 mm (6.5 x 1.25 x 0.08 in.) |
| Weight | 190 grams (6.7 oz) |
| Decagon Probe Part No. | 10HS |
| Sensor Operating Temperature | 0° to +50°C (+32° to +122°F) Note on safe operation at extreme temperatures |
| Volume of Influence | 1 liter (33.8 oz) |
| Sensor Frequency | 70 MHz |
| Bits per Sample | 12 |
| Number of Data Channels | 1 |
| Measurement Averaging Option | No |
| Cable Length Available | 5 m (16 ft) |
| Length of Smart Sensor Network Cable | 0.5 m (1.6 ft) |
Note
Although the sensor probe and cable can safely operate at below-freezing temperatures (to -40°C/F) and the smart sensor tube can be exposed to temperatures up to +70°C (+158°F), the soil moisture data collected at these extreme temperatures is outside of the sensor's accurate measurement range. Extended temperatures above +50°C (+122°F) will decrease logger battery life when using the S-SMD-M005 smart sensor.
Applications
In what environment does this sensor operate?
This sensor operates in an outdoor environment.
What measurements does this sensor support?
The S-SMD-M005 sensor supports the following measurement: Soil Moisture
