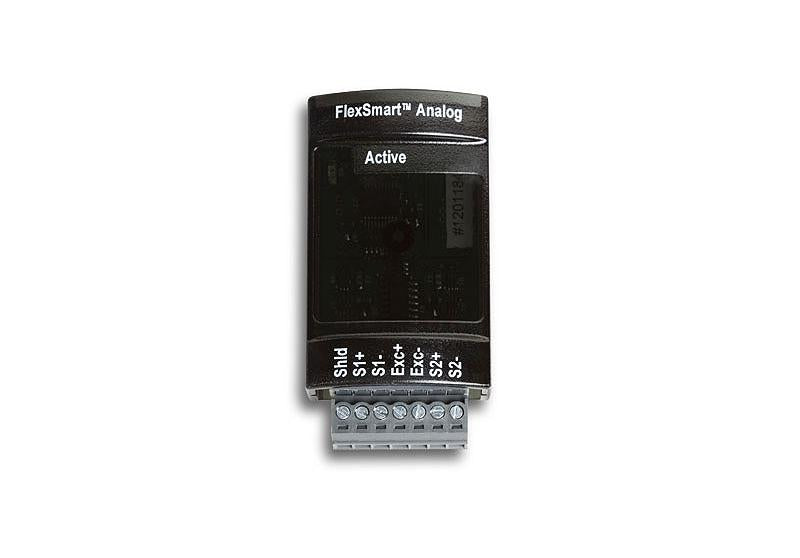

2-Channel FlexSmart Analog Module
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa
For use with the H22 Energy Logger, this module handles two single-ended input channels with user-configurable ranges of 0 to 20mA DC or 0 to 20 V DC, which is suitable for 2.5-, 5-, and 10-volt sensors. Field wiring is 2- or 3-wire via screw terminals.
Documentation
Highlighted Features
- 2 input channels of 0-20mA and/or 0-20 VDC
- Provides 12V sensor excitation and user-configurable warm-up
Specifications
Input Channels
| Channels | Description |
|---|---|
| 2 single-ended | User-configurable |
User-configurable Ranges
| Range | Description |
|---|---|
| 0-20mA | Suitable for 2.5, 5, and 10V sensors |
| 0-20VDC | Suitable for 2.5, 5, and 10V sensors |
Performance
| Parameter | Description |
|---|---|
| Accuracy | ±0.25% FS over range selected from 50mV to FS |
| A/D Accuracy | ±0.05% |
| A/D Drift | 5 ppm/°C |
| Resolution | 12-bit |
Excitation Power
| Parameter | Description |
|---|---|
| Excitation Power | 12V DC @ up to 200mA switched, with up to 2-minute warm-up in 5 msec increments |
Field Wiring
| Parameter | Description |
|---|---|
| Field Wiring | 2- or 3-wire via screw terminals |
Applications
In what environment does this sensor operate?
This sensor operates in an indoor environment.
What measurements does this sensor support?
The S-FS-CVIA sensor supports the following measurements: 4-20mA, Air Velocity, Carbon Dioxide, Compressed Air Flow, DC Current, DC Voltage, Differential Pressure, Kilowatts (kW), and Volatile Organic Comp
