WattNode Branch Circuit kWh Transducer Sensor
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
WattNode Branch Circuit kWh Transducer Sensor
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa
Provides accurate kWh measurement at a low cost to meet your needs for sub-metering, net-metering, energy management, and performance contracting applications.

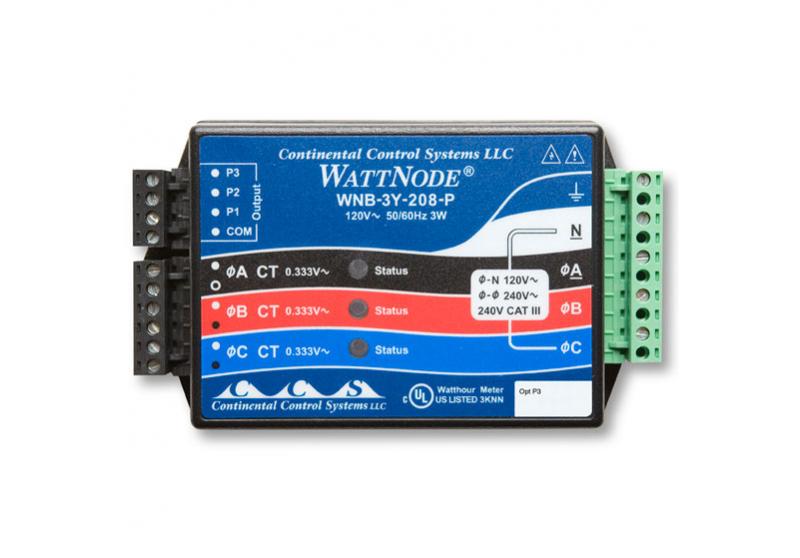

This WattNode kWh Transducer works with Magnelab AC Current Transformers and a Pulse Input Adapter or a HOBO Data Node pulse input port to provide True RMS kilowatt hours of energy used, even for loads with non-sinusoidal waveforms.
Because these sensors tie directly into the line, they should only be used by qualified personnel. This model supports up to 3 separate 120 VAC single-phase branch circuits or individual 120 VAC phases of a 3-phase wye-connection 208/240 VAC circuit.
Highlighted Features
- Measures up to 3 separate branch circuits simultaneously, reducing complexity and cost
- Use with a wide choice of current transformers (sold separately); ratings from 5 to 1500 amps
- Accurate measurement of multiple single phases or each phase of 3-phase configurations
- Easy to install and wire
- Individual pulse outputs for each circuit, compatible with pulse input logger models
- Small size: can be installed in existing service panels or junction boxes
- Diagnostic LEDs: confirms proper installation for all phases
- Line powered: no external supply required
- Detachable terminal blocks: easy to install and remove
Applications
In what environment does this sensor operate?
This sensor operates in an indoor environment.
What measurements does this sensor support?
The T-WNB-3Y-208-P sensor supports the following measurement: Kilowatt Hours (kWh)
Specifications
| Specification | Detail |
|---|---|
| Wye Configuration Ranges | 120, 208, 240 Volts AC - Neutral required |
| Configurations | - 1 Phase 2 Wire 120V (with neutral) |
| - 1 Phase 3 Wire 120V/240V | |
| - 3 Phase 4 Wire 120V/208V | |
| Rating | FCC Class A |
| Operating Voltage Range | ±20% of nominal |
| Frequency | 60 Hz |
| CT Input | 0-0.5 VAC operating, 3 VAC maximum |
| Accuracy | ±0.45% of reading + 0.05% FS through 25th harmonic (accuracy varies with CT used and line variation, it could be 1.5% to 4% of reading) |
| Enclosure | High impact, UL rated ABS plastic |
| Connectors | UL, cUL recognized, detachable screw terminals (14 AWG), 600V |
| Operating Temperature Range | -30 to 60°C (-22 to 140°F) |
| Operating Humidity Range | 0 to 90% RH, non-condensing |
| Dimensions | 8.5 cm x 14.3 cm x 3.8 cm (3.3 in. x 5.6 in. x 1.5 in.) |
| Weight | 295 g (10.4 oz.) |
| Number of Data Channels | 3 |
