3m Tripod Tower w/ Mast HWS

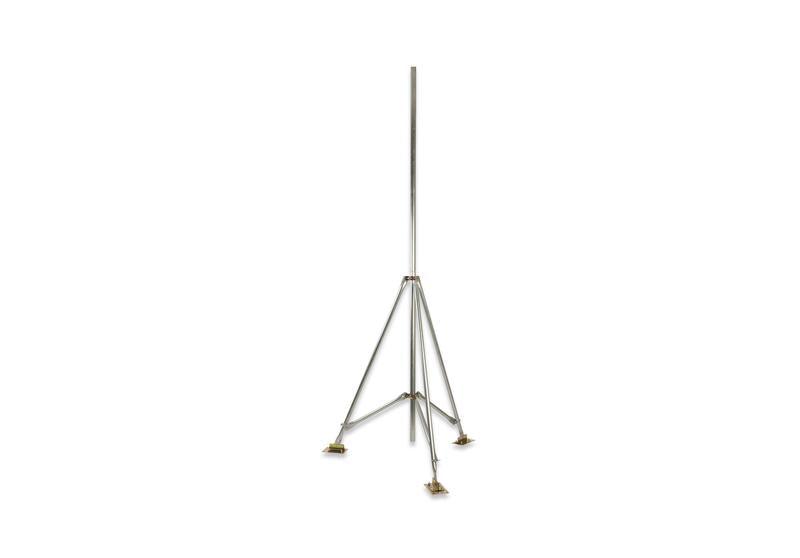

3-meter tripod with mast used for mounting loggers and other sensors in a weather station application. Can be placed on any slope less than 13 degrees. (Cross arms, data logger, sensors, and radiation shield sold separately.)
Documentation
Setup Guide
Specifications
| Specification | Value |
|---|---|
| Cross Arm Height Range | 2.74 to 3.20 m (9 to 10.5 ft.) |
| Leg Height (to top of legs) | 1.32 m (4.3 ft.) |
| Mast Diameter | 4.1 cm (1.63 in.) |
| Tripod Footprint | 91 cm (3 ft.) |
| Weight | 12.7 kg (28 lbs.) |
| Maximum Slope | 13° (for installation on moderately uneven ground) |
