4 Channel Thermistor Recorder with Relay

Sale priceR 5,913.60
SKU: VZ88597BZ

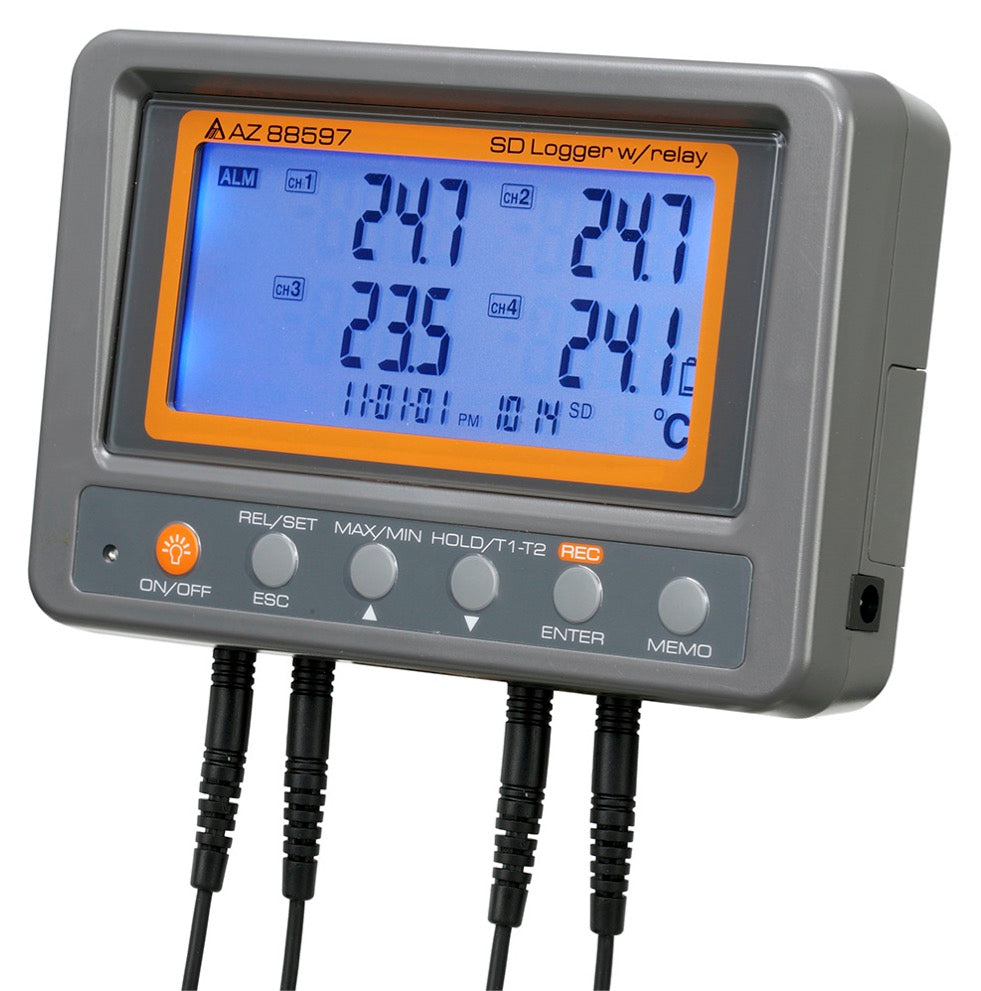

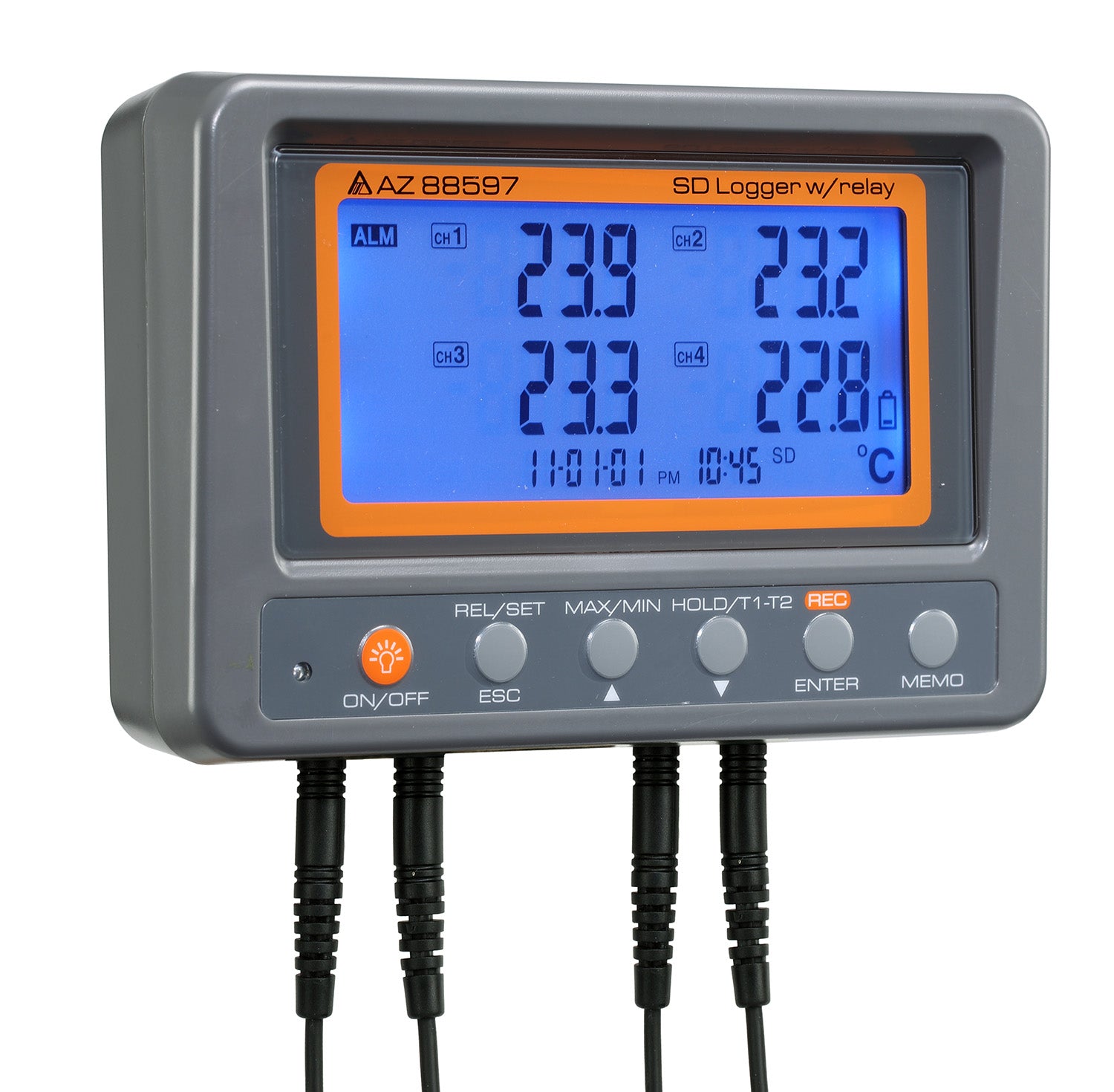

The 88597 AZ Temperature Recorder can measure and monitor the temperature from 4 different origins, including 4 Thermistor channels. Users could use the 9V DC and its wall mount function for long-time recording works, or 4 PCS AA batteries for convenient monitoring/logging. The temperature value would be saved in the TXT format into the SD card, and then users could proceed with their following analysis by Excel or other software. It could be operated easily in different PC operation systems. The SD card could be inserted and taken off easily.

The 88597 AZ 4 Channel SD Card Thermometer with Thermistor Sensor has a super big LCD which could be met with temperature monitor and recording purpose for the Construction, Logistic related business and other Industry. It also has the back light function, which could let user to operate the data logger in the dark area easily.

Highlighted Features

  • Super big LCD portable / wall-mount SD card logger
  • Measure and Log 4 temperature at once by using quick response NTC
  • Thermistor probes
  • Programmable independent high/low alarm of each channel with relay output *
  • One button press operation to display T1-T2
  • Display temperature change from baseline
  • Temperature offset function for adjustment purpose
  • Relay to trigger external alarm system on (ex: GSM message)
  • Hold function, Max/Min, offset, Low battery indicator
  • Beeper and LED alarm are both available
  • Programmable temperature High/Low alarm limit
  • Over-range indication with error messages
  • Blue back light function for dark area operation
  • 12/24 hour time format selective
  • Real time display (YEAR-MON-DATE, Hour-Min)
  • 20 mins auto power off to save power
  • Temperature units ℃/℉ selectiverd)


The 88597 AZ 4 Channel Thermistor SD Card Data Logger has a relay function, which could transfer the temperature signal to the other equipment (ex: GSM Alarm) or control the following related instruments.


Model 88597
Thermistor Temperature Range -30~70℃, -22~158℉
Thermistor Temperature Resolution 0.1℃, 0.1℉
Thermistor Temperature Accuracy 0.5℃
Relay A normal open contact
Contact rating@resistive load: 1A 30VDC/0.5A 125VAC
SD Card SD Card or SDHC card (MMC and SDXC cards are not compatible)
Sampling Rate Programmable from 1 second up
LCD Size 104(L) * 47(W) mm
Operating Temperature 0~50℃
Operating RH% Humidity <80%
Storage Temperature -20~50℃
Storage RH% Humidity <90%
Meter Size 152(L) * 100(W) * 39(H)mm
Weight ~300g
Battery 4PCS AA Alkaline Batteries or 9V DC Adaptor
Standard Package Meter, 4 PCS Thermistor Sensor Probes
Battery, Manual, SD Card, Plain Box
Optional Accessory Temperature Thermistor Sensor Probe, 9V Adaptor
