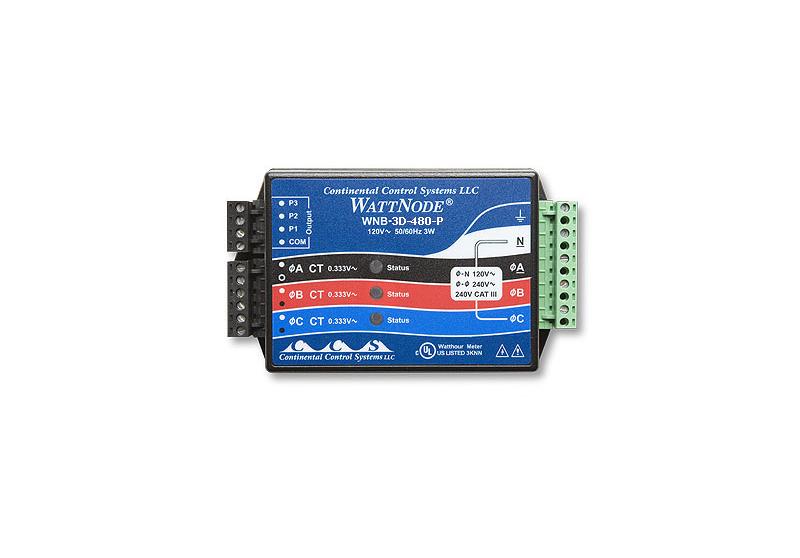

WattNode 3D-480 Delta/Wye kWh Transducer Sensor
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
WattNode 3D-480 Delta/Wye kWh Transducer Sensor
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa
Provides accurate measurement at a low cost to meet your needs for sub-metering, net-metering, energy management, and performance contracting applications.
This WattNode Delta or Wye-connection kWh Transducer works with Magnelab AC Current Transformers and a Pulse Input Adapter to provide True RMS kilowatt hours of energy used, even for loads with non-sinusoidal waveforms.
Because these sensors tie directly into the line, they should only be used by qualified personnel. This model supports a 3-phase Delta connection of 480 VAC.
Documentation
Data SheetUser Manual
Highlighted Features
- Measures 1, 2, or 3 phases in 2, 3, or 4 wire configurations
- Use with a wide choice of CTs (sold separately); ratings from 5 to 1500 amps
- Accurate measurement of 1-,2-, or 3-phase configurations
- Easy to install and wire
- Pulse output: compatible with pulse input logger models
- Small size: can be installed in existing service panels or junction boxes
- Diagnostic LEDs: confirms proper installation for all phases
- Bidirectional metering: net metering for PV (photovoltaic) solar and wind power generation with only one meter
- Metering of variable frequency drives
- Line powered: no external supply required
- Detachable terminal blocks: easy to install and remove.
- UL, cUL listed: designed and tested for safety and use throughout North America
- CE Mark: can be installed throughout the EU
Applications
In what environment does this sensor operate?
This sensor operates in an indoor environment.
What measurements does this sensor support?
The T-WNB-3D-480 sensor supports the following measurement: Kilowatt Hours (kWh)
Specifications
Specification | Detail |
---|---|
Operating Voltage Range | ±20% of nominal |
Frequency | 60 Hz |
CT Input | 0-0.5 VAC operating, 3 VAC maximum |
Connectors | UL, CSA recognized, detachable screw terminals (14 AWG), 600V |
Operating Temperature Range | -30 to 60°C (-22 to 140°F) |
Operating Humidity Range | 0 to 90% RH, non-condensing |
Dimensions | 8.5 cm x 14.3 cm x 3.8 cm (3.3 in. x 5.6 in. x 1.5 in.) |
Weight | 295 g (10.4 oz.) |
Number of Data Channels | 2 |
Configuration Ranges | Delta or Wye: 480 Volts AC |
Configurations | - 3 Phase 3 Wire (No neutral) |
- 3 Phase 4 Wire | |
Accuracy | ±0.45% of reading + 0.05% FS through 25th harmonic. Depending on CT used and line variation, accuracy could vary from 1.5% to 4% of reading |
