50 Amp AC Current Transformer Sensor

Sale priceR 1,086.38
SKU: T-MAG-0400-50

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

50 Amp AC Current Transformer Sensor

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

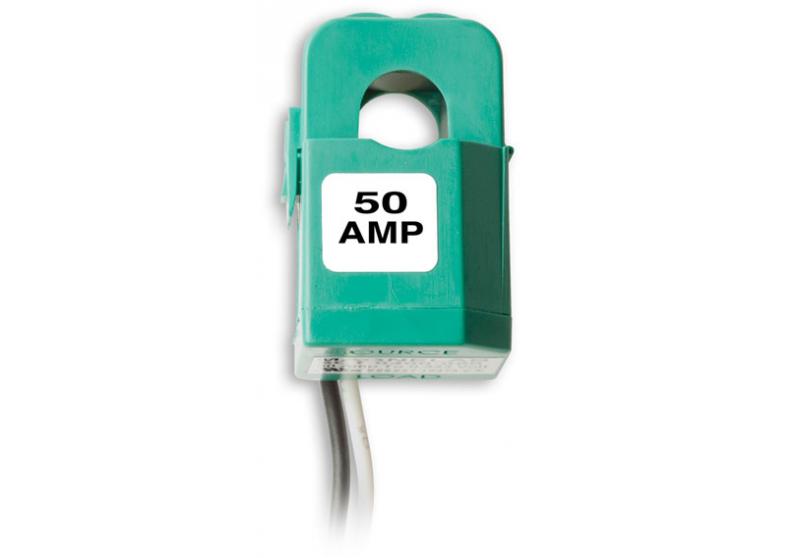

The small size 50 AMP split-core AC Current Transformer (CT) is mounted around a current carrying wire to measure AC amperage.

This CT provides a 0 to .333 Volt AC output proportional to current flow and is used with Onset data loggers via the FlexSmart TRMS module and with kWh transducers (WattNodes) for True RMS measurement of sinusoidal and non-sinusoidal waveforms. The result is an accurate current measurement for many types of electrical equipment.

Documentation

Connection Instructions

Highlighted Features

  • Rated input from 5 to 50 AMP
  • Output 0.333 Volt AC at rated current
  • Linearity accuracy ± 1%
  • Accuracy at 10% to 130% of rated current
  • Split-core design for fast, easy installation
  • 8 ft. (2.44m) 24 AWG twisted pair leads
  • 0.40" (10.15mm) opening

    Specifications

    Specification Value
    Rated Input Current 5 to 50 AMP
    Output Voltage 0.333 Volt AC at rated current
    Frequency Range 50 Hz to 400 Hz
    Linearity Accuracy ± 1%
    Accuracy Range 10% to 130% of rated current
    Design Split-core
    Lead Length 8 ft. twisted-pair lead
    Opening Size 0.40" (10.15mm)
    Certifications UL Recognized, CE and RoHS compliant
    Self-locking Mechanism Guaranteed for 500 closing
    Dimensions (Width x Height x Thickness) 1.00" x 1.56" x 1.05"
    Window Size 0.40 inches

    Applications

    In what environment does this sensor operate?

    This sensor operates in an indoor environment.

    What measurements does this sensor support?

    The T-MAG-0400-50 sensor supports the following measurements: AC Current and Amps (A)
