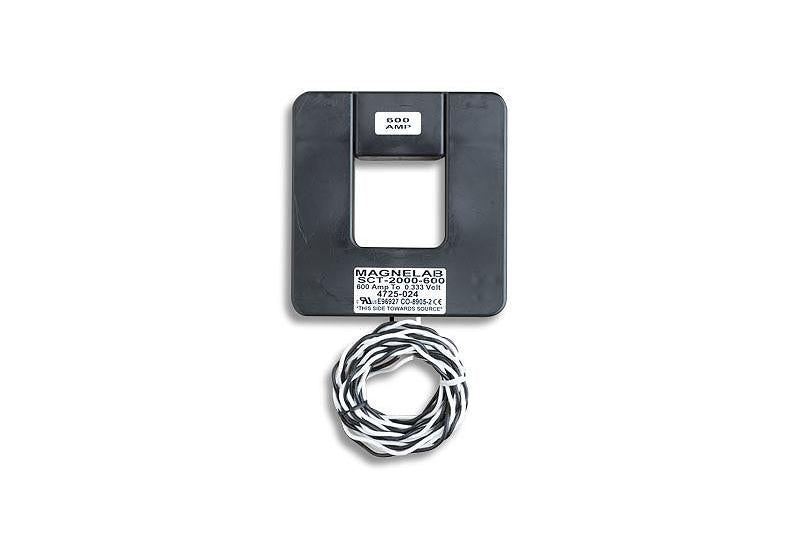

This AC Current Transformer with a 600-Amp rating is designed to encircle a wire that carries electrical current in order to gauge its AC amperage accurately. With an output of 333 millivolts that's proportional to the current, it is compatible with the FlexSmart TRMS Module for precise True RMS calculations of both sinusoidal and non-sinusoidal waveforms.
This makes it highly versatile, as it can measure current in a variety of equipment, including but not limited to variable frequency drives and switched power sources. Each FlexSmart TRMS Module can operate with either one or two of these current transformers.
- Rated input from 60 to 600 AMP
- Output 0.333 Volt AC at rated current
- Linearity accuracy ± 1%
- Accuracy at 10% to 130% of rated current
- Split-core design for fast, easy installation
- 8 ft. (2.44m) 22 AWG twisted pair leads
- 2.00” opening
|Rated Input Current||60 to 600 Amp|
|Output Voltage||0.333 Volt AC at rated current|
|Frequency Range||30 Hz to 1,000 Hz|
|Phase Angle||< 2 degrees at 50% rated current|
|Linearity Accuracy||± 1%|
|Accuracy Range||10% to 130% of rated current|
|Lead Length||8 ft. twisted-pair lead|
|Certifications||UL, c(UL) recognized, CE and RoHS compliant|
|Customization Options||Custom output and other parameters available|
|Self-locking Mechanism||Not specified|
|Dimensions (Width x Height x Thickness)||4.75" x 5.00" x 1.20"|
|Window Size||2.00 inches|
In what environment does this sensor operate?
This sensor operates in an indoor environment.
What measurements does this sensor support?
The T-MAG-SCT-600 sensor supports the following measurements: AC Current and Amps (A)
