AZ Instrument Corp.
Pocket 2-in-1 Tachometer
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Pocket 2-in-1 Tachometer
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

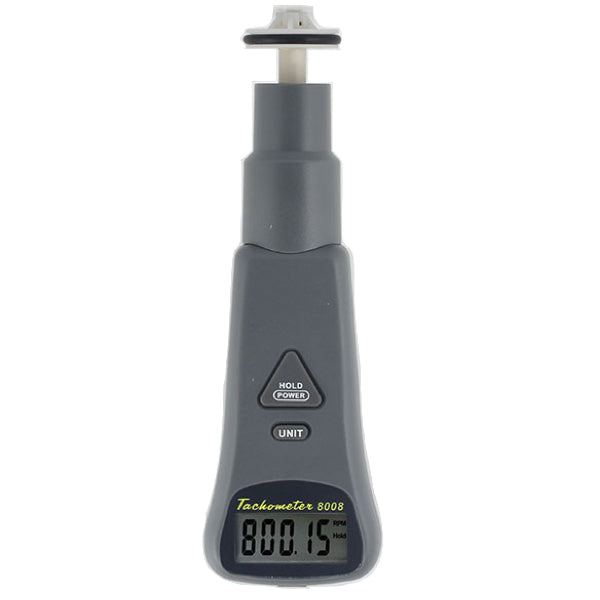

The AZ 8008 Combo Tachometer can measure the rotation speed of a shaft and can be used in the automobile, motor, and machinery industries.
Highlighted Features
-
Lowest cost contact and non-contact 2-in-1 combo tachometer in the market
-
Two ways to power on/off
-
Simple three steps to transform from contact to a non-contact tachometer
-
Non-contact measurement by red LED beam
-
Contact rotating objects via convex or concave contact tips
-
Measure RPM from 10 to 99999 RPM
- Auto range function
-
Affix a reflective tape to the rotating element to measure
-
Four rotation speed units are switchable in contact mode: rpm, m/min, ft/min, yd/min
-
Non-Sleep mode & hold function
-
Auto power off after 20 mins inactivity
- Low battery indicator
Application
The 8008 AZ RPM meter (RPM: Revolutions Per Minute), has a way to measure the rotation speed of a shaft, including the motor, truck, machine, engine, automobile, and vehicle industry.
The hand held 8008 AZ tachometer has the read LED beam as the non-contact infrared tachometer and it also can contact the rotating object (ex: spare wheels) directly via the convex or concave contact tips.
Specifications
| Model | 8008 |
| Non-Contact Rotation Measuring Range | 10.0~99999 RPM |
| Contact Rotation Measuring Range | 10.0~19999 RPM |
| Contact Surface Speed Measuring Range | 1.0000~9999.9 M/Min 3.0000~30000 Ft/Min 1.0000~10000 Yd/Min |
| RPM Unit Resolution | 0.001/0.01/0.1/1 |
| M/Min Unit Resolution | 0.0001/0.001/0.01/0.1 |
| Ft/Min Unit Resolution | 0.0001/0.001/0.01/0.1 |
| Yd/Min Unit Resolution | 0.0001/0.001/0.01/0.1 |
| Accuracy | ±(0.1% of rdg. +2 digit) |
| Measure Distance | 5~30 cm (non-contact) |
| Power Consumption | 5uA (Idle), 18 mA (measurement) |
| Time base | 4.0 Mhz Quartz Crystal |
| Sampling time | 1 second (＞60 RPM) ＞1 second (10~60 RPM) |
| LCD Size | 33(L) * 15(W) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -10~50℃ |
| Storage RH% | Humidity ＜90% |
| Meter Size | 165(L) * 51(W) * 32(H) mm |
| Weight | ~90g |
| Battery | 9V battery *1 PC |
| Standard Package | Meter, Battery, Manual, Paper Box, Reflective Tape, Convex Tip, Concave Tip |
