AZ Instrument Corp.
ORP Quality Tester
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
ORP Quality Tester
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

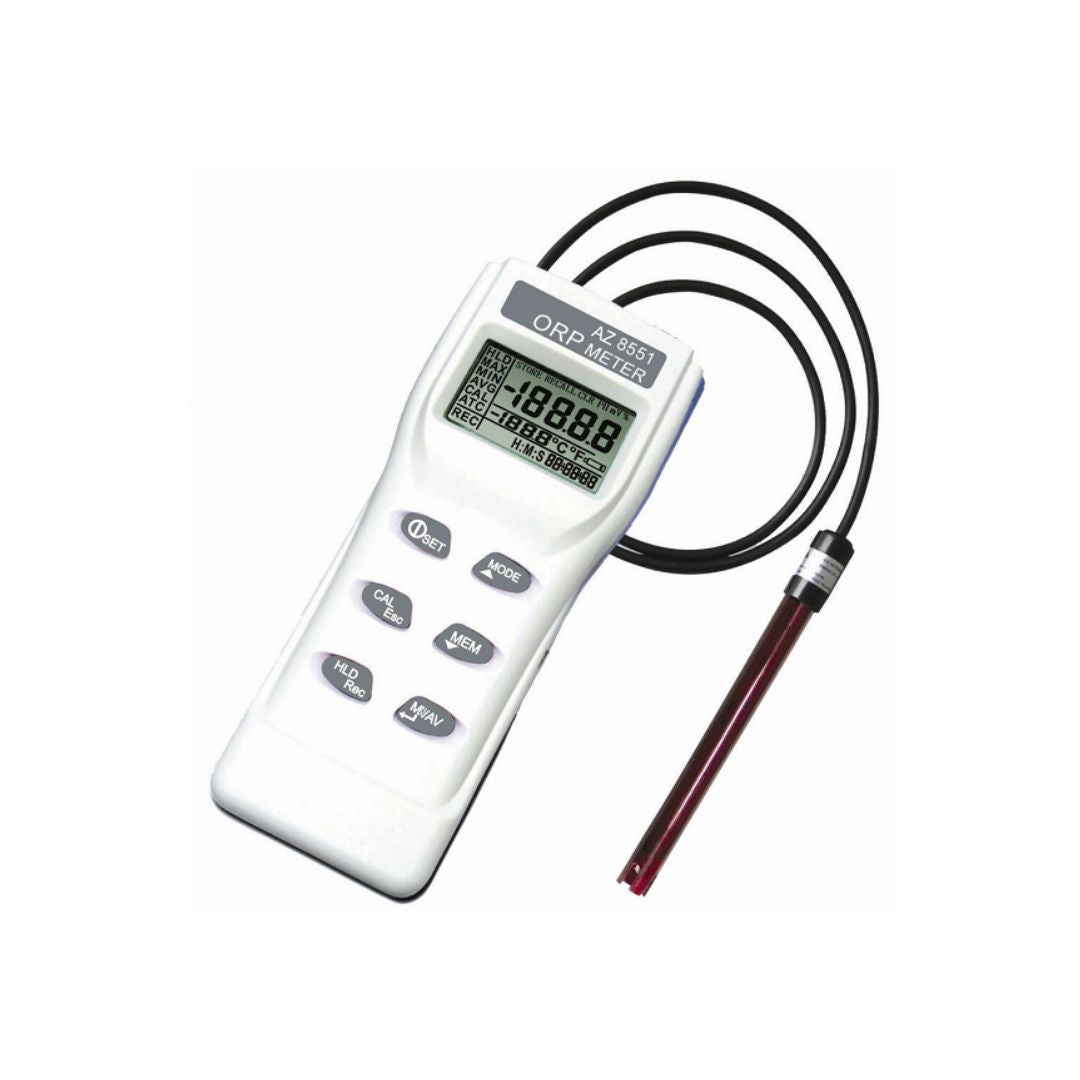

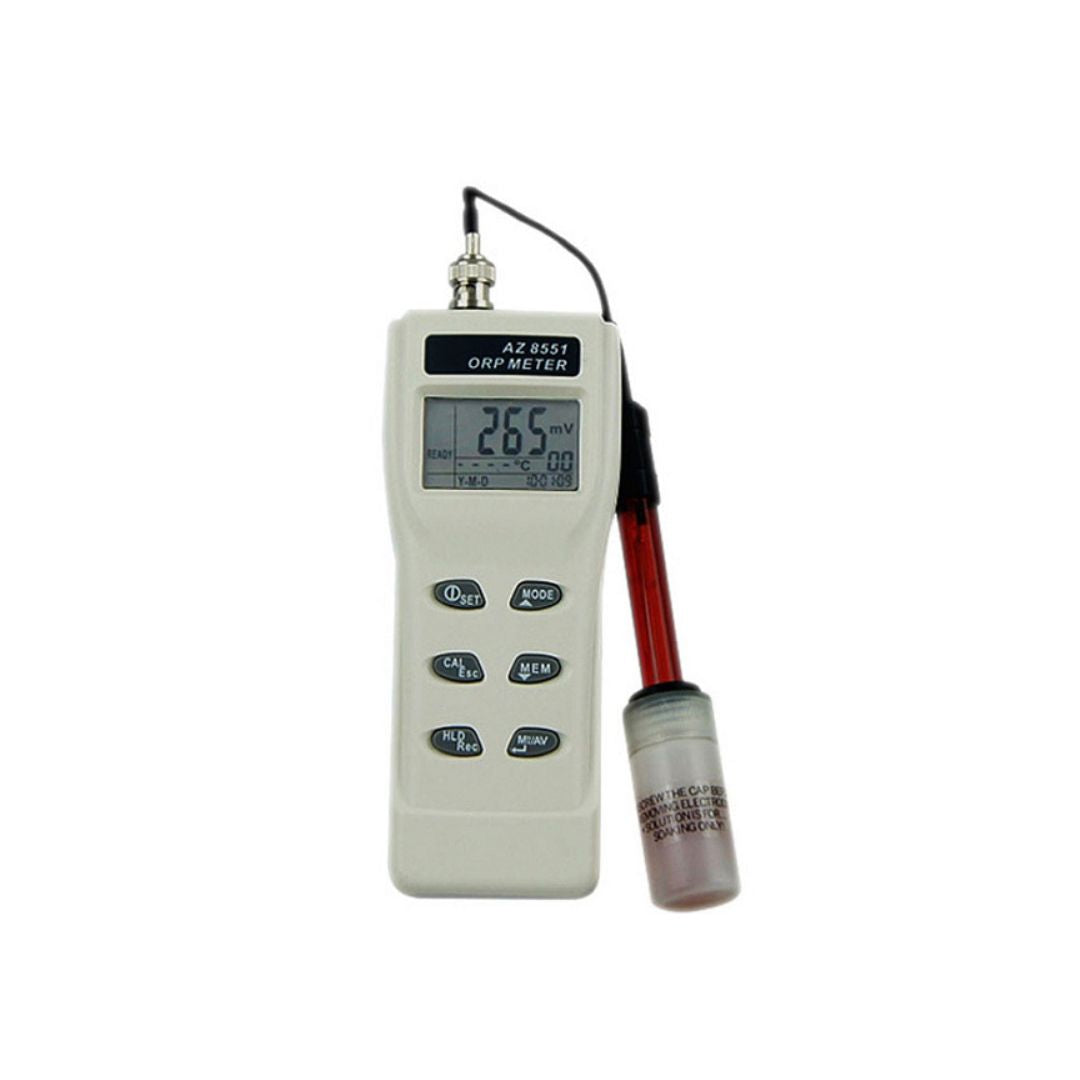

The AZ 8551 ORP Meter can measure the oxidation-reduction potential value from -1999mV to +1999mV, which can be used widely in water quality testing applications.
Highlighted Features
-
One-touch auto-calibration up to 5 points
-
Calibration values are adjustable
-
Hold function to freeze the record
-
Max./Min review of memorized data
-
Easy to view probe calibration data.
-
The "Ready" icon on the LCD indicates whether the reading is stable or not
-
USB connection for online logging or uploading 99 memories to PC for analysis
-
Could be powered by an adaptor for long-time use
-
Auto power off to save battery power
- Temperature unit ℃/°F is switchable
Applications
The portable 8551 AZ ORP Meter can measure the oxidation-reduction potential value from -1999mV to +1999mV, which had been widely operated in Water Quality Testing applications.

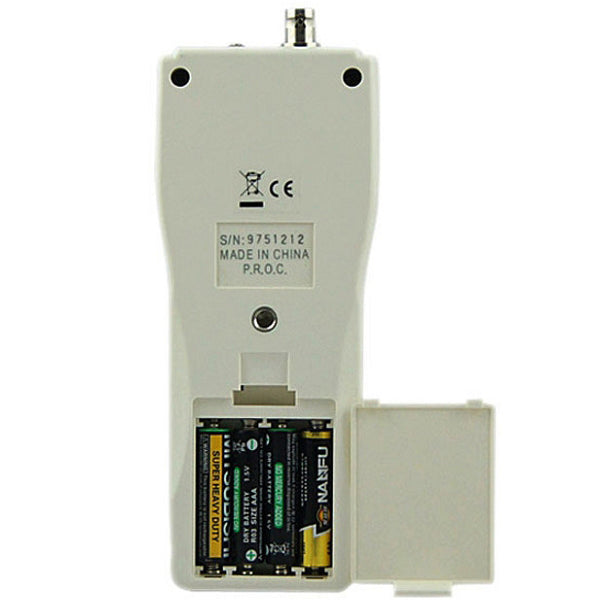

The 8551 AZ ORP Meter could be powered by 4pcs AAA batteries for carrying easily or a 9VDC adaptor for the long-time measuring plan with the tripod.
The 8551 AZ ORP mV Meter could link to a PC via USB cable to capture the online data and display the mV, oxidation-reduction potential (ORP), and temperature readings with real-time output. Users can retrieve files, save data for operating data analysis, record statistics....versatile functions according to different purposes.
The 8551 AZ ORP Meter could be the best Water Quality tester for all professional measuring purposes, including the LAB, water treatment business, Aquaculture, Aquafarm, swimming pool, or other related industries.
Specifications
| Model | 8551 |
| mV Measuring Range | -1999~1999 mV |
| mV Accuracy | ±0.2 mV (-199.9~1999.9 mV) or ±2 mV (others) |
| mV Resolution | ±0.1 mV (-199.9~1999.9 mV) or ±1 mV (others) |
| Temperature Measuring Range | 0~60.0℃ |
| Temperature Accuracy | ±0.3℃ |
| Temperature Resolution | 0.1℃ |
| pH Calibration | Up to 5 points |
| 99 points memory | YES |
| Real Time Clock | YES |
| Compatible Probe | ORP: 850PAZ, 86P5AZ |
| LCD Size | 44(L) * 26(W) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -10~50℃ |
| Storage RH% | Humidity ＜90% |
| Sensor Life Time | >6 months (with good maintenance) |
| Meter Size | 175(L) * 70(W) * 33(H) mm |
| Weight | ~150g |
| Battery | AAA *4 PCS |
| Standard Package | Meter, Batteries, Manual, Carry Case, Calibration Solution |
| Optional Accessory | USB Cable & Software |
