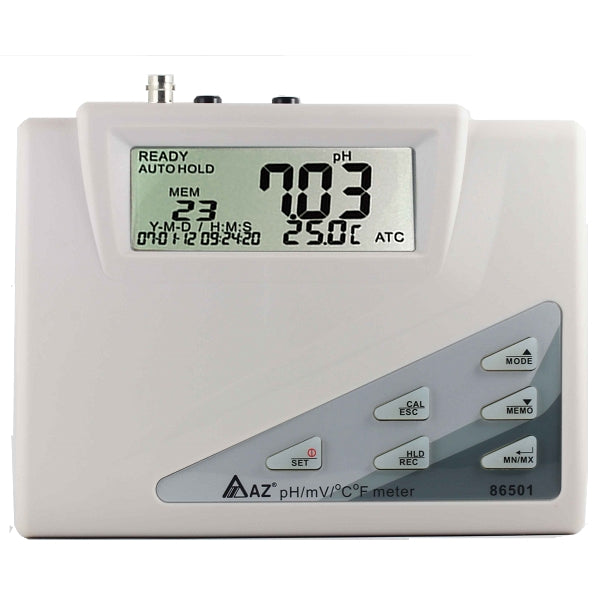

The AZ 86501 Digital Benchtop Meter measures the pH and mV and displays data on a big LCD screen, which could be a multi-display. There is a built-in drawer that could allow users to store testing data, examination results, memorandum, or important notes in it.
Highlighted Features
-
Multi-Display pH, mV & Temperature
-
Automatic buffer recognition to avoid errors during calibration
-
Maximum 5 points calibration points for pH Benchtop meters
-
Hold function to freeze the record
-
Max./Min. review of memorized data
-
Reliable and replaceable probe with temperature compensation
-
Auto or manual temperature compensation
- Convenient to view the calibration information of the probe
-
The "Ready" icon on the LCD indicates the reading is stable
-
99 memories and could be downloaded to a PC for analysis
-
Collect data via RS232 interface by linking with PC
-
Analog output for chart recorders
- Durable electrode holder for left & right side placement
Applications
The 86501 AZ Accurate Digital Benchtop pH Meter can measure the pH and mV. The big LCD screen could be multi-display. The pH sensor electrode should be connected to the BNC port
There is a drawer built-in at the bottom of the 86501 AZ Accurate Digital Benchtop pH Meter, which could let user store testing data, exam results, memorandum, or important notes in the drawer. That would be more convenient for any professional study and research in the lab.

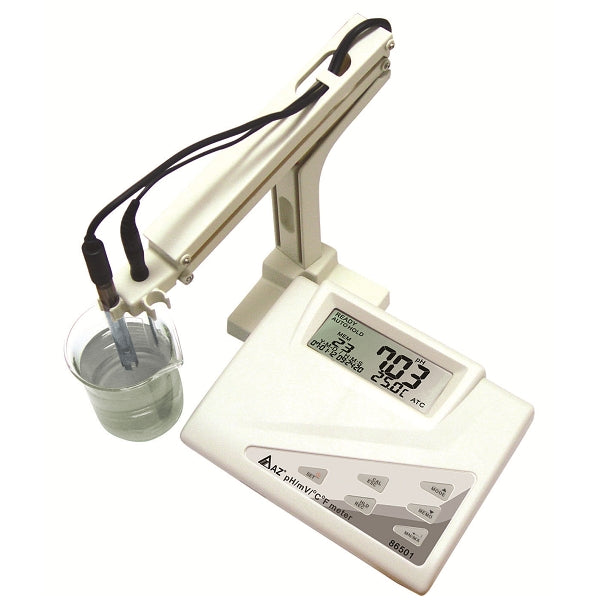

The holder of 86501 AZ Accurate Digital Benchtop pH Meter could be fixed either on the right side or the left side of the meter, that design is friendly for different operations.

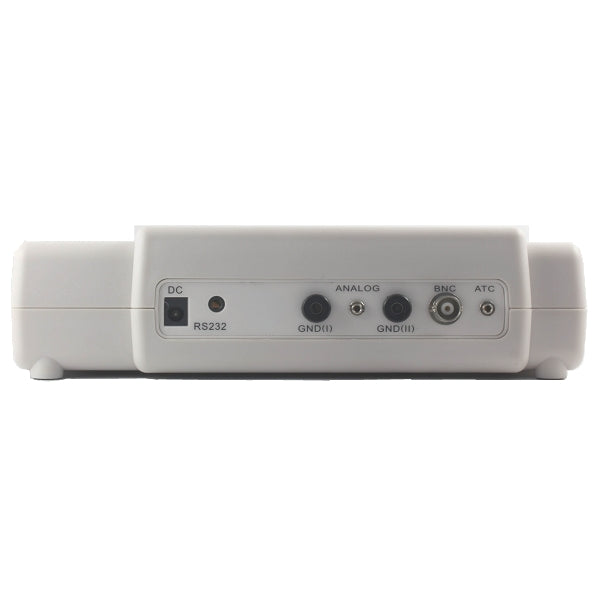

The user could connect the 86501 AZ Accurate Digital Benchtop pH Meter to a PC via RS232 cable to upload the real-time measurement values and memories for further analysis.
The 86501 AZ Accurate Digital Benchtop pH Meter could be the best ph measurement tool for all professional measuring purposes, including the LAB, water treatment business, Aquaculture, Aquafarm, swimming pool, or other related industries.
Specifications
| Model | 86501 |
| pH Measuring Range | 0.00~14.00 |
| pH Resolution | 0.01 |
| pH Accuracy | ±0.02 |
| mV Measuring Range | ±1999 mV |
| mV Resolution | ±0.1 mV (-199.9~199.9 mV) or ±1 mV (others) |
| mV Accuracy | ±0.2 mV (-199.9~199.9 mV) or ±2 mV (others) |
| Temperature Measuring Range | 0~80.0℃ |
| Temperature Resolution | 0.1 |
| Temperature Accuracy | ±0.5℃ |
| Compatible Probe | VZ86P3AZ:ATC pH probe VZ86P2AZ: pH probe without ATC function VZ86P4AZ: Low Ion Strength pH probe w/o ATC function VZ86P6AZ: full glass pH probe without ATC function VZ86P7AZ: Sharp tip pH probe without ATC function VZ86P1AZ: flat surface pH probe without ATC function |
| LCD Size | 105(L) * 40(W) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -20~60℃ |
| Storage RH% | Humidity ＜90% |
| Meter Size | 260(L) * 168(W) * 58(H) mm |
| Weight | ~150g |
| Battery | 9V Adaptor |
| Standard Package | Meter, USA Plug Type Adaptor, Manual, Probe, The solution, Cable, Software CD, Probe Stand, Paper Box |
