AZ Instrument Corp.

Hygrometer PC Download

Sale priceR 7,090.67
SKU: VZ87601AZ

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

Hygrometer PC Download

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

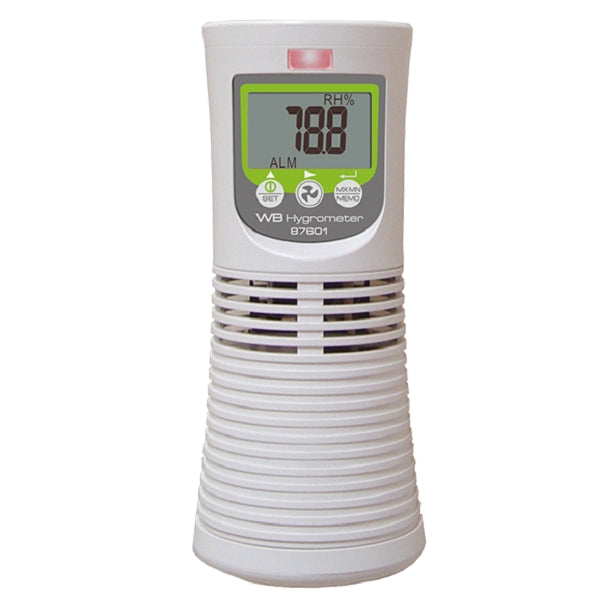

The AZ 87601 Humidity Recorder features a large, easy-to-read LCD display, and two thermistor-type sensors in order to retrieve accurate and quick temperature and humidity readings.

Highlighted Features

  • Easy-to-read big LCD display
  • Designed with two Thermistor type sensors to get accurate and quick temperature & humidity readings by the dry bulb and wet bulb principle
  • Built-in fan to speed up the response time to 2 mins
  • Temperature and humidity high/low alarm setting is available
  • Temperature units C/F selectable
  • Dual-colour LED indicator for logging and alarm
  • Maximum/minimum, Hold functions
  • Battery low indicator
  • 8000 points auto-logging memories
  • 8000 points memory could be downloaded to PC for analysis
  • Auto logging sampling rate selectable
  • Excellent for a greenhouse, high humidity, harsh and dusty environment
  • Condensation caused by water, pesticide, fertilizer spray, and dust scrap has a very limited effect on humidity reading
  • Humidity self-calibration is not necessary

Applications

The 87601 AZ Hygrometer is designed with combined the traditional dry & wet bulb method and modern electronic circuit technology. There is no humidity sensor in the 87601 AZ Humidity Meter, so you don’t have to worry about condensation & dust scratch problems. The meter is powered by either 4pcs AAA batteries or a 5V adaptor. It is suggested to use an adaptor when doing long-time monitoring since the built-in fan is high power consumption. It could be your best tool for a greenhouse or other high-humidity, harsh, and dusty environment.

The 87601 AZ Wet & Dry Bulb Hygrometer can do auto data recording for a long time monitoring up to 8000 records. It could link with the personal computer via a USB cable to capture online or stored data. Users can retrieve files, save the data for further analysis, check record statistics, etc. The sampling rate and real-time clock setting should be done through the meter keypad directly.

Specifications

Model 87601
Temperature Range 5~50℃
Temperature Resolution 0.1℃, 0.1℉
Temperature Accuracy ±0.6℃
Humidity Range 0.1~99.9% RH
Humidity Resolution 0.1% RH
Humidity Accuracy ±3%RH (at 25℃ 10~100%RH); others ±5%RH
Response Time 120 Seconds Typical
LCD Size 40(L) * 25(W) mm
Memory 8000 points
PC Download YES
Operating Temperature 5~50℃
Operating RH% Humidity <100%
Storage Temperature 0~50℃
Storage RH% Humidity <80%
Water Tank Refill Time Every Two Weeks
Meter Size 178.5(L) * 48.4(W) * 24.7(H) mm
Weight ~250g
Battery AAA * 4 PCS or 5V Adaptor
Standard Package Meter, Water Tank, Batteries, Manual,
Paper Box, Cotton Thread
Optional Accessory 5V Universal Adaptor, USB software cable & CD
