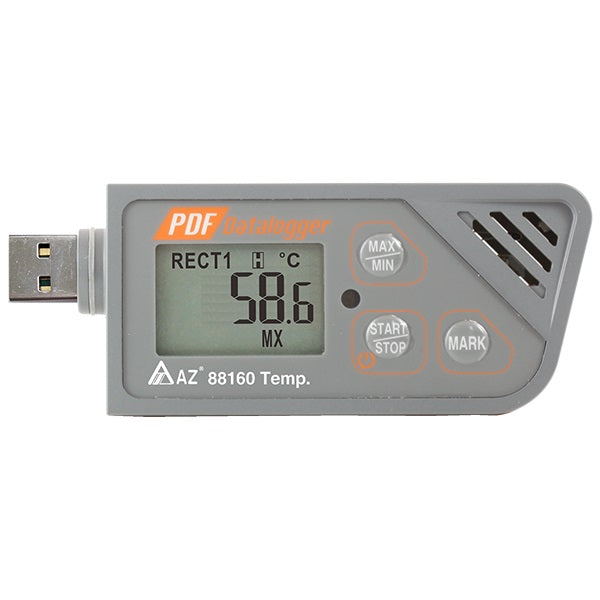

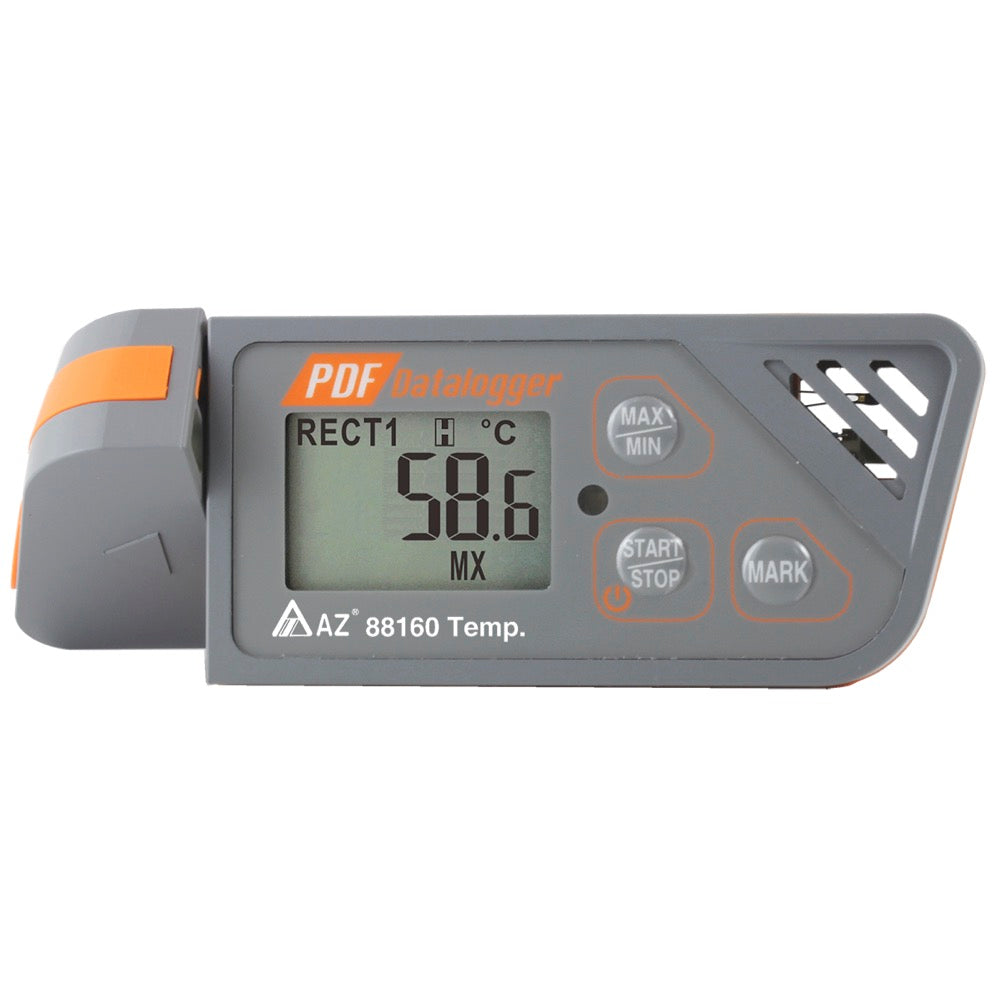

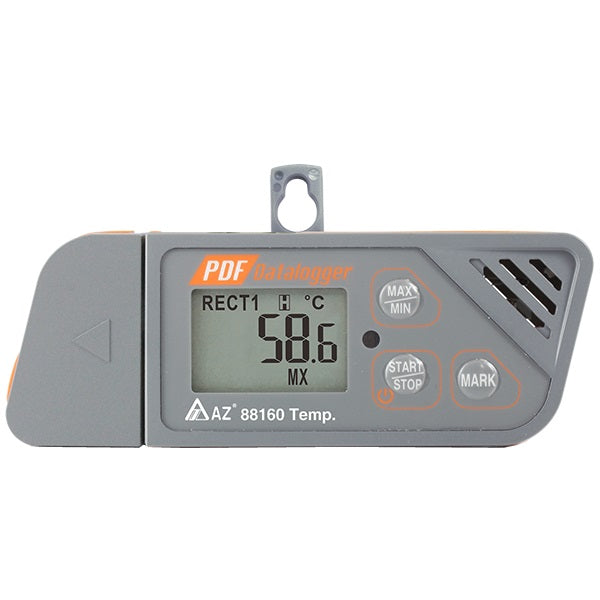

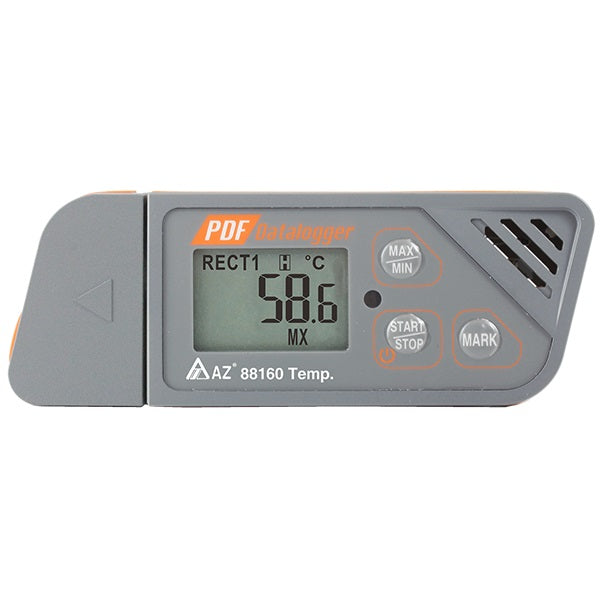

This data logger is a plug & play device, meaning that no logger-specific PC software and USB drivers are required. This logger is completely user re-programmable: 6 languages, sampling interval, start delay, alarm delay, unit, alarm range, alarm type, password, and user name. The dual colour LEDs are used as status and alarm indicators.
Highlighted Features
-
Plug & Play temperature data logger with USB 2.0 connector
-
Software & driver are not required for any operation
-
Automatically generate a PDF and Excel report while plugged into a computer
-
High-accuracy thermistor sensor
-
Completely programmable by users for maximum flexibility includes: 6 languages, sampling interval, start delay, alarm delay, unit, alarm range, alarm type, password, and user name
-
Compact, light, and IP67
-
Big LCD provides an excellent viewing experience
-
Count key to review max. & min value of logged data
-
Dual color LED provides instant status indicator: REC and High/Low temperature
-
Large memory capacity, 48000 readings.
-
Powered by 2pcs CR2032 battery, easy replacement.
-
Mark key to providing 8 marking during the transition period
-
The PDF file contains a summary, graph, and detailed data list
- EN12830 and RoHS compliance
Applications
The 88160 AZ USB Temperature Data Logger can measure and record the Temperature value. The 88160 AZ Data logger can export the report with Excel or PDF format depended on the User’s purpose.
The 88160 AZ USB Temperature Logger can plug into PC easily, which would not need to install any software in advance. Welcome to learn more about the 88160 AZ Logger operation procedures from the following YouTube in the end of page.
The 88160 AZ Temperature Data Logger could be used for the warehouse, work space, laboratories, basement, wine cellar, aircraft cabins, refrigerate truck (cold chain logistic), storage containers in food transport/logistic/processing, incubation process, hatcheries, art galleries, museum, HVAC field or other controlled environment.
It can be met with the formal tracking purpose of the transportation especially for Pharmaceutical industry, hospital, lab, factory or other industrial environment. It could be best tool for quality control requirement.
The 88160 AZ Temperature Data Recorder was designed and manufactured by AZ Instrument, a well-experienced manufacturer for Environmental Measuring instruments.
Specifications
| Model | 88160 |
| Temperature Range | NTC Thermistor, -30~70°C, -22~158°F |
| Temperature Resolution | 0.1°C , 0.1°F |
| Temperature Accuracy | ±0.5°C |
| Sampling Points | 48000 readings |
| Operating Temperature | -30~70°C (Logging Status); Room Temp. (PC Mode) |
| Operating RH% | Humidity < 90% |
| Storage Temperature | -40~85°C |
| Storage RH% | Humidity < 90% |
| Battery | 2PCS 3.0V CR2032, 3 months life times |
| Sampling Interval | 30 seconds, 5, 10, 30, 60, 90, 120 minutes |
| Start Delay | 0, 5, 30, 45, 60, 90, 120 minutes and 24 hours |
| Alarm Range | Programmable from -30 to 70°C |
| Alarm Delay | 0, 5, 30, 45, 60, 90, 120 minutes |
| Alarm Type | Single Event, Cumulative, Disable |
| Operation Keys | 3 Keys (Start/Stop Key & Mark Key & Count Key) |
| LED Indicator | REC, High / Low Alarm |
| Standard Package | Logger, Batteries, Manual, Paper Box |
| Weight | -50g |
| Meter Size | 110(L) * 45(W) * 17(H) mm |
