This data logger is a plug & play device, meaning that no logger-specific PC software and USB drivers are required. This logger is completely user re-programmable: 6 languages, sampling interval, start delay, alarm delay, unit, alarm range, alarm type, password, and user name. The dual colour LEDs are used as status and alarm indicators.
Highlighted Features
-
Plug & Play temperature data logger with USB 2.0 connector
- Software & driver are not required for any operation
-
Automatically generate a PDF and Excel report while plugged into a computer
-
High-accuracy thermistor sensor
-
Completely programmable by users for maximum flexibility includes: 6 languages, sampling interval, start delay, alarm delay, unit, alarm range, alarm type, password, and user name
-
Compact, light, and IP 67
-
Big LCD provides an excellent viewing experience
-
Count key to review max. & min value of logged data
-
Dual color LED provides instant status indicator: REC and High/Low temperature
-
Large memory capacity, 48000 readings.
-
Powered by 2 pcs CR2032 battery, easy replacement.
-
Mark key to providing 8 marking during the transition period
-
The PDF file contains a summary, graph, and detailed data list
-
EN12830 and RoHS compliance
- An excellent tool as the temperature USB data acquisition device
Applications
The 88161 AZ device could attach the external temperature probe, which could insert into the container or other measuring object.
The 88161 AZ USB Temperature Data Logging Devices can show the dual temperature values, including the air temperature and the logger can export the report in Excel or PDF format.
The 88161 AZ USB temperature logger can plug into a PC easily, which would not need to install any software in advance. Welcome to learn more about the 88161 AZ logger operation procedures from the following YouTube link.
The 88161 AZ temperature Data Logger could be used for the warehouse, workspace, laboratories, basement, wine cellar, aircraft cabins, refrigerate truck (cold chain logistic), storage containers in food transport/logistic/processing, incubation process, hatcheries, art galleries, museum, HVAC field or other controlled environments.
It can be met with the formal tracking purpose of transportation, especially for the Pharmaceutical industry, hospitals, labs, factories, or other industrial environments. It could be the best tool for quality control requirements.
Specifications
Model | 88161 |
Temperature Range | NTC Thermistor, -30~70℃, -22~158℉ |
Temperature Resolution | 0.1℃, 0.1℉ |
Temperature Accuracy | ±0.5℃ |
External temperature Range | NTC Thermistor,-30~70℃, -22~158℉ |
External temperature Resolution | 0.1℃, 0.1℉ |
External temperature Accuracy | ±0.5℃ |
Sampling Points | 24000 Int. and 24000 Ext. readings |
Operating Temperature | -30℃~70℃ (Logging Status); Room Temp. (PC Mode) |
Operating RH% | Humidity <90% |
Storage Temperature | -40~85℃ |
Storage RH% | >Humidity <90% |
Battery | 2PCS 3.0V CR2032, 3 months life times |
Sampling Interval | 30 seconds, 5, 10, 30, 60, 90, 120 minutes |
Start Delay | 0, 5, 30, 45, 60, 90, 120 minutes and 24 hours |
Alarm Range | Programmable from -30 to 70℃ |
Alarm Delay | 0, 5, 30, 45, 60, 90, 120 minutes |
Alarm Type | Single Event, Cumulative, Disable |
Operation Keys | 3 Keys (Start/Stop Key & Mark Key & Count Key) |
LED Indicator | REC, High / Low Alarm |
Standard Package | Logger, Batteries, Manual, Paper Box |

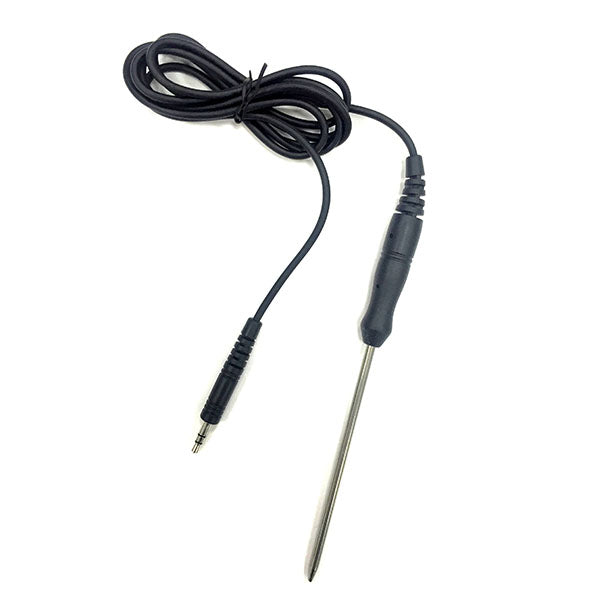

Optional Accessory | VZ87P6AZ1 or VZ87P6AZ2 external temperature probe (for 88161 only) |
Weight | ~50g |
Meter Size | 110(L) * 45(W) * 17(H) mm |
