AZ Instrument Corp.
Temp Waterproof RTD Thermometer
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

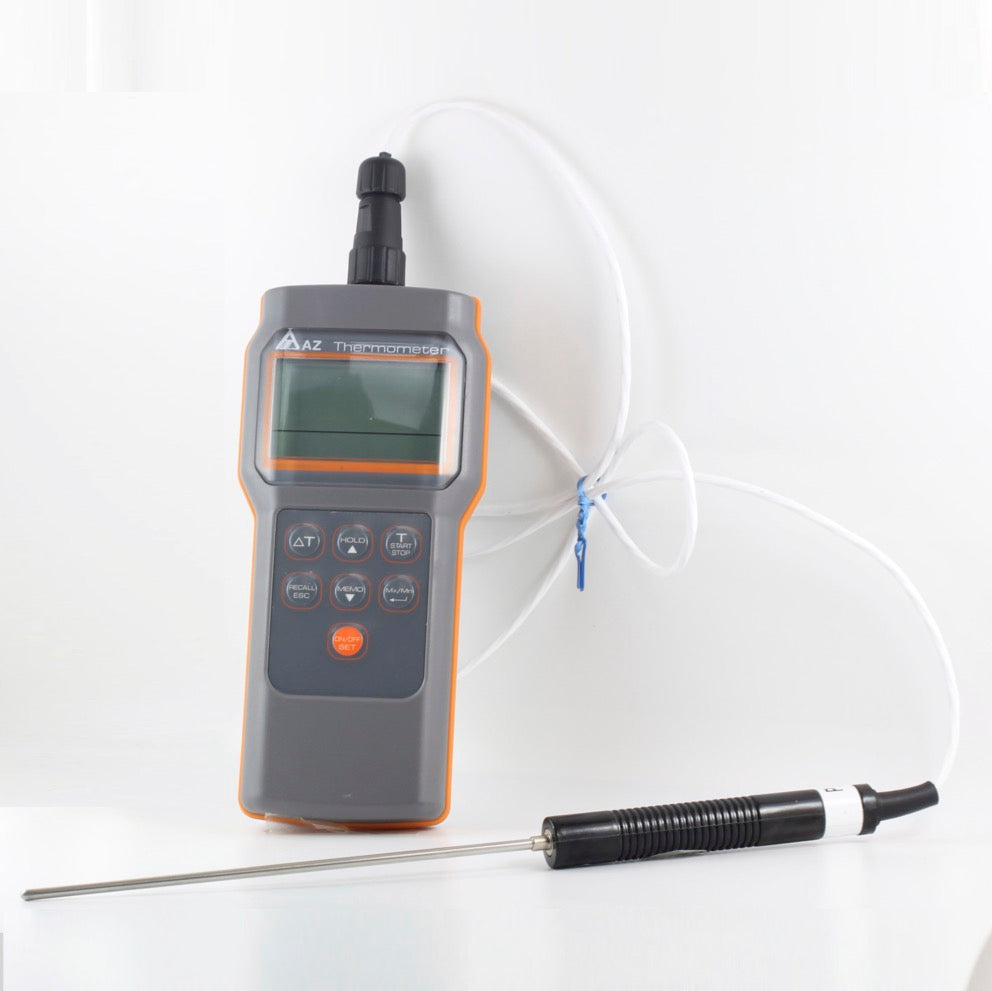

This device has a rigid housing design and a very accurate Pt100 probe. This device has a high level of accuracy ±0.15°C and a resolution of 0.01°C for the full range. The device has a unique plug & play pre-calibrated Pt100 IP67 probe. HACCP principle can be followed to check food safety and use a Green/Red dual colour backlight to indicate temperature hazards. Only one touch is required to display temperature change from baseline.
Highlighted Features
-
Rigid housing design and the most accurate Pt100 probe
-
High accuracy ±0.15℃ & 0.01 ℃resolution for full range
-
Unique plug & play pre-calibrated Pt100 IP67 probe
-
2 times data updating in 1 second time interval
-
Complete set IP67 waterproof and washable in a washing machine
-
Follow HACCP principles to check food safety
-
Green/Red dual color backlight to indicate temperature hazards
-
Countdown timer function, Hold function, and Non-sleep mode included
-
One touch to display temperature change from baseline
-
Super big LCD for easy reading
-
Max./Min. reading display
-
Temperature high alarm threshold programmable
- 99 points data records with review
Applications
The Portable 8822 AZ IP67 waterproof RTD Meter can measure the temperature from -100~300℃. Its RTD Pt100 temperature probe could response quickly and show the data in 1 second time interval.
The complete set IP 67 waterproof function of 8822 AZ Temperature Meter could let user wash by hand or washing machine. The 8822 AZ RTD Thermometer also manufacture by following the HACCP principle to check food safety. So it could be your best tool as the kitchen thermometer or other food processing industry. It has the 99 points data records with review function, which could help user to monitor and track during the measurement.

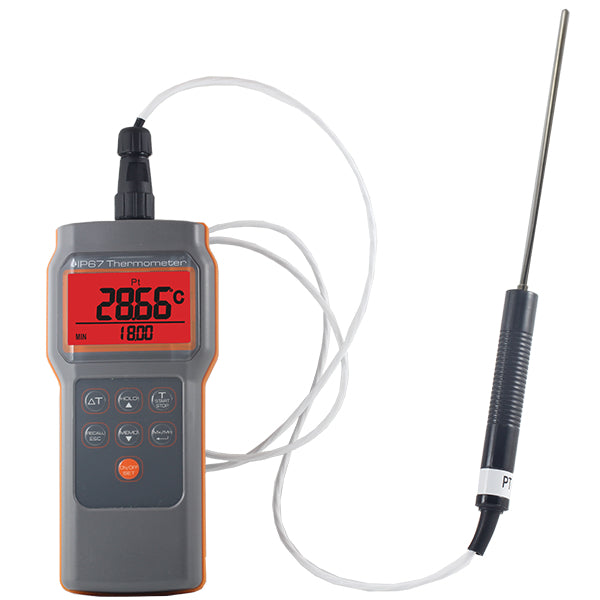

The 8822 AZ Instrument with Pt 100 temperature probe, it has the green/red dual color backlight to indicate temperature hazards. User could check the temperature change easily.
Specifications
| Model | 8822 |
| Measure Range | -100.00~300.00℃ (-148.00~572.00°F) |
| Temperature Resolution | 0.01℃, 0.01℉ |
| Temperature Accuracy | ±0.15℃ |
| IP rating | IP67 |
| Temperature Response Time | 3 mins Typical |
| LCD Update Time | Every Second |
| LCD Size | 54(L) * 32.5(W) mm |
| Probe Size | Length: 150 mm, Diameter: 3.2 mm Handle Length: 100 mm, Cable Length: 1100 mm |
| Probe Weight | ~50g |
| Operating Temperature | 10~35℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -20~50℃ |
| Storage RH% | Humidity ＜90% |
| Meter Size | 169(L) * 78.3(W) * 34.4(H) mm |
| Weight | ~200g |
| Battery | AAA Battery * 6 PCS |
| Standard Package | Meter, RTD (Pt) Probe, Stainless Holder, Battery, Manual, Hard Carry Case |
| Optional Accessory | Custom Made RTD Probes are available upon request |
