External Temp Bluetooth Data Logger
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
External Temp Bluetooth Data Logger
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa
This data logger can be set up and data can be downloaded wirelessly through advanced BLE 4.0 technology, which also makes this data logger cost-effective as temperature data can be collected within seconds. This data logger is perfect for temperature mapping. PDF reports containing data summary, graphs as well as detailed data can be generated as well as sent out through the iOS and Android apps. This logger has a big LCD and dual colour LED status and alarm indicators.
Highlighted Features
- Programming logger & download data wireless through advanced Bluetooth 4.0 technology
-
Perfect for 2-channel temperature mapping
-
Saving your cost by collecting and recording data in seconds
-
Free iOS & Android APP are provided for smart devices
-
Please search for “Nice Logger” in the APP store
-
Generate and send out PDF reports through APP
-
The report contains a data summary, graph, and detailed data
-
Big LCD provides real-time data every 5 seconds
- Dual-colour LEDs are used as status and alarm indicators
-
2 kinds of the external probe are available upon the choice
-
Excellent tool to record temperatures easily
-
Best temperature monitoring system
- Check the Max & Min value of all temperature history
Applications

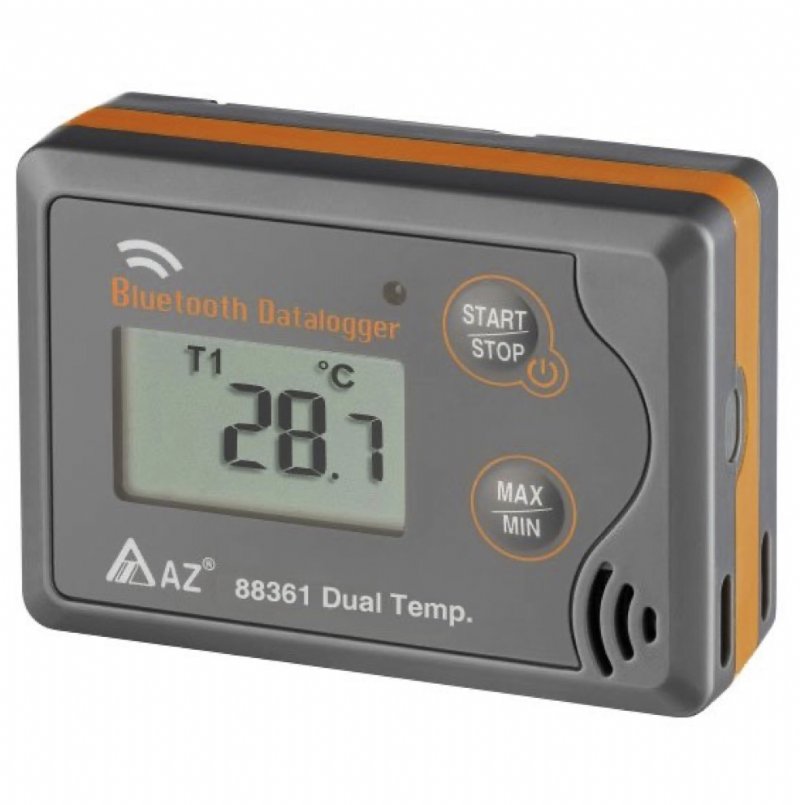

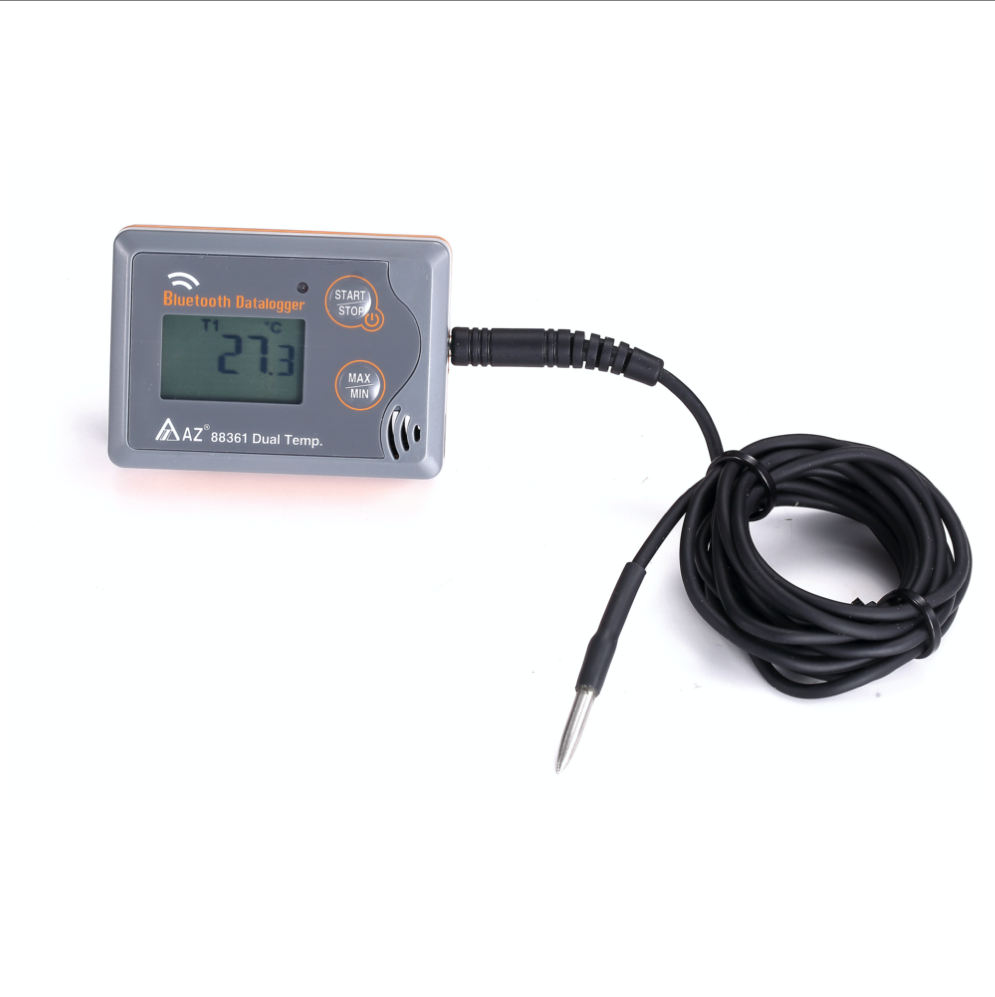

The 88361 AZ Bluetooth Data Logger can measure and record In/Out dual channel Temperature values throughout the entire duration of the logging period. This data logger is equipped with Bluetooth communication for programming purpose, and its wireless function could be helpful to proceed with remote data logging works. A free download Bluetooth iOS and Android APP is available. The measurement report output a PDF file and a csv file generated by APP “Nice Logger”.
The 88361 AZ Bluetooth 2 Channel Temperature Recorder could be used for the warehouse, work space, laboratories, basement, wine cellar, aircraft cabins, refrigerate truck (cold chain logistic), storage containers in food transport/ logistic / processing, incubation process, hatcheries, art galleries, museum, HVAC field or other controlled environment. It can be met with the formal tracking purpose of the transportation especially for Pharmaceutical industry, hospital, lab, factory or other industrial environment. It could be best tool for quality control requirement.
Specification
| Model | 88361 |
| Temperature Range | NTC Thermistor, -30~70℃, -22~158℉ |
| Temperature Resolution | 0.1℃, 0.1℉ |
| Temperature Accuracy | ±0.5℃ |
| Ext. Temperature Range | NTC Thermistor, -30~70℃, -22~158℉ |
| Ext. Temperature Resolution | 0.1℃, 0.1℉ |
| Ext. Temperature Accuracy | ±0.5℃ |
| Sampling Points | 24K:Int, 24K:Ext |
| Meter Size | 70(L) * 50(W) * 23(H) mm |
| LCD Size | 30(L) * 18(W) mm |
| Operating Temperature | -30~70℃ |
| Operating RH% | Humidity ＜90% |
| Storage Temperature | -40~85℃ |
| Storage RH% | Humidity ＜90% |
| Weight | ~70g |
| Battery | 1PC 3.0V CR2, 3 months lifetimes |
| Sampling Interval | 10 seconds to 120 minutes |
| Start Delay | 0~1440 minutes, 10 mins/step |
| Alarm Range | Programmable from -30 to 70℃ |
| Alarm Delay | 0~720 minutes, 5 mins/step |
| Alarm Type | Single Event, Cumulative, Disable |
| Operation Keys | 2 Keys (Start/Stop Key & Max/Min Key) |
| LED Indicator | REC, High /Low Alarm |
| Standard Package | Logger, Battery, Manual, Paper Box |

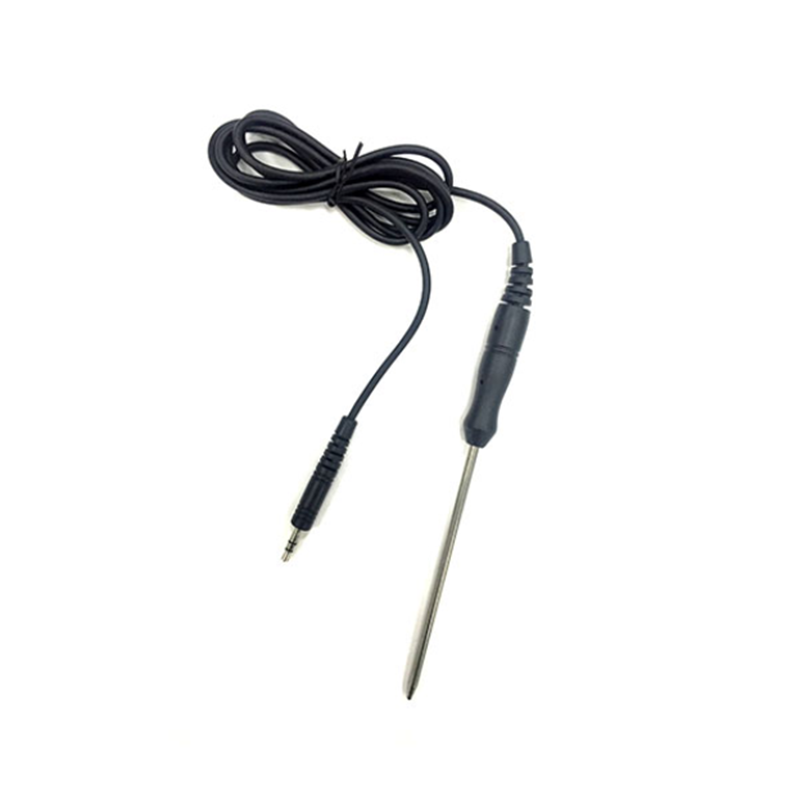

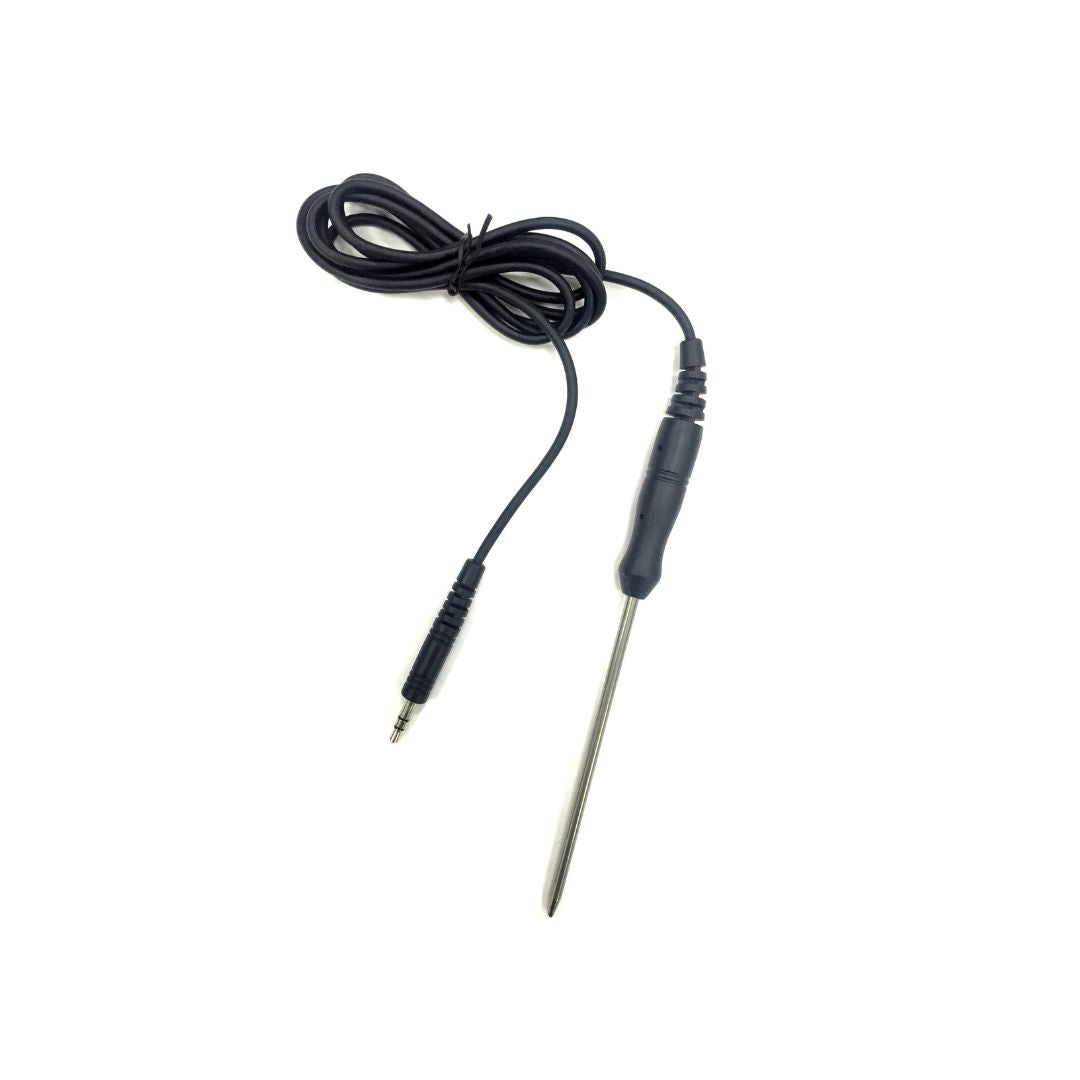

| Optional Accessory | VZ87P6AZ1 or VZ87P6AZ2 external temperature probe (for 88361 only) |
