AZ Instrument Corp.

Temp/RH IR Hygrometer

Sale priceR 5,465.60
SKU: VZ8857BZ

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

Temp/RH IR Hygrometer

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

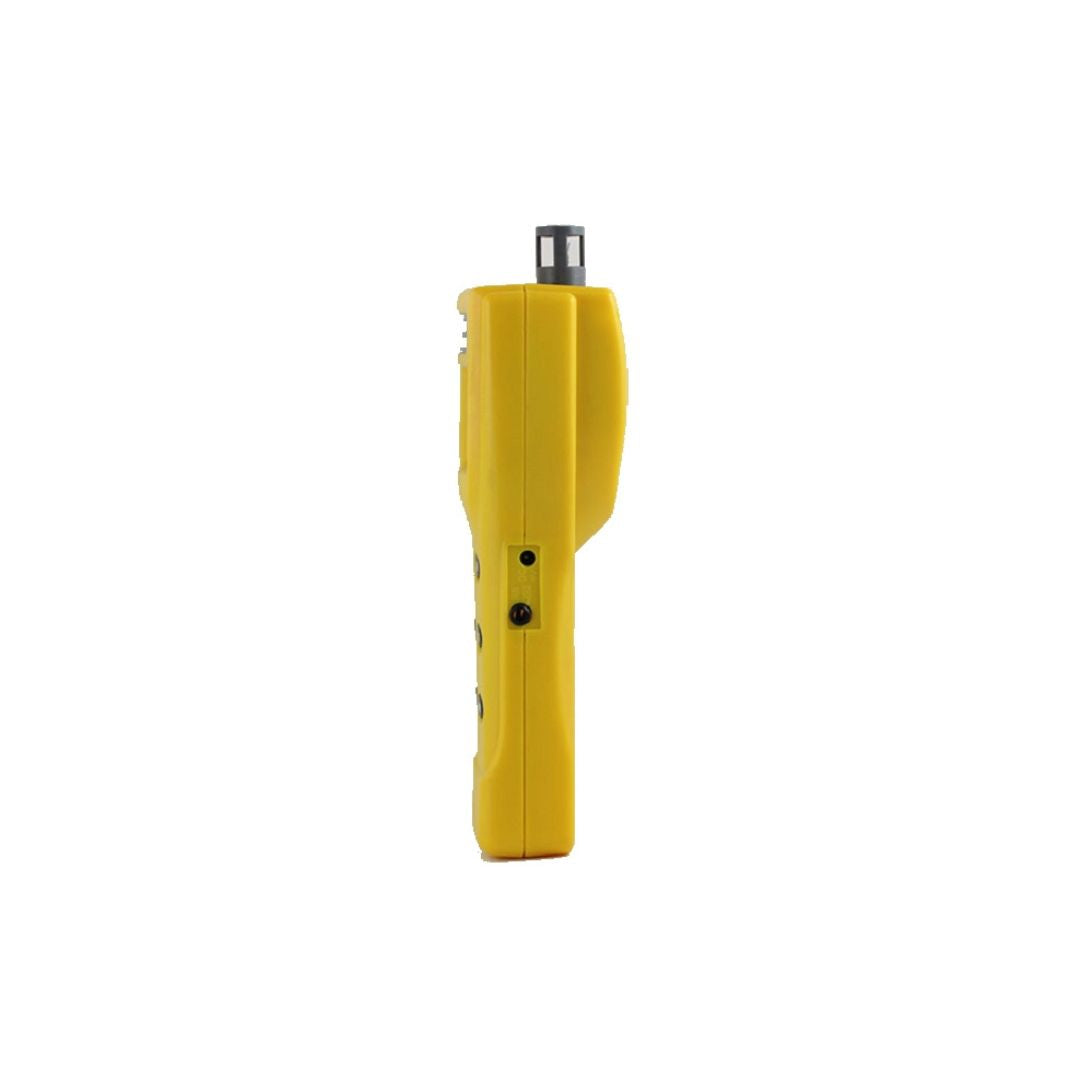

The AZ 8857 IR Hygrometer can measure the air temperature, surface temperature, humidity, wet bulb temperature, dew point temperature, and temperature differential measurement, and has a backlight function allowing the user to operate the device in a dark area with ease.

Highlighted Features

  • The most popular IR + Psychrometer two in one meter
  • Convenient to carry and store, especially for the HVAC business
  • Digital sling psychrometer calculates Wet Bulb, Dew Point in seconds, and T1-T2 (Surface to Dew Point).
  • Relative humidity measure ranges from 0-100% by rotronic sensor
  • Laser infrared thermometer measures Temperature range from -40~500℃
  • Quick and accurate IR response time: 500 ms
  • IR emissivity value adjustable 0.3~1.0
  • A built-in laser beam (670nm) for targeting
  • Backlight function
  • Environment thermometer measure from -20℃ to 50℃
  • Protect sensor by specially designed gear damper device

Applications

The 8857 AZ Thermo Humidity Meter can measure the air temperature, surface temperature, humidity, wet bulb temperature, dew point temperature, and temperature differential measurement. Its backlight function could let the user operate the meter in a dark area easily.

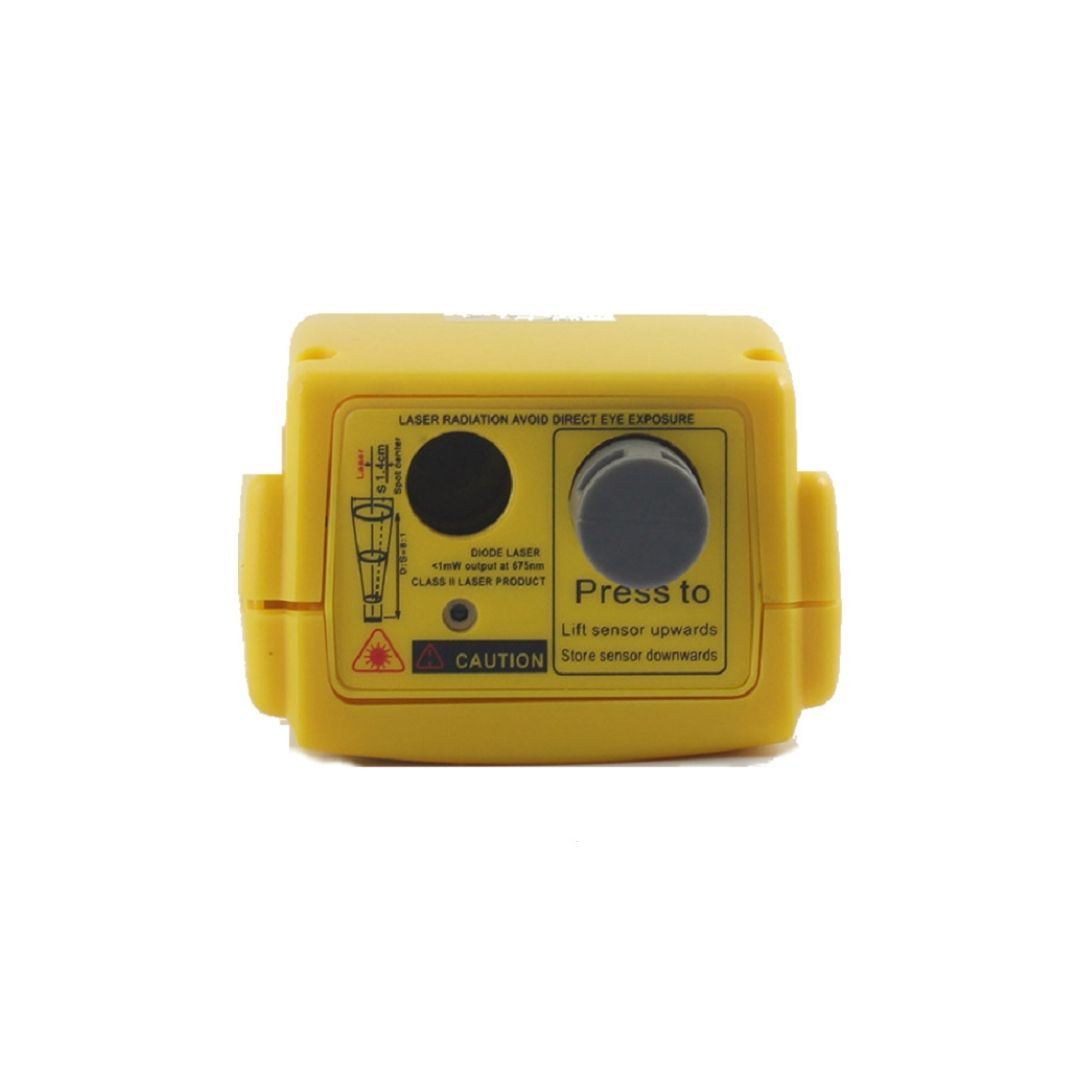

The sensor of the 8857 AZ Dew Point Temperature Meter is specially protected by a gear damper device. While the sensor is retracted, the meter will not work. The sensor designed auto detects the air temperature and humidity if it is not retracted.

The 8857 AZ Psychrometer is a microprocessor-based design. A must device for HVAC engineer use. No need to whirl the meter or refer to the chart. Easy to get the wet bulb, dew point, and surface temperature quickly. It also could be used as the best monitoring tool for the warehouse, workspace, laboratories, basement, wine cellar, or another controlled environment.

The 8857 AZ hygrometer IR Meter was designed and manufactured by AZ Instrument, a well-experienced manufacturer of Environmental Measuring instruments.

Specifications

Model 8857
IR Temperature Range -40~500℃
IR Temperature Resolution 0.1℃, 0.1℉
IR Temperature Accuracy (which is greater) ±2% or 2℃ at -20~200℃, others is ±3% or 3℃
Temperature Range -20~50℃
Temperature Resolution 0.1℃, 0.1℉
Temperature Accuracy ±0.6℃
Humidity Range 0.1%~99.9% RH
Humidity Resolution 0.1% RH
Humidity Accuracy ±3%RH (at 25℃. 10~90%RH, others ±5%RH)
Dew Pint Temperature Range -68~49.9℃
Wet Bulb Temperature Range -21.6~49.9℃
IR Repeatability ±1℃
Emissivity 0.3~1.0 adjustable
D:S Ratio 8:1
LCD Size 44 (L)*26 (W) mm
Operating Temperature 0~50℃
Operating RH% Humidity <90%
Storage Temperature -20~50℃
Storage RH% Humidity <90%
Meter Size 70 (L)*50 (W)*175 (T)mm
Weight ~140g
Battery AAA * 4 PCS
Standard Package Meter, Batteries, Manual, Carry Case
Optional Accessory USB Cable & Software Kit
