AZ Instrument Corp.
Temp/RH Anemometer
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Temp/RH Anemometer
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

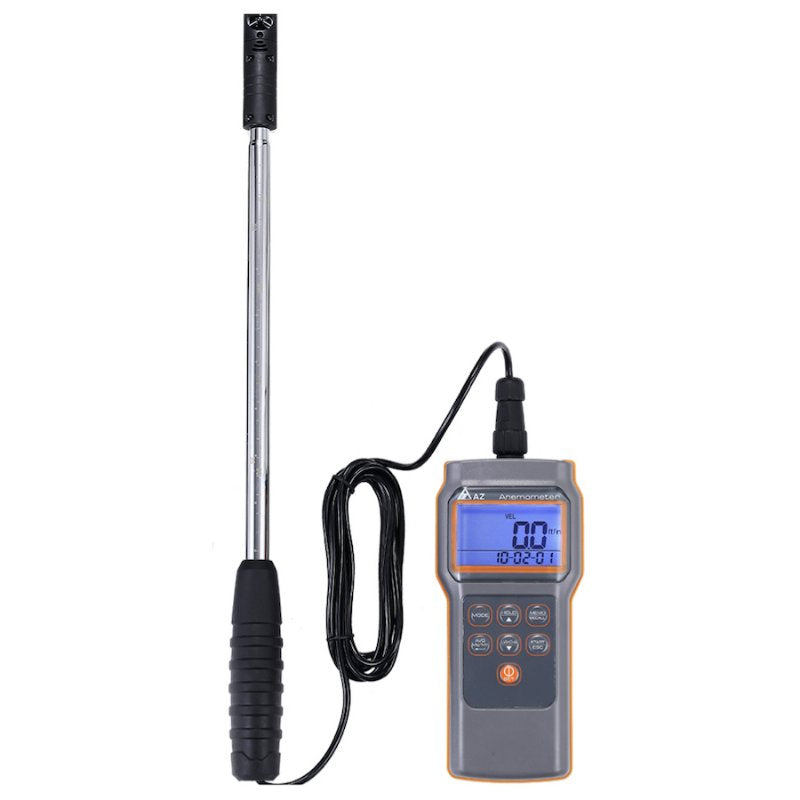

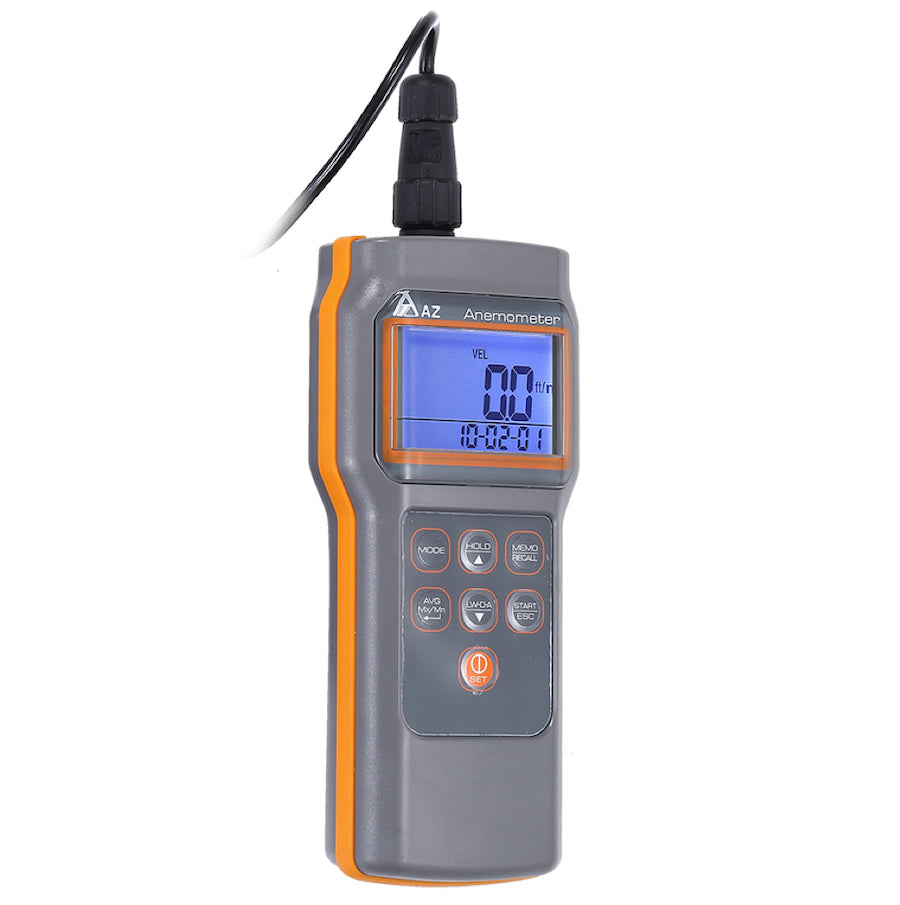

The 8905 AZ Thermal Anemometer is a handheld airflow meter that features an 18mm mini vane with an integrated temp. and humidity sensor, to measure low-speed winds with high accuracy, as well as a 1055mm vane for other measurement requirements.
Highlighted Features
-
Measures air velocity, volume, temperature, humidity, dew point & wet bulb temperature
-
18 mm mini vane probe with built-in temp. & humidity sensor
- 18 mm vane head with 1M long telescopic & scale marked tube
-
Plug & lock the mini vane probe connector
-
Wind speed metric and imperial units are selectable
-
99 single-point memories
-
Up to 12000 points auto data logging points
- Date & Time stamp (12-hour or 24-hour)
-
Max. / Min. / Avg. value, Hold function
-
Auto power off in 20 mins inactivity
-
Low battery indicator
-
Backlight for dark area operation
- PC interface for data download
-
Handheld size, easy to carry
-
Fast response & Accurate reading
- The hold function freezes current readings
-
Powered by 6 AAA batteries or a 9VDC adaptor
- An excellent tool as the wind meter
Applications
The portable 8905 AZ Wind Meter Anemometer can measure Air Speed, Air Velocity, Air Volume, Temp., Humidity, dew point and wet bulb temperature, which is the best choice as the wind speed monitoring device in HVAC (Heating, Ventilation, Refrigerating and Air Conditioning) or industrial related application.
The temperature and humidity sensors of 8905 AZ Thermal Anemometer are built in the external 18 mm mini, which could measure the low speed/velocity wind with high accuracy. The 8905 Hygrometer Anemometer has the 1055 mm extended van probe, which can insert to the high duct easily. The compact mini impeller is ideally designed for duct airflow. Duct temperature has no influence on airflow wind measurement.
The 8905 AZ Air Velocity Meter This anemometer is a micro processor based design. A must device for HVAC engineers use. No need to whirl the meter or refer to the chart, easy to get wet bulb & dew point quickly!
Specifications
Model | 8905 |
Wind Speed Range | 0.5~20 m/s |
Wind Speed Accuracy | ±(3% of reading+0.2 m/s) |
Air Temperature Range | -20~60℃ |
Air Temperature Resolution | 0.1℃, 0.1℉ |
Air Temperature Accuracy | ±0.6℃ |
Air RH% Range | 0.1%~99.9%RH |
Air RH% Resolution | 0.1%RH |
Air RH% Accuracy | ±3%RH (at 25℃ 10~90%RH, others ±5%RH) |
Temperature Response Time | 60 seconds (typical) |
Air RH% Response Time | 60 seconds (typical) |
LCD Update | Every second |
Wet Bulb Temp. Display | -20~59.9℃ |
Dew Point Temp. Display | -20~59.9℃ |
Air Volume Display | 0~99999 m3/minute |
Air Volume Resolution | 0.1 (0~9999.9) or 1 (10000~99999) |
LCD Size | 54(L) * 32.5(W) mm |
Operating Temperature | 0~50℃ |
Operating RH% | Humidity <80% |
Storage Temperature | -10~50℃ |
Storage RH% | Humidity <90% |
Meter Size | 169(L) * 78.3(W)* 34.4(H) mm |
Weight | ~200g |
Battery | AAA*6 PCS or 9V DC Adaptor |
Optional Accessory | Replacement Vane Probe |
Standard Package | Meter, Wind Probe, Batteries, Manual, Software Kit, Hard Carry Case |
