Temp/RH/CO2 Anemometer
BLE4.0 10cm vane airflow +Temp.
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

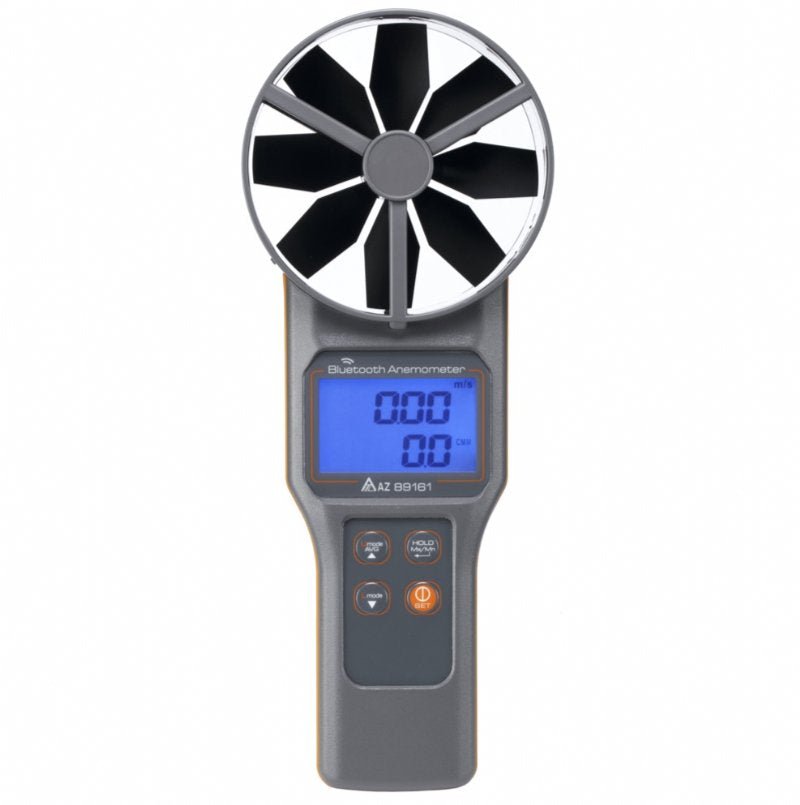

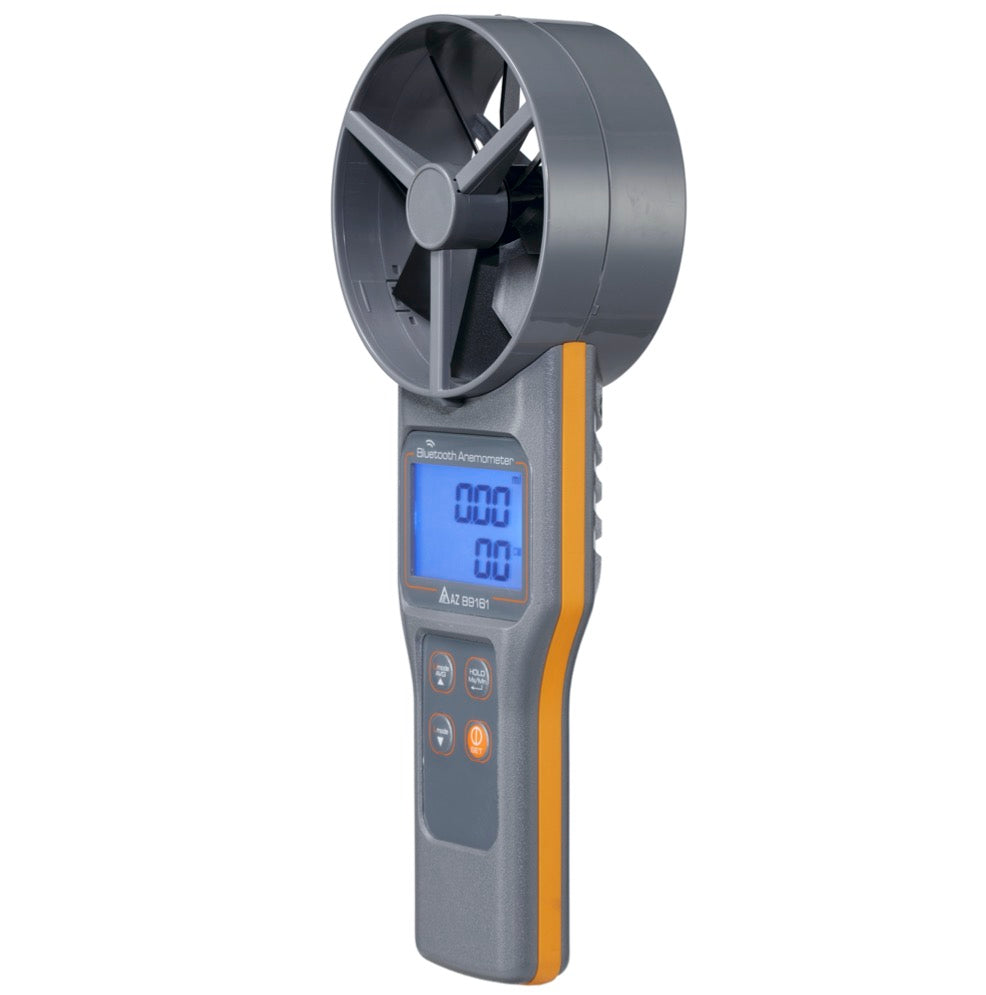

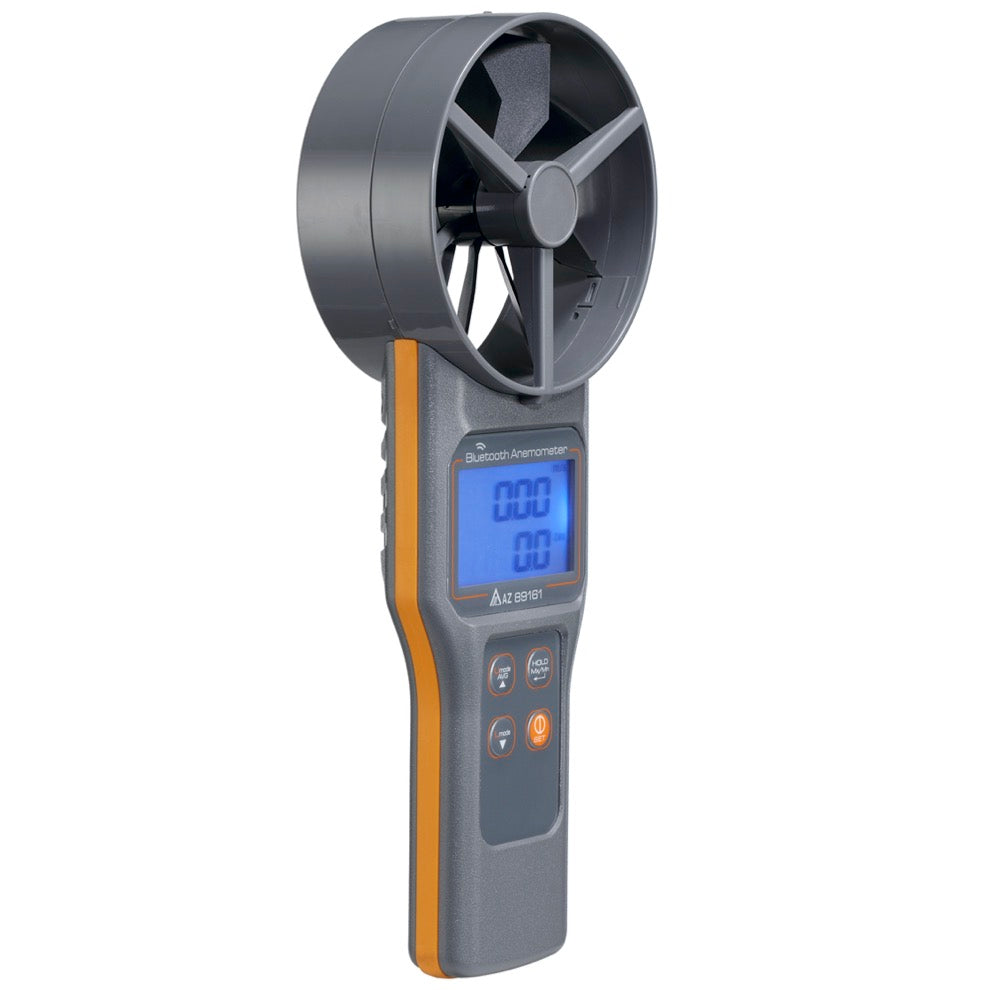

This device measures air velocity, volume, CO2, temperature, humidity, dew point & wet bulb temperature, the data is broadcasted every second to smart devices by using BLE 4.0 technology. Vane is 10cm in diameter with built-in NDIR waveguide technology CO2 sensor, temp. and humidity sensors, with an optional square or round, flow cone and extension stick. Unlimited points average auto calculation as well as time-weighted average auto calculation. The free app provides data recording, photographing, and filing.
Highlighted Features
- Measures air velocity, volume, temperature, humidity, dew point & wet bulb temperature, and CO2
- Broadcasting data every second to smart devices by using Bluetooth technology
- 10 cm diameter vane type with build-in temperature, humidity, and NDIR CO2 sensor
- Auto airflow cone recognize
- Optional square & round flow cone and extension stick
- Unlimited points average auto calculation
- Time-weighted average auto calculation
- Free APP provides data recording, photographing & filing
- Please search for “Nice Flow” from the APP stores
Applications
The 89161 AZ Bluetooth Thermometer Anemometer has a 10 cm diameter vane to measure the Air Speed, Air Velocity, Air Volume, Temp., which is the best choice as the wind speed monitoring device in HVAC (Heating, Ventilation, Air Conditioning, and Refrigerating) or an industrial related application.
The 89161 AZ Bluetooth Anemometer is very easy to use. It could export the data through Bluetooth 4.0 wireless technology to Users' smartphones via the “Nice Flow” APP.

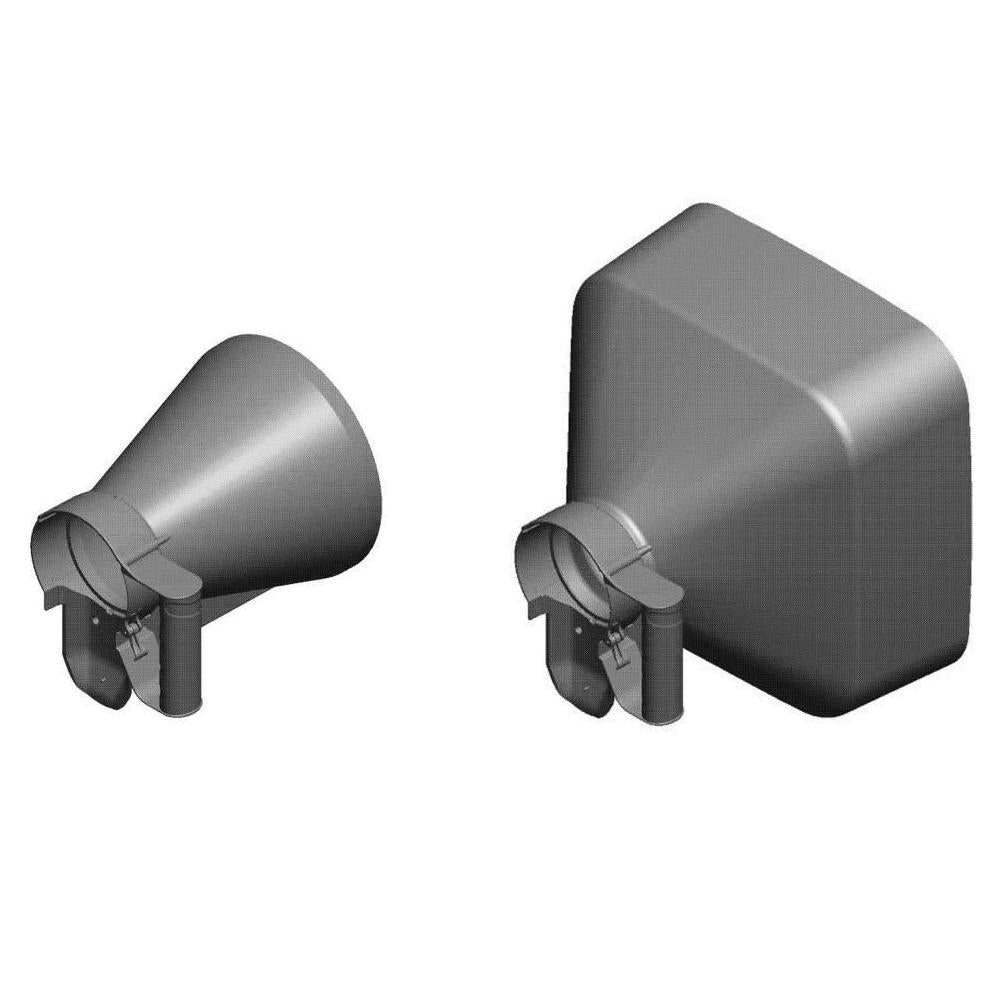

The 89161 AZ Bluetooth 4.0 Wind Speed Meter could attach to the specific airflow cone to measure the volume quickly. The user just needs to install the compatible airflow cone, the meter will recognize the area for air volume calculations automatically. The airflow cone set has a round and square size, which could be met with most applications. We also provide the cone extension stick that could be purchased, which could let users another way to take measurements in an efficient way without using a ladder.
The 89161 AZ 10cm Vane Temperature Anemometer was designed and manufactured by AZ Instrument, a well-experienced manufacturer of Environmental Measuring instruments.
Specifications
| Model | 89161 |
| Wind Speed Range | 0.20~30.00 m/s |
| Wind Speed Accuracy | ±(1.5% of reading+0.3 m/s) for under 20 m/s ±(3% of reading+0.3 m/s) for above 20 m/s |
| Air Temperature Range | -20~60℃ |
| Air Temperature Resolution | 0.1℃, 0.1℉ |
| Air Temperature Accuracy | ±0.6℃ |
| Temperature Response Time | 60 seconds (typical) |
| LCD Update | Every second |
| Air Volume Display (CMM) | 0~99999 m3/minute |
| Air Volume Resolution | 0.1 (0~9999.9) or 1 (10000~99999) |
| LCD Size | 54(L) * 32.5(W) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -10~50℃ |
| Storage RH% | Humidity ＜90% |
| Meter Size | 269(L)* 106(W) * 51(H) mm |
| Weight | ~200g |
| Battery | AAA*4 PCS |
| Standard Package | Meter, Batteries, Manual, Hard Carry Case |
