AZ Instrument Corp.

Digital Sound Level Meter

Sale priceR 4,435.20
SKU: VZ8922BZ

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:

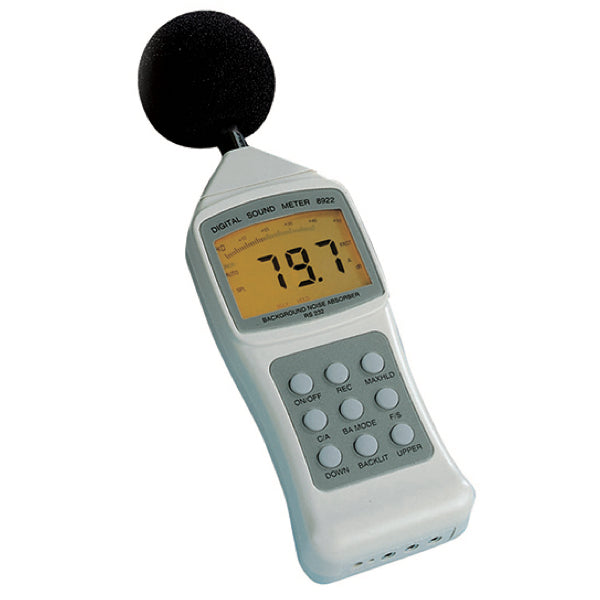

This affordable sound level meter has a large LCD display and a unique background noise absorber. It features a digital display and analog bar graph as well as auto/manual ranging and has 6 measurement ranges in 10 steps. This device also features max hold and fast/slow response mode and A/C weighting is selectable.

Highlighted Features

  • Meets IEC60651, type 2 class standard
  • Deluxe super large LCD display with affordable price
  • Easy to calibrate by using AZ 8930 sound calibrator
  • Unique background noise absorber
  • Features with digital display and analog bar graph
  • Auto/manual range, 6 measurement range in 10 steps
  • Max Hold and Fast/Slow response mode
  • A/C weighting is switchable
  • AC/DC analog output
  • USB Interface

Applications

The Professional 8922 AZ Sound Level Meter provides automatic or manual range in six measurement ranges from 30 to 130 dB. The unit meets ANSI S1.4 and IEC60651, type 2 class standards, and features 0.1 dB resolution.

A background noise absorber of 8922 AZ SLM permits users to measure sound levels accurately even in the presence of high background noise. And it has a backlight function, which could let users operate in dark areas.

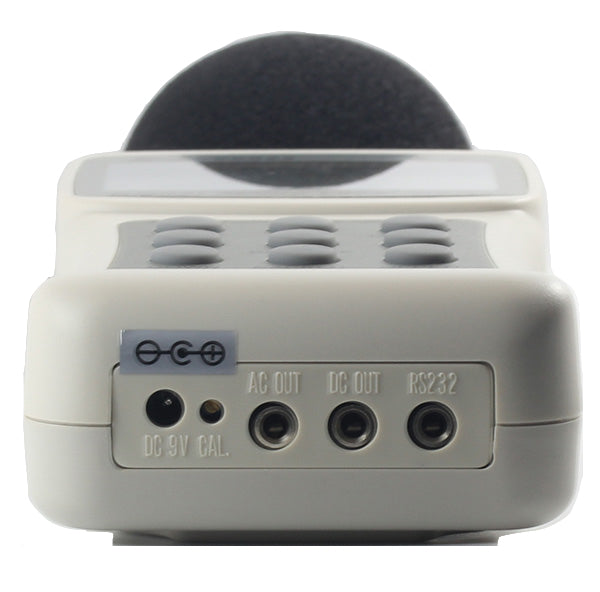

The 8922 AZ Sound Level Meter allows users to select between fast and slow response times as well as A&C weighting. Jacks on the meter provide both AZ and DC analog output.

The portable 8922 AZ Noise Level Meter can be used for acoustic (sound that travels through the air) measurements, which had been widely used in HVAC (Heating, Ventilation, and Air Conditioning) and industrial-related applications. A user could capture sound-level data via the USB interface.

Specifications

Model 8922
Measure Range A weight: 30~130 dB
C weight: 35~130 dB
Digital Display (6 ranges) 30~80, 40~90, 50~100, 60~110, 70~120, 80~130 dB
Digital Display Resolution 0.1 dB
Digital Updating Time 160 ms
Quasi-analog Bar (6 ranges) 30~80, 40~90, 50~100, 60~110, 70~120, 80~130 dB
Quasi-analog Resolution 1 dB
Bar Updating Time 40 ms
Accuracy at 94 dB, 1KHz ±1.5 dB
Analog Output AC 0.707 Vrms (at full scale): DC 10 mV/dB
Microphone Dia 6mm electric condenser microphone
Frequency Range 31.5 Hz~8 kHz
Battery Life Time 30 hours typical
Windscreen YES
LCD Size 62(L) * 42(W) mm
LCD Backlight YES
Operating Temperature 0~50℃
Operating RH% Humidity <80%
Storage Temperature -20~50℃
Storage RH% Humidity <90%
Meter Size 254(L) * 77(W) * 37(H) mm
Weight ~200g
Battery 9V Battery * 1 PC or 9V DC adaptor
Standard Package Meter, Battery, Manual, Carry Case
Optional Accessory Software CD & USB Cable
