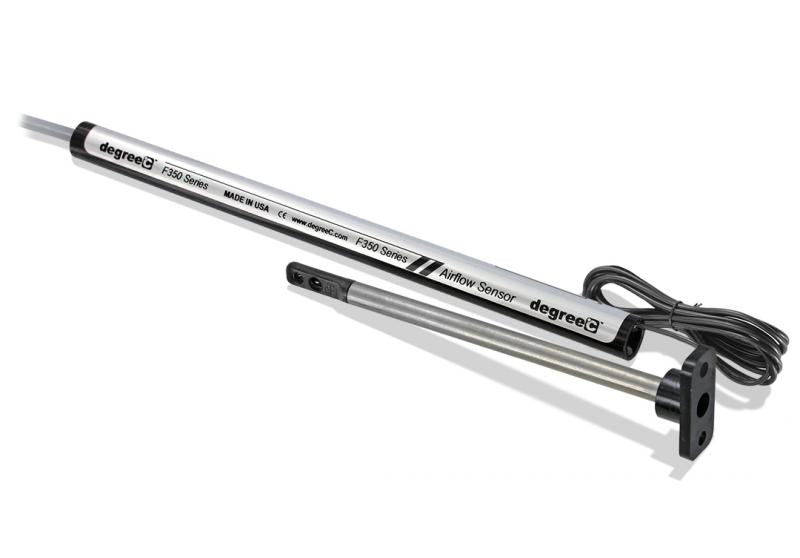

F350 series sensors are versatile, high-performance air velocity and air temperature sensors with the sensor element built remotely from sensor electronics. Designed for products where segregation of the sensing element and electronics is desirable, such as products involving high EMI sensitivity or extreme temperature, or those where the sensing area is too small for typical probe-style sensors.
The sensor requires analog input option during RX3000 or U30 system configuration and use of a S-FS-CVIA when using the H22-001 data logger. When using a U12 data logger, this sensor requires an 0-5 Vdc analog input cable (CABLE-ADAP5) and external power provided by an AC adapter (AC-SENS-1).
Documentation
Connection Instructions
Highlighted Features
- Enables users to measure air velocity (in ducts, e.g.), from which CFM can be computed
Specifications
| Specification | Value |
|---|---|
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Velocity Range | 0.15 to 1.0 m/s (30 to 200 fpm) |
| 0.5 to 10 m/s (100 to 2,000 fpm) | |
| 1.0 to 20 m/s (200 to 4,000 fpm) | |
| Response Time | 400ms |
| Storage Temperature | -40°C to 105°C (-40°F - 220°F) |
| Relative Humidity (non-condensing) | 5-95% |
| Supply Power Requirements | 4.5-15 VDC, 35mA nominal |
| Velocity Output | 0-5V |
| Temperature Output | 0-5V |
| Housing Construction | Polycarbonate (PC), UL94-V0 (head) |
| UL94-HB (housing) | |
| Plenum Rated Cable | 22 AWG |
| Environmental Protection | IP65 electronics, conformal coated |
| sensing element | |
| Accuracy | 0.15 to 1.0 m/s: ± (1% of reading + 0.05 m/s [10 fpm]) |
| 0.5 to 10 m/s: ± (4% of reading + 0.10 m/s [20 fpm]) | |
| 1.0 to 20 m/s: ± (5% of reading + 0.15 m/s [30 fpm]) | |
| Stainless Steel Wand | 127mm (5") |
| Sensor Head Height | 64mm (.25") |
| Housing Length | 196 mm [7.75"] |
| Cable Length from Housing to Sensor Head | 1m [3'] |
