Onset
Temp/Air Velocity Sensor
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Temp/Air Velocity Sensor
100 - 2,000 fpm
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

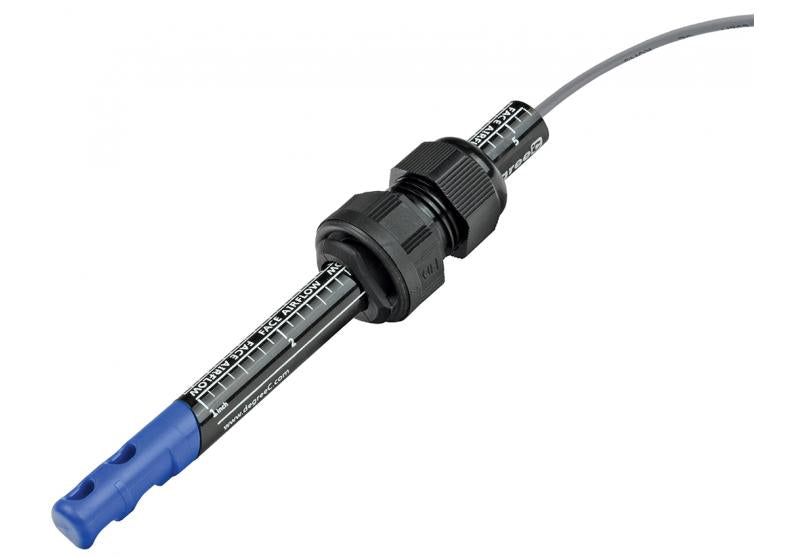

F300 series sensors are versatile, rugged, high-performance air velocity and air temperature sensors. Designed with conformal-coated electronics and sealed enclosures, F300 sensors are suitable for demanding applications, including those in corrosive or alkaline environments. With a robust, splash-proof design and UV-tolerant construction, F300s are built to handle a wide range of product and process-control air flow applications.
Documentation
Connection InstructionsHighlighted Features
- Enables users to measure air velocity (in ducts, e.g.), from which CFM can be computed
Specifications
| Specification | Value |
|---|---|
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Velocity Range | 0.15 to 1.0 m/s (30 to 200 fpm) |
| 0.5 to 10 m/s (100 to 2,000 fpm) | |
| 1.0 to 20 m/s (200 to 4,000 fpm) | |
| Response Time | 400ms |
| Storage Temperature | -40°C to 105°C (-40°F to 220°F) |
| Relative Humidity | 5-95% (non-condensing) |
| Supply Power Requirements | 4.5-15 VDC, 35mA nominal |
| Velocity Output | 0-5V |
| Temperature Output | 0-5V |
| Housing Construction | Polycarbonate (PC), UL94-V0 (head) |
| UL94-HB (housing) | |
| Plenum Rated Cable | 22 AWG |
| Environmental Protection | IP65 electronics, conformal coated |
| sensing element | |
| Accuracy | 0.15 to 1.0 m/s: ± (1% of reading + 0.05 m/s) |
| 0.5 to 10 m/s: ± (4% of reading + 0.10 m/s) | |
| 1.0 to 20 m/s: ± (5% of reading + 0.15 m/s) | |
| Sensor Length | 152mm [6.0”] |
| Max Insertion Depth | 110 mm [4.3”] |
Applications
In what environment does this sensor operate?
This sensor operates in an indoor environment.
What measurements does this sensor support?
The T-DCI-F300-1x3 sensor supports the following measurement: Air Velocity
