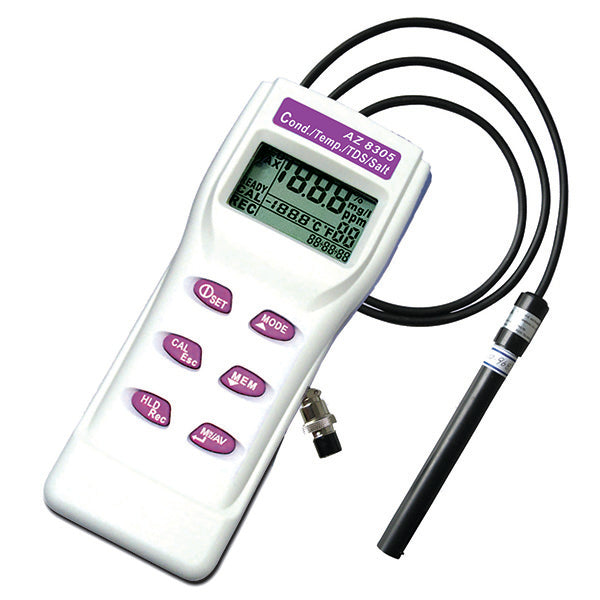

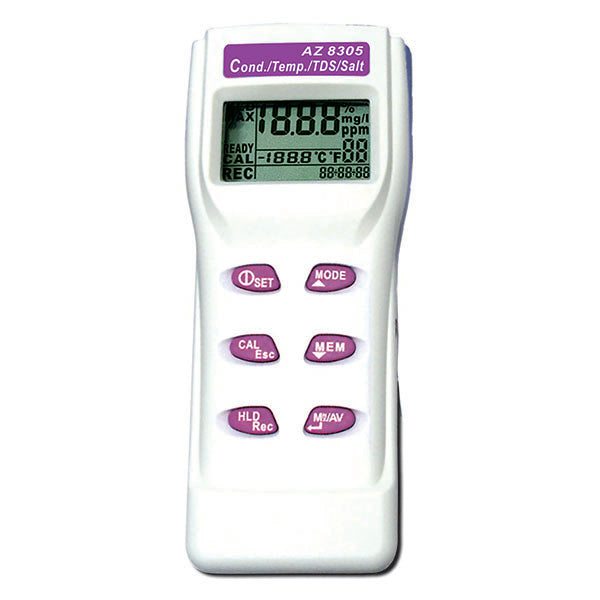

The 8305 AZ Portable Conductivity Meter can measure the Conductivity / TDS (Total Dissolved Solid) / Salinity and Temperature. It has a big LCD screen for multiple parameters display. Its Conductivity sensor electrode is highest durability with reliable measurements.
The 8305 AZ Portable Conductivity Meter is default at "auto-ranging" mode. Auto-ranging mode will determine and select the range which gives you the greatest resolution and accuracy.
Highlighted Features
-
Multi display Conductivity / TDS (Total Dissolved Solid) / Salinity and Temperature
-
Automatic temperature compensation (ATC)
-
Auto or manual Temperature compensation
-
Auto ranging or manual ranging
-
Cell constant, normalization Temperature switchable
-
Real time clock stamped with each memory
-
Conductivity to TDS conversion factor switchable
-
USB Cable for PC linkage
-
Auto powered off in 20 minutes after last key operation
- Sleep function is for battery power saving
Applications
The Conductivity, TDS and Salinity measuring function of 8305 AZ EC Meter all could proceed with the calibration easily by user. The 8305 AZ Portable Cond. & TDS & Salinity Meter could link to PC via USB cable to capture the on-line data, and display the Conductivity, TDS, Salinity readings with real-time output. User can retrieve file, save the data for operating data analysis, record statistics....versatile functions according different purposes.
The 8305 AZ Portable Cond. & TDS & Salinity Meter could be the best Water Quality tester for all professional measuring purposes, including the LAB, water treatment business, Aquaculture, Aqua farm, swimming pool or other related industry.
Specifications
Model | 8305 |
Conductivity Measuring Range | 0~19.99, 0~199.9, 0~1999 us/cm 0~19.99, 0~199.9 ms/cm |
Conductivity Accuracy | ±1% F.S ±1 digit |
Conductivity Resolution | 0.05% of Full Scale |
TDS Measuring Range | 0~19.99, 0~199.9, 0~1999 ppm 0~19.99, 0~199.9 ppt |
TDS Accuracy | ±1% F.S ±1 digit |
TDS Resolution | 0.05% of Full Scale |
Salinity Measuring Range | 0.0~70.0 ppt (KCl) |
Salinity Accuracy | ±1% F.S ±1 digit |
Salinity Resolution | 0.1 |
Temperature Measuring Range | 0~80.0℃ |
Temperature Accuracy | ±0.6℃(<50℃), other range ±1℃ |
Temperature Resolution | 0.1 |
TDS Factor | 0.4~1.00 |
Cell Constant | ~1.0 |
Manual/Auto | Included |
Temperature Coefficient | 0~10.0%/℃ |
Normalization Temperature | 15.0~30.0℃ (adjustable) |
LCD Size | 44(L) * 26(W) mm |
Operating Temperature | 0~50℃ |
Operating RH% | Humidity <80% |
Storage Temperature | 0~60℃ |
Storage RH% | Humidity <90% |
Sensor Life Time | >6 months (with good maintenance) |
Meter Size | 175(L) * 70(W) * 33(H) mm |
Weight | ~150g |
Battery | AAA *4 PCS |

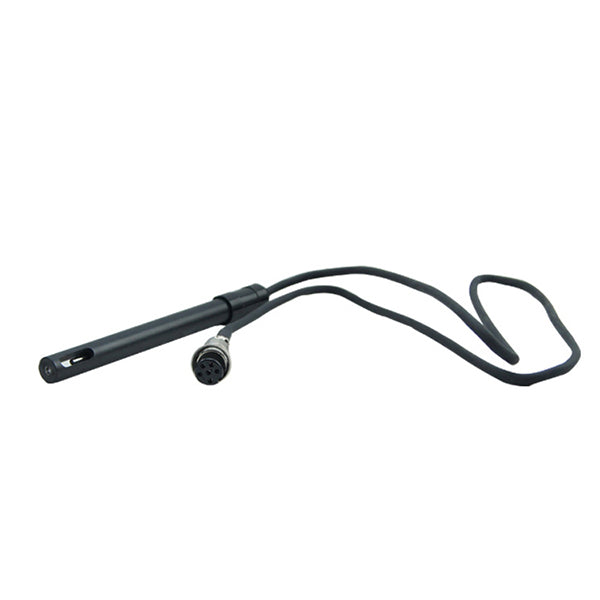

Standard Package | Meter, Batteries, Conductivity Probe, Manual, Carry Case |
Optional Accessory | USB Cable & Software |
