6m Contact Closure Pulse Input Sensor Adapter
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Quantity:
Pickup available at EUCA Head Office
Usually ready in 24 hours

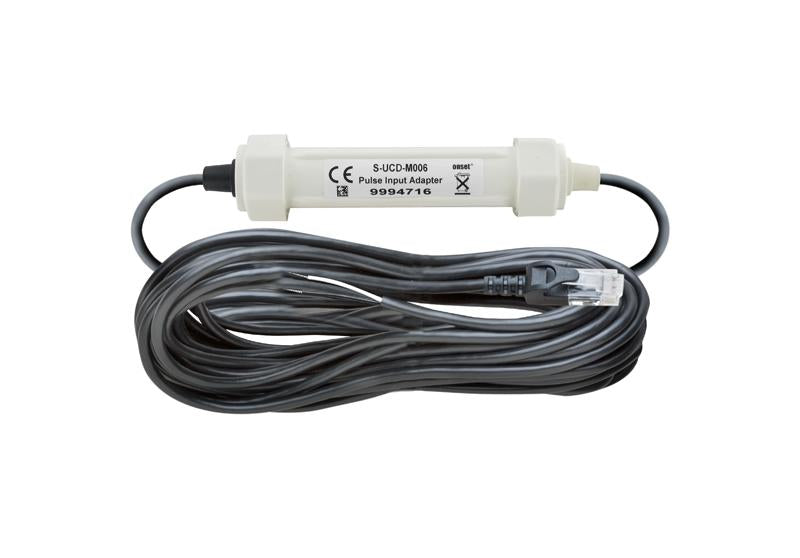

6m Contact Closure Pulse Input Sensor Adapter
EUCA Head Office
Pickup available, usually ready in 24 hours
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa
Connects sensors with pulse outputs to data loggers with smart-sensor inputs. Compatible with contact closures, such as tipping-bucket rain gauges or reed switches with a maximum input frequency of 2 Hz (2 pulses per second), and a preferred switch type of normally open. See how the pulse recorder works.
Documentation
Highlighted Features
- Plug-n-play adapter for pulse output sensors
- Automatically recognized by H21, H22, U30, and ZW data loggers
- Compatible with contact closures, such as tipping-bucket rain gauges or reed switches with a maximum input frequency of 2 Hz (2 pulses per second)
Applications
In what environment does this sensor operate?
This sensor operates in indoor and outdoor environments.
What measurements does this sensor support?
The S-UCD-M006 sensor supports the following measurements: Pulse Input and Water Flow
Specifications
| Specification | Detail |
|---|---|
| Maximum Input Frequency | 2 Hz (2 pulses per second) |
| Measurement Range | 0 – 65,533 pulses per logging interval |
| Resolution | 1 pulse |
| Lockout Time | 327 ms ± 10% |
| Recommended Input Type | Mechanical contact closure (example: reed switch in a tipping-bucket rain gauge) |
| Preferred Switch State | Active low input Normally open |
| Edge Detection | Falling edge, Schmitt Trigger buffer (logic levels: low ≤ 0.6 V, high ≥ 2.7 V) |
| Minimum Pulse Width | 1 ms |
| Input/Output Impedance | 100 KΩ |
| Open Circuit Input Voltage | 3.3 V |
| Maximum Input Voltage | 3.6 V |
| User Connection | 24 AWG wires, 2 leads: white(+), black(-) |
| Operating Temperature Range | -40° to 75°C (-40° to 167°F) |
| Overall Cable Length | 6.5 m (21 ft.) |
| Housing | Weatherproof PVC housing protects input adapter electronics |
| Housing Dimensions | 14 x 0.95 cm (5.5 x 0.375 in.) |
| Weight | 310 g (11 oz.) |
| Bits per Sample | 16 |
| Number of Data Channels | 1 |
| Measurement Averaging Option | No (reports the number of pulses over the logging interval) |
