EG4100 Current Transformer Sensor
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Variants:50 Amp - 0.39" opening
Quantity:
Pickup available at EUCA Head Office
Usually ready in 24 hours
EG4100 Current Transformer Sensor
50 Amp - 0.39" opening
EUCA Head Office
Pickup available, usually ready in 24 hours
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

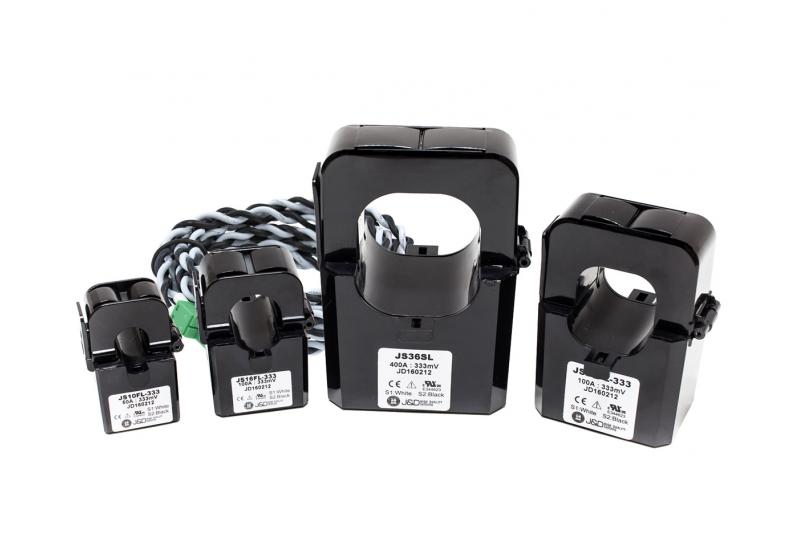

Split-core CTs from J&D Sensing offer a well-constructed hinged body and are accurate to +/-1% from 1%-100% of their stated current rating. The small interval for physical size options (10mm/0.39", 24mm/0.94", and 36mm/1.42") allow for a flexible installation. Each CT size has a hinge and clipping mechanism, making it easy to close the CT in tight situations.
Highlighted Features
- Multiple current ratings
- Small size, lightweight
- Simple installation
- Overvoltage protection circuit
- Pin-hinged at the pivot point
Specifications
Technical Specifications
- 333 mVrms at rated output
- Accurate within 1% from 1% to 100% of rated amperage
- Operates 50Hz/60Hz
- Maximum primary insulation up to 600 Vrms
- 8' twisted pair lead with CT connector
Table 1: Split-core CT Models and Descriptions
| Model | Description |
|---|---|
| T-EG-0390-0050 | 50 Amp Split-core CT (0.39" opening) |
| T-EG-0390-0075 | 75 Amp Split-core CT (0.39" opening) |
| T-EG-0630-0050 | 50 Amp Split-core CT (0.63" opening) |
| T-EG-0630-0100 | 100 Amp Split-core CT (0.63" opening) |
| T-EG-0940-0100 | 100 Amp Split-core CT (0.94" opening) |
| T-EG-0940-0200 | 200 Amp Split-core CT (0.94" opening) |
| T-EG-1420-0400 | 400 Amp Split-core CT (1.42" opening) |
| T-EG-1420-0600 | 600 Amp Split-core CT (1.42" opening) |
Table 2: Split-core CT Dimensions
| Model | A | B | C | D | E | Opening |
|---|---|---|---|---|---|---|
| T-EG-0390-XXXX | 1.59” | 0.91” | 0.93” | 1.05” | 0.57” | 0.39” |
| T-EG-0630-XXXX | 1.77” | 1.02” | 1.18” | 1.24” | 0.74” | 0.63” |
| T-EG-0940-XXXX | 2.56” | 1.48” | 1.77” | 1.33” | 0.83” | 0.94” |
| T-EG-1420-XXXX | 3.24” | 1.89” | 2.25” | 1.58” | 0.83” | 1.42” |
Applications
In what environment does this sensor operate?
This sensor operates in an indoor environment.
What measurements does this sensor support?
The T-EG sensor supports the following measurements: AC Current and Amps (A)
