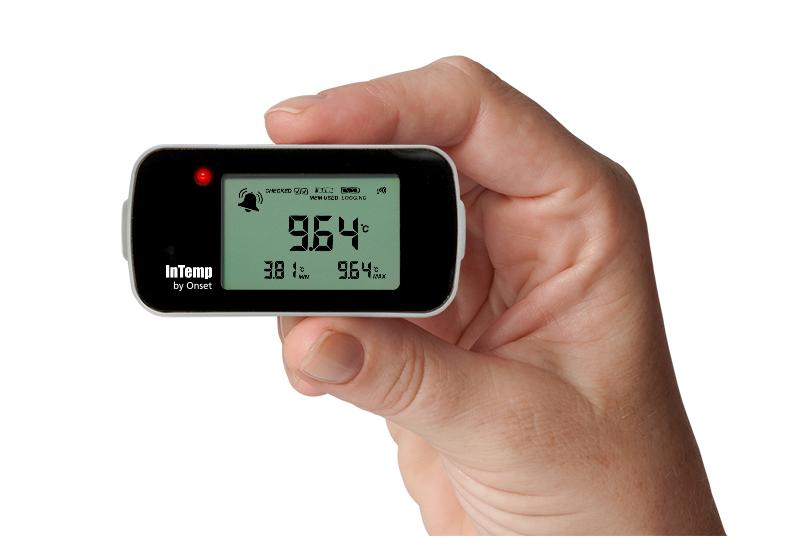

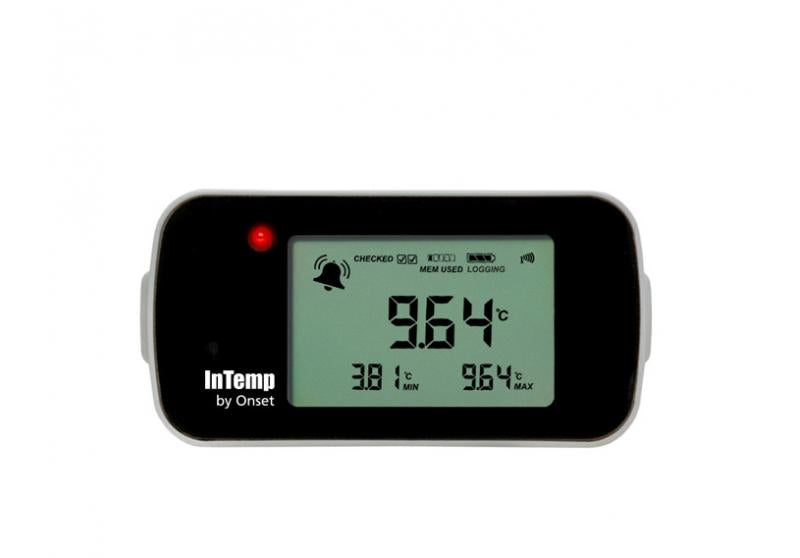

The InTemp ® CX403 data logger features an internal sensor for monitoring the ambient temperature. The logger communicates wirelessly via Bluetooth Low Energy to mobile devices. The CX403 features a built-in LCD display to view ambient temperature, advanced audible and visual alarm capabilities for notification of temperature excursions, and a NIST Certification of Calibration.

With the optional CX Gateway, you can get remote notifications of temperature excursions and automatically download data from loggers within range of the device. Learn more about the CX Gateway here.

Documentation

User Manual
 data sheet



Highlighted Features

  • Internal sensor only (No probe)
  • GDP/GMP compliant
  • Refrigerated to ambient monitoring
  • Integrates with mobile and cloud platforms for a 21 CFR Part 11-compliant solution
  • Easy-to-read display with current and daily min/max temperatures
  • Bluetooth transmission of data and alarm states
  • Logger setup and download of data in seconds – without a PC or cable
  • Real-time alerts and automatic data downloads with optional CX Gateway device
  • +/- 0.5C accuracy for reliable temperature readings
  • Battery-powered to guard against local power loss

    Specifications

    Table 1: Ambient Temperature Sensor

    Specification Value
    Range -30°C to 70°C <br> -22°F to 158°F
    Accuracy ±0.5°C from -15° to 70°C <br> ±0.9°F from 5° to 158°F <br> ±1.0°C from -30° to -15°C <br> ±1.8°F from -22° to 5°F
    Resolution 0.024°C at 25°C <br> 0.04°F at 77°F
    NIST Calibration Single-point NIST calibration

    Table 2: Logger

    Specification Value
    Radio Power 1 mW (0 dBm)
    Transmission Range Approximately 30.5 m (100 ft) line-of-sight
    Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart)
    Logger Operating Range -30°C to 70°C <br> -22°F to 158°F, 0 to 95% RH (non-condensing)
    Logging Rate 1 second to 18 hours

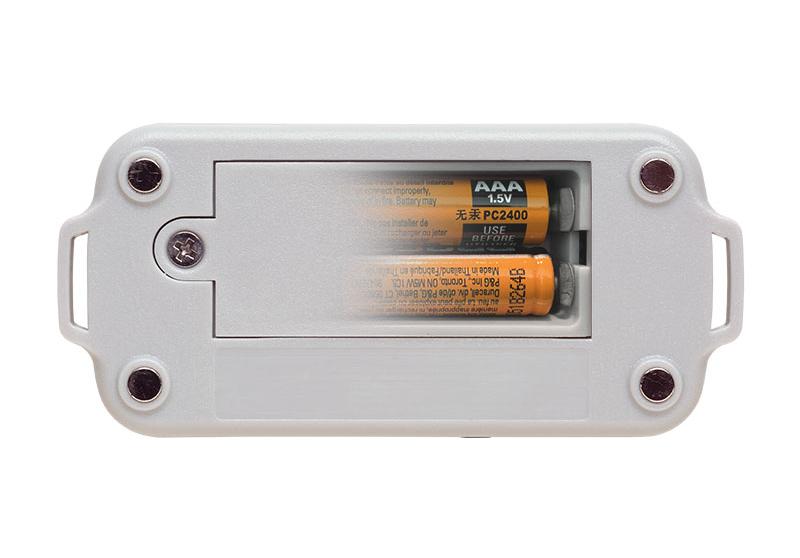

    Battery Type Two AAA batteries, user replaceable
    Battery Life 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive report generation, numerous audible alarms, and paging all impact battery life.
    Memory 128 KB (84,650 measurements, maximum)
    Full Memory Download Time Approximately 60 seconds; may take longer the farther the device is from the logger
    LCD LCD is visible from 0°C to 50°C (32°F to 122°F); the LCD may react slowly or go blank in temperatures outside this range

    Table 3: Physical Specifications

    Specification Value
    Dimensions 9.4 x 4.5 x 2.59 cm <br> 3.7 x 1.77 x 1.02 inches
    Weight 90.2 g (3.18 oz)
    Environmental Rating IP54
