Intemp

CX450 Temp/RH Data Logger

R 4,959.10
SKU: CX450

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

CX450 Temp/RH Data Logger

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

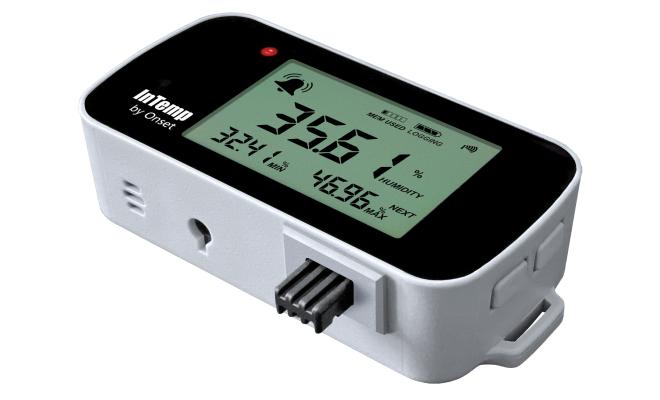

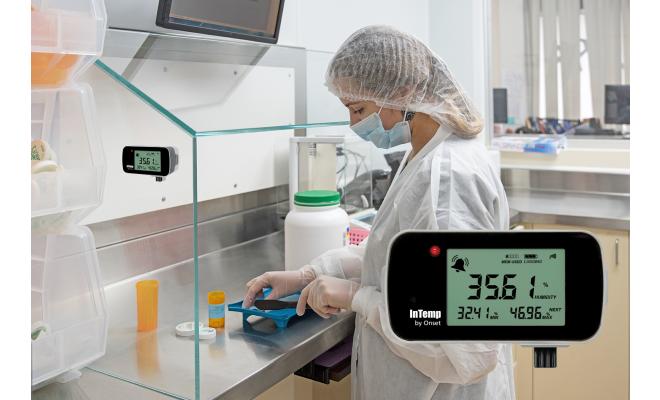

The InTemp CX450 Temp/RH data logger monitors temperature and relative humidity in storage and transportation environments. It uses Bluetooth technology to wirelessly communicate with the InTemp CX Gateway and/or the free InTemp mobile app and sends data to the free InTempConnect cloud platform. The external sensor provides highly accurate temperature (-30C to 70C) and humidity (0% to 95%) readings.

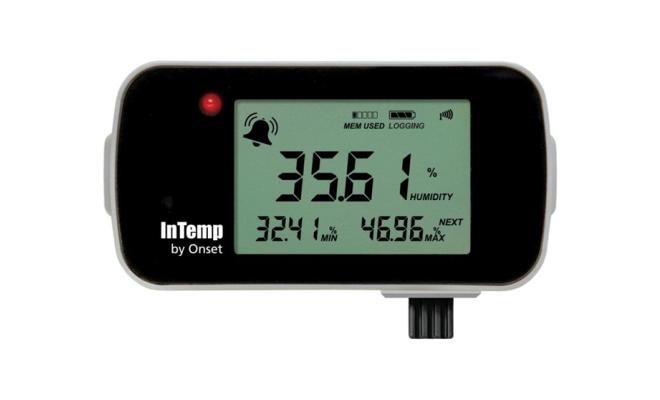

This Temp/RH logger also features a built-in LCD display to view temperature and relative humidity readings, visual and unique audible alarms, and battery levels. Users can also view and display minimum and maximum readings, without affecting logged data.

By adding the InTemp CX Gateway, users can get text or email notifications of temperature and/or humidity excursions, as well as automatic data downloads from loggers within range of the CX Gateway device.

Documentation

User Manual
 data sheet



Highlighted Features

  • Includes two-point NIST Certificate of Calibration, per USP guidelines, which is good for one year
  • AAA battery-powered to guard against local power loss
  • Integrates with mobile and cloud platforms for a 21 CFR Part 11 compliant solution
  • + 0.5C accuracy for reliable temperature readings from -30C to 70C
  • Easy logger setup and data download in seconds
  • + 3% accuracy for reliable RH readings from 0% to 90% (+ 3.5% accuracy for reliable RH readings greater than 90% at 25C)
  • LCD display, with the ability to clear min/max temp and RH readings
  • Free InTemp mobile app to configure logger, view data, and access the free InTempConnect cloud software service
  • Unique audible alarms for temp, RH, and combined temp/RH
  • Real-time alerts and automatic data downloads with optional InTemp CX Gateway device

    Who is this for?

    Required to follow GDP & GMP requirements specifically

    • Internal temp and humidity sensor only (No probe)
    • GDP/GMP compliant
    • Refrigerated to ambient monitoring
    • Humidity monitoring

    Specifications

    Table 1: Temperature Sensor

    Specification Temperature Sensor
    Range -30°C to 70°C (-22°F to 158°F)
    Accuracy ±0.5°C from -30° to 70°C (±0.9°F from -22° to 158°F)
    Resolution 0.024°C at 25°C (0.04°F at 77°F)
    NIST Calibration Two-point NIST calibration included

    Table 2: RH Sensor

    Specification RH Sensor
    Range 0% to 95% (non-condensing)
    Accuracy ±3% from 0% to 90% <br> ±3.5% from >90% at 25°C (77°F)
    Resolution 0.01%

    Table 3: Logger

    Specification Logger
    Radio Power 1 mW (0 dBm)
    Transmission Range Approximately 30.5 m (100 ft) line-of-sight
    Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart)
    Logger Operating Range -30°C to 70°C (-22°F to 158°F), 0% to 95% RH (non-condensing)
    Logging Rate 1 second to 18 hours
    Battery Type Two AAA batteries, user replaceable
    Battery Life 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive report generation, numerous audible alarms, and paging all impact battery life.
    Memory 178 KB (51,700 temp & RH paired measurements)
    Full Memory Download Time Approximately 60 seconds; may take longer the farther the device is from the logger
    LCD LCD is visible from 0°C to 50°C (32°F to 122°F); the LCD may react slowly or go blank in temperatures outside this range
    Dimensions 9.4 x 5.6 x 2.59 cm (3.7 x 2.21 x 1.02 inches)
    Weight 90.2 g (3.18 oz)
    Environmental Rating IP54
