CX602/3 Dry Ice Data Logger

Sale priceR 3,043.76
SKU: CX603

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Do you need the CX602 or CX603?:CX603: Multiple-use
Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

CX602/3 Dry Ice Data Logger

CX603: Multiple-use

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

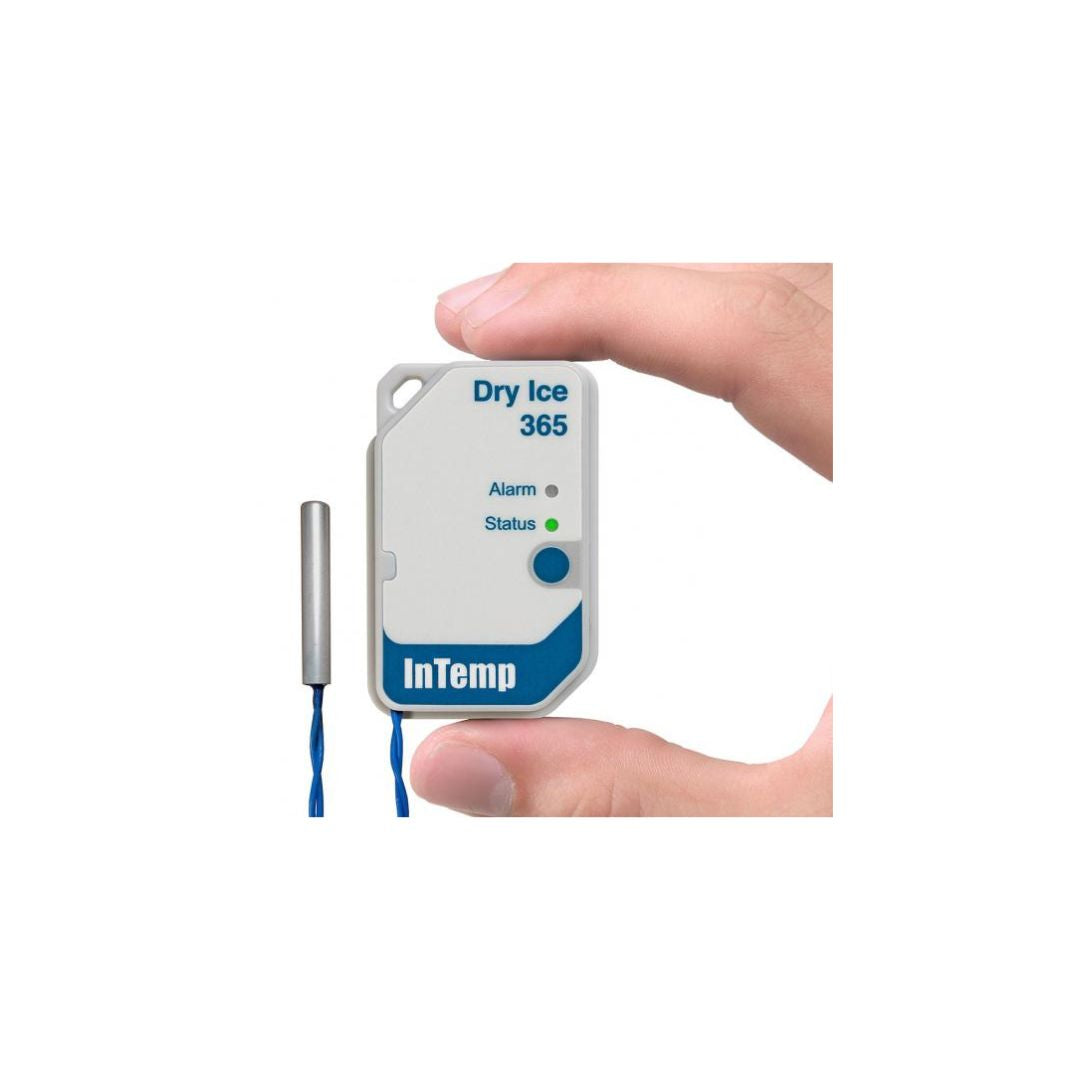

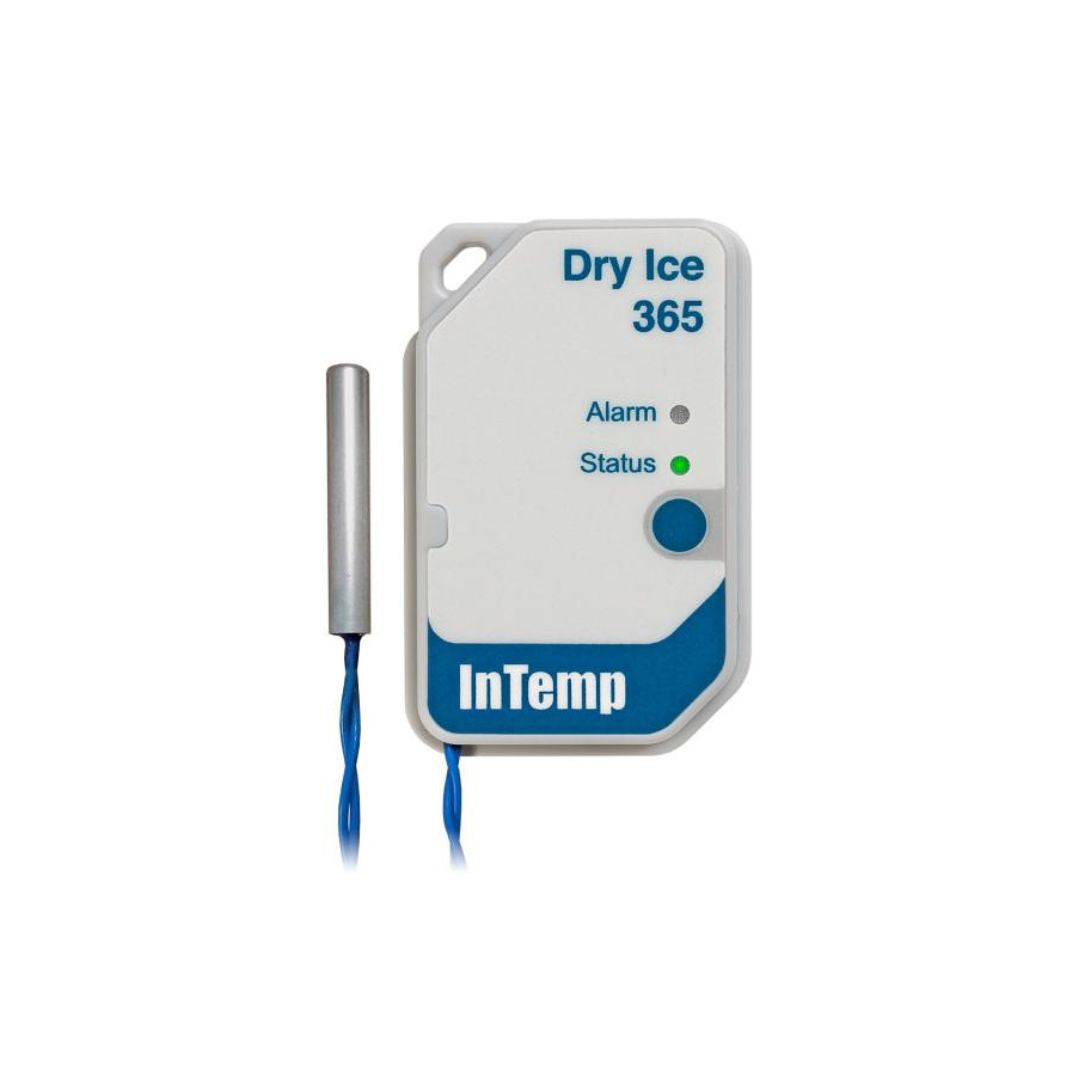

The InTemp CX602 and CX603 Dry Ice data loggers are Bluetooth-enabled devices that record temperature data. These loggers come equipped with a built-in 1.5m probe that measures temperatures as low as -95°C (-139°F), along with a protective sheath to prevent accidental cutting of the cable and a clip for secure mounting.

The CX602 is a single-use logger with a recording period of up to 90 days, while the CX603 is a multiple-use logger that can record temperature data for up to 365 days. Both loggers can be easily configured with one of multiple preset configurations, or set up with a custom configuration using the InTemp® app on your mobile device.

These loggers feature a built-in alarm to alert you to temperature excursions. Logger reports can be quickly downloaded to your phone or tablet and uploaded to an InTempConnect® account, where you can analyze and export data as needed.

With the optional CX Gateway, you can receive real-time notifications of temperature excursions and automatically download data from loggers within the range of the device. To learn more about the functionality of the CX Gateway, please refer to the InTemp CX Gateway guide.

Documentation

User Manual
Quick Start Guide



Highlighted Features

  • IATA Battery compliant
  • 3-Point NIST Certificate of Calibration, valid for one year from the date of purchase
  • Anti-cut sheath
  • Integrates with mobile and cloud platforms for a 21 CFR Part 11 compliant solution
  • Compact and lightweight – ideal for shipping pharmaceuticals
  • No need to open containers to access data
  • Ensures secure data via encrypted technology

Specifications

Specification CX603
CX602
Sensor Range -95°C to 50°C (-139°F to 122°F) -95°C to 50°C (-139°F to 122°F)
Accuracy

±1.5°C from -95° to -40°C (±2.7°F from -139° to -40°F)

±1.0°C from -40° to -10°C (±1.8°F from -40° to 14°F)

±0.5°C from -10° to 50°C (±0.9°F from -14° to 122°F)

±1.5°C from -95° to -40°C (±2.7°F from -139° to -40°F)

±1.0°C from -40° to -10°C (±1.8°F from -40° to 14°F)

±0.5°C from -10° to 50°C (±0.9°F from -14° to 122°F)

Resolution 0.013°C at 25°C (0.023°F at 77°F) 0.013°C at 25°C (0.023°F at 77°F)
NIST Calibration Three-point NIST calibration, probe only Three-point NIST calibration, probe only
Cable Length 1.5 m (4.92 ft) 1.5 m (4.92 ft)
Probe Dimensions Food-grade stainless steel probe with blunt tip, 31.75 mm (1.25 inches) long, 4.78 mm (0.188 inches) diameter Food-grade stainless steel probe with blunt tip, 31.75 mm (1.25 inches) long, 4.78 mm (0.188 inches) diameter
Logger Operating Range -30°C to 50°C (-22°F to 122°F) -30°C to 50°C (-22°F to 122°F)
Radio Power 1 mW (0 dBm) 1 mW (0 dBm)
Transmission Range Approximately 30.5 m (100 ft) line-of-sight Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart) Bluetooth Low Energy (Bluetooth Smart)
Type Multiple uses Single-use
Duration 365 days 90 days
Shelf Life Up to 1 year Up to 1 year
Logging Rate 1 second to 18 hours 1 second to 18 hours
Battery CR2450 3V lithium, not replaceable. Battery life varies based on the model. CR2450 3V lithium, not replaceable. Battery life varies based on the model.
Memory 16,000 measurements 16,000 measurements
Full Memory Download Time Approximately 30 seconds; may take longer the farther the device is from the logger Approximately 30 seconds; may take longer the farther the device is from the logger
Dimensions 6.9 x 4.5 x 1.1 cm (2.71 x 1.76 x 0.42 inches) 6.9 x 4.5 x 1.1 cm (2.71 x 1.76 x 0.42 inches)
Weight 25.5 g (0.90 oz) 25.5 g (0.90 oz)
Environmental Rating IP65 IP65
Image Description CE (EU compliance) ce (EU compliance)
