Onset
0.2 mm Davis Rain Gauge Sensor
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Quantity:

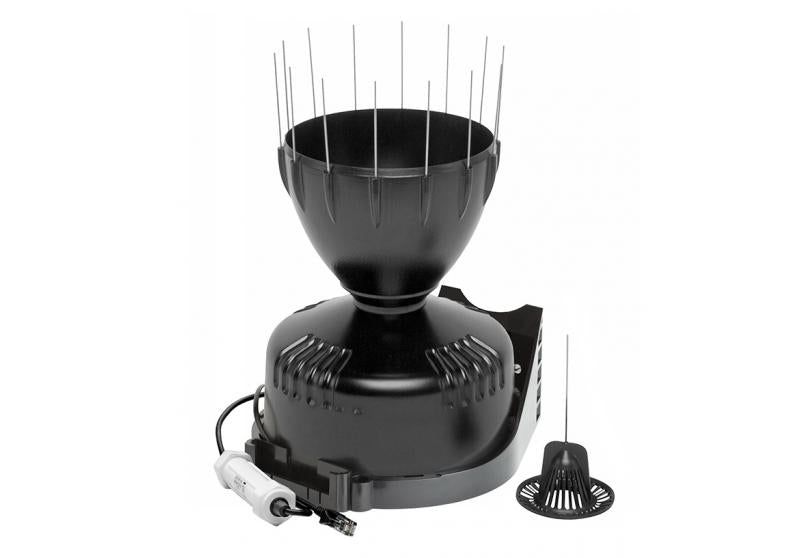

Featuring the AeroCone® design for better measurement accuracy in high-wind conditions, this rain gauge sensor is made from UV-stabilized ABS plastic to provide cost-effective rainfall measurement and is plug-and-play compatible with all HOBO weather stations.
Documentation
Quick Start GuideUser Manual
Highlighted Features
- Streamlined design reduces the amount of missed rain capture in windy conditions, resulting in more accurate rainfall data
- Improved debris screen locks in to ensure it remains in place during high winds
- 16.5 cm (6.5”) collector opening meets World Meteorological Organization (WMO) guidelines
Specifications
| Specification | Value |
|---|---|
| Measurement Range | 0 to 10.2 cm (0 to 4 in.) per hour, maximum of 4,000 tips per logging interval |
| Accuracy | ±4.0%, ±1 rainfall count between 0.2 and 50.0 mm (0.01 and 2.0 in.) per hour; ±5.0%, ±1 rainfall count between 50.0 and 100.0 mm (2.0 and 4.0 in.) per hour |
| Resolution | 0.01 in. (S-RGC-M002) or 0.2 mm (S-RGF-M002) |
| Operating Temperature Range | 0°C to 50°C (32°F to 122°F), survival -40°C to 75°C (-40°F to 167°F) |
| Environmental Rating | Weatherproof |
| Housing | UV-stabilized ABS plastic |

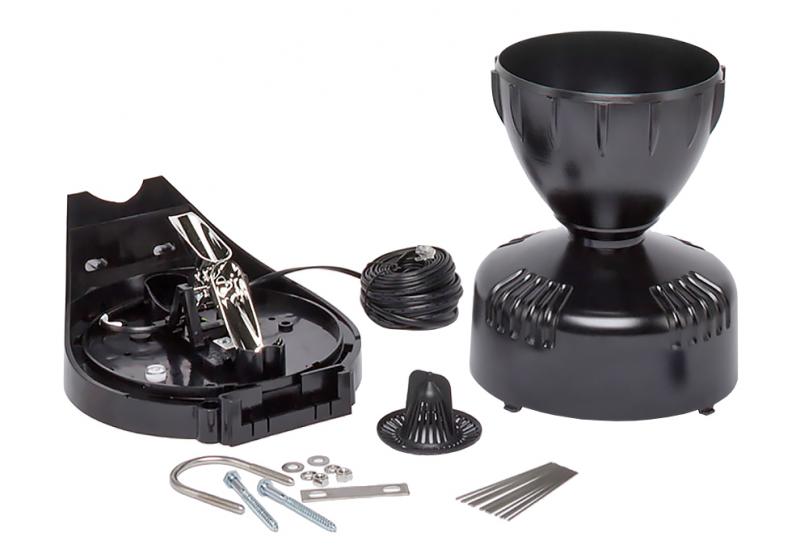

| Mechanism | Tipping spoon with magnetic reed switch pivots on a metal shaft |
| Dimensions | 16.5 cm opening diameter (6.5 in.) x 24 cm (9.5 in.) high; 214 cm² (33.2 in.²) collection area |
| Weight | 1.2 kg (2.7 lbs) |
| Bits per Sample | 12 |
| Number of Data Channels* | 1 |
| Measurement Averaging | No |
| Cable Length Available | 2 m (6.6 ft) |
| Length of Smart Sensor Network Cable* | 0.5 m (1.6 ft) |
Applications
In what environment does this sensor operate?
This sensor operates in an outdoor environment.
What measurements does this sensor support?
The S-RGF-M002 sensor supports the following measurement: Rainfall
