Differential Air Pressure Transducer Sensor

R 8,255.52
SKU: T-VER-PX3UL

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:

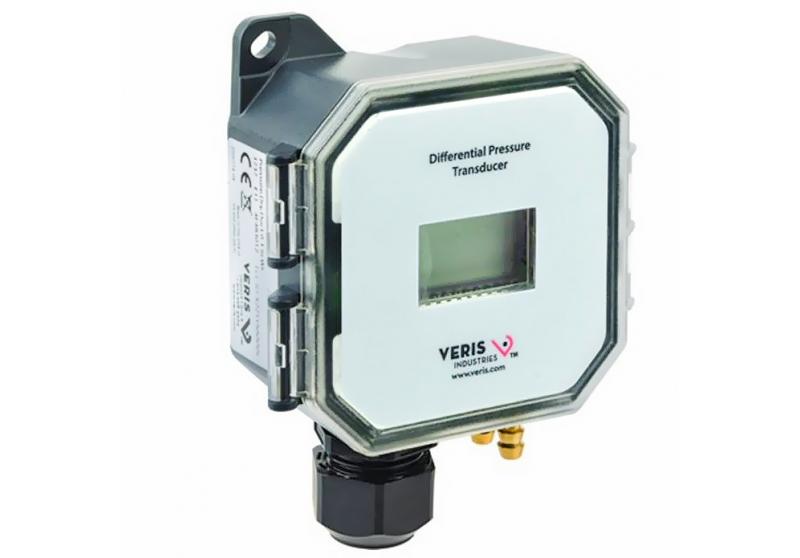

A transducer sensor that can measure either air pressure or velocity with the flip of a switch. Available in the universal configuration, with pressure and velocity range options: 0-10" WC / 0-7,000 ft/min, with seven field-selectable sub-ranges for pressure and eight for velocity. Available with display. This sensor has an IP65/NEMA 4 environmental rating.

    Documentation

    Installation Guide


    Highlighted Features

    • Switch-selectable ranges and scales reduce setup time
    • High-reliability sensor technology for long-term, maintenance-free operation
    • Monitors positive and negative pressure for application versatility

    Specifications

    Specification Details
    Media Compatibility Dry air or inert gas
    Input Power 12-30VDC, or 24VAC nominal
    Output Field-selectable: 2-wire, loop-powered 4-20mA (DC only, clipped and capped) or 3-wire 0-5V/0-10V
    Pressure Ranges - Unidirectional: 0.1/0.25/0.5/1/2.5/5/10 in. WC, switch selectable<br> - Bidirectional: ±0.1/±0.25/±0.5/±1/±2.5/±5/±10 in. WC, switch selectable
    - Unidirectional: 25/50/100/250/500/1,000/2,500 Pa, switch selectable<br> - Bidirectional: ±25/±50/±100/±250/±500/±1,000/±2,500 Pa, switch selectable
    Velocity Mode 500/1000/2000/3000/4000/5000/6000/7000 ft/min<br>2.5/5/10/15/20/25/30/35 m/s
    Response Time Standard: T95 in 20 sec, Fast: T95 in 2 sec, switch selectable
    Mode Unidirectional or bidirectional, switch selectable
    Display (option) Signed 3-1/2 digit LCD, indicates pressure, overrange indicator
    Proof Pressure 3 psid (20.6kPa)
    Burst Pressure 5 psid (34.5kPa)
    Accuracy ±1% F.S. of selected range (combined linearity and hysteresis)
    Temperature Effect 1" 0.05%/°C; 10"
    Zero Drift (1-year) 1" 2.0% max.
    Zero Adjust Pushbutton auto-zero and digital input (2-pos terminal block)
    Operating Environment 0°- 60°C (32° to 140°F); 0 to 90% RH non-condensing
    Fittings Brass barb; 0.24” (6.1mm) o.d.
    Physical UL 94 V-O Fire Retardant ABS

    Applications

    In what environment does this sensor operate?

    This sensor operates in an indoor environment.

    What measurements does this sensor support?

    The T-VER-PX3UL sensor supports the following measurement: Differential Pressure
