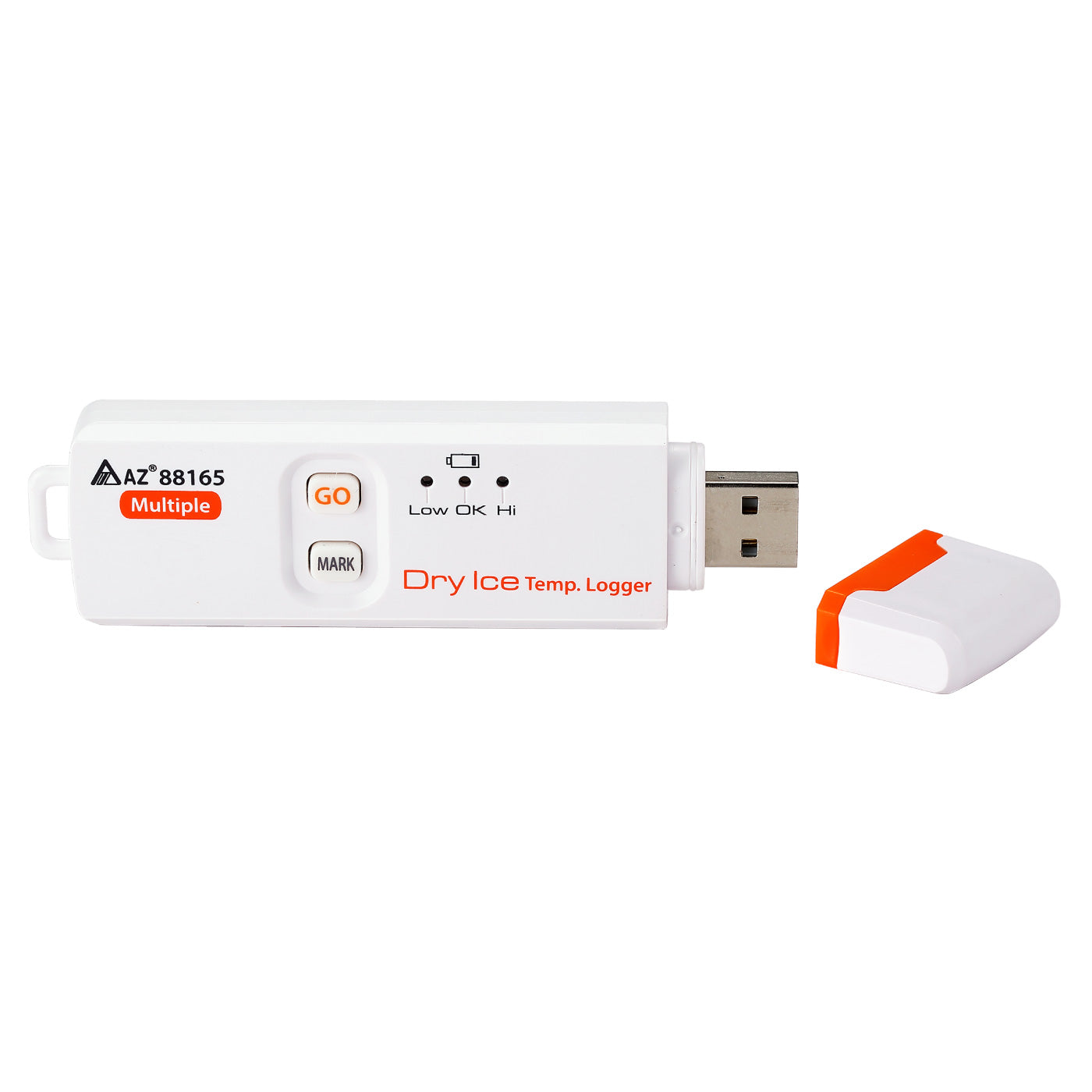

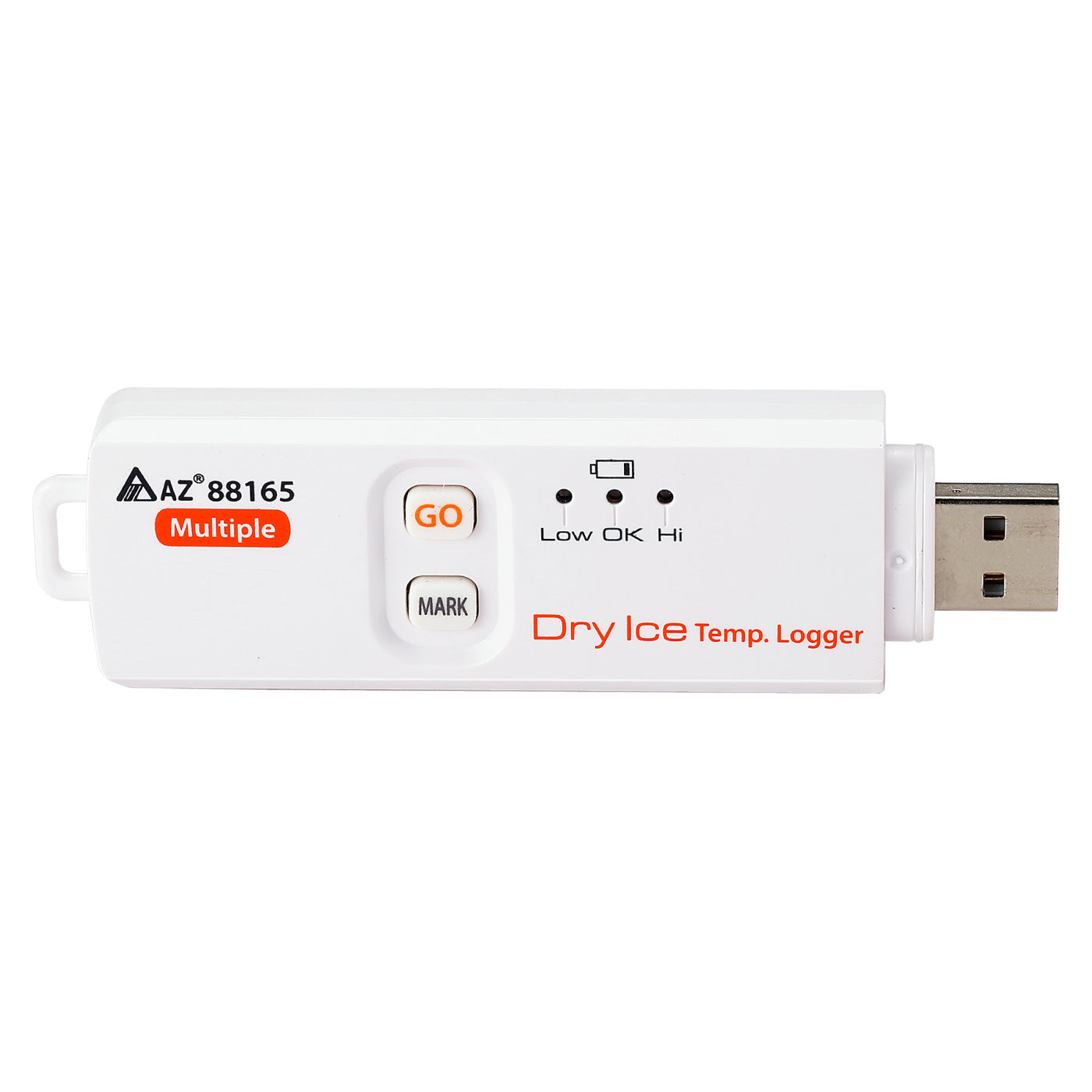

Dry Ice Temperature Data logger
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Dry Ice Temperature Data logger
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa
It could be your best tool for logistic traceable procedures for vaccines, biological, pharmaceuticals, and other perishable & temperature sensitivity products.
Highlighted Features
- Plug & play USB interface, without any software
- Built-in PT1000 sensor for dry ice temperature measuring
- Automatically generate PDF/Excel report when plugged into PC
- The report includes a summary, graph, and detailed temperature data
- Completely user re-programmable: 6 languages, sampling interval, start delay, alarm delay, unit, alarm range, alarm type, password, and user name
- Multiple time use for 1.5 year time or 1 million points
Applications
The 88165 Dry Ice Temperature USB Data logger can measure and record the Temperature value, and generate PDF & Excel reports automatically. This logger has the file encrypted technology to secure data integrity, which would be met in the requirement in Cold Chain Supply Industry (orchid, flowers, seafood, food processing products, perishable foods), Health and Pharmaceutical industry, hospital or lab.
The 88165 Dry Ice Temperature USB Data logger could be your best tool for logistic traceable procedures for vaccines, biological, pharmaceuticals, and other perishable & temperature sensitivity products.
Specifications
| Model | 88165 |
| Temperature Range | PT1000 RTD sensor, -80.0~70.0℃, -112~158℉ |
| Temperature Resolution | 0.1℃, 0.1℉ |
| Temperature Accuracy | ±0.5℃ for full range |
| Logging Type | Multiple Time Use till battery power is low |
| Meter Size | 104(L) * 28.8(W) * 10.5(H) mm |
| Sampling Points | 48,000 readings |
| Operation Life Time | At least 1 million points or 1.5 years which comes first |
| Operating Temperature/span> | -80~70℃ (Logging Status); Room Temp. (PC Status) |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -40~85℃ |
| Storage RH% | Humidity ＜90% |
| Weight | ~20g |
| Battery | 1PC 3.6V Lithium battery (installed before shipment) |
| Sampling Interval | 30 seconds, 5, 10, 30, 60, 90, 120 minutes |
| Start Delay | 0, 5, 30, 45, 60, 90, 120 minutes |
| Alarm Range |
-20~-10℃, -10~0℃, 2~8℃, 0~15℃, 0~25℃, 15~25℃, others |
| Alarm Delay | 0, 5, 30, 45, 60, 90, 120 minutes |
| Alarm Type | Single Event, Cumulative, Disable |
| Operation Keys | 2 Keys (Start/Stop Key & Mark Key) |
| LED Indicator | REC, Low Battery, High /Low Alarm |
| Standard Package | 1 PC Logger in One Box, Manual, Paper Box |
