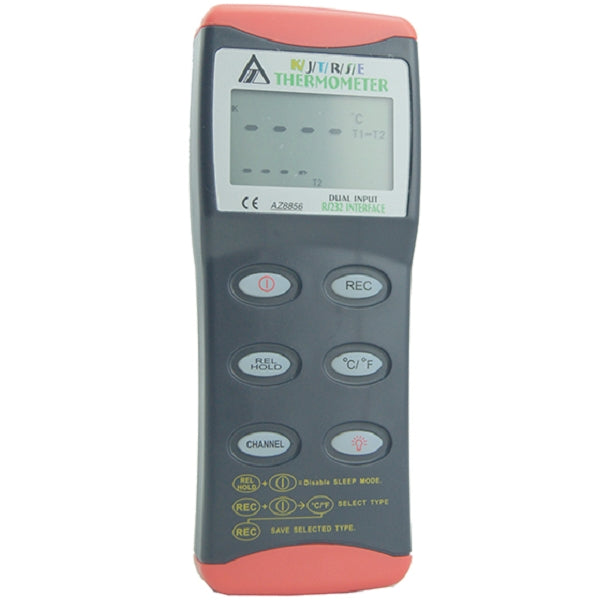

The 8856 Thermocouple Thermometer can measure the temperature from -200~1760℃, depended on which kind of Thermocouple temperature sensor attached.
The 8856 Thermocouple Temperature can attach to K, J, T, R, S, E type thermocouple temperature sensor with two channels input by different usage. Numerous viewing combinations are available. The big LCD has three display parts, which can keep user check the temperature and relative time information constantly.
Highlighted Features
-
Fashion design and the most popular & fast multiple type thermocouple measuring meter
-
Super big LCD for easy reading
-
Data records stamped with real time clock
-
Dual input K, J, T, R, S, E Thermocouple probe compatible
-
T1, T2 and T1-T2 (differential temperature between two origins) could be check
-
Max/Min temperature record checking
-
Hold function to freeze the real time temperature data
-
Battery low indication
-
Temperature unit ℃/℉could be selected
-
RS232 Interface
-
Backlight display
- DC Jack
Applications
The 8856 Temperature Meter with thermocouple sensor has the back light function, which can let user operate in the dark area easily. The temperature readings could be toggled between Fahrenheit and Celsius easily.
The 8856 AZ Thermocouple Temperature Meter is the ideal tool as the temperature monitoring and controlling for LAB, Biochemistry, HVAC/R, Construction or other Industry applications.
Specifications
Model | 8856 |
K Temperature Range | -200~1370℃, -328~2498℉ (Under 18~28℃ ambient tempreature) |
K Temperature Accuracy | ±(0.1% rdg+0.7℃), ±(0.1% rdg+1.4℉) |
K Temperature Resolution | 0.1℃, 0.1℉ |
J Temperature Range | -200~760℃, -328~1400℉ (Under 18~28℃ ambient tempreature) |
J Temperature Accuracy | ±(0.1% rdg+0.7℃), ±(0.1% rdg+1.4℉) |
J Temperature Resolution | 0.1℃, 0.1℉ |
T Temperature Range | -200~390℃, -328~730℉ (Under 18~28℃ ambient tempreature) |
T Temperature Accuracy | ±(0.1% rdg+0.7℃), ±(0.1% rdg+1.4℉) |
T Temperature Resolution | 0.1℃, 0.1℉ |
R Temperature Range | 0~1760℃, 32~3200℉ (Under 18~28℃ ambient tempreature) |
R Temperature Accuracy | ±(0.3% rdg+0.7℃), ±(0.3% rdg+1.4℉) |
R Temperature Resolution | 0.1℃, 0.1℉ |
S Temperature Range | 0~1760℃, 32~3200℉ (Under 18~28℃ ambient tempreature) |
S Temperature Accuracy | ±(0.3% rdg+0.7℃), ±(0.3% rdg+1.4℉) |
S Temperature Resolution | 0.1℃, 0.1℉ |
E Temperature Range | -200~736℃, -328~1356℉ (Under 18~28℃ ambient tempreature) |
E Temperature Accuracy | ±(0.1% rdg+0.7℃), ±(0.1% rdg+1.4℉) |
E Temperature Resolution | 0.1℃, 0.1℉ |
LCD Size | 51(L) * 30(W) mm |
Operating Temperature | 0~50℃ |
Operating RH% | Humidity <80% |
Storage Temperature | -20~50℃ |
Storage RH% | Humidity <90% |
Meter Size | 182(L) * 72(W) * 30(H) mm |
Weight | ~150g |
Battery | 9V * 1 PC or adaptor |
Standard Package | Meter, K bead thermocouple *1 PC, Battery, Manual |
Optional Accessory | K type thermocouple (custom made thermocouple is available upon request), Rubber boot |
