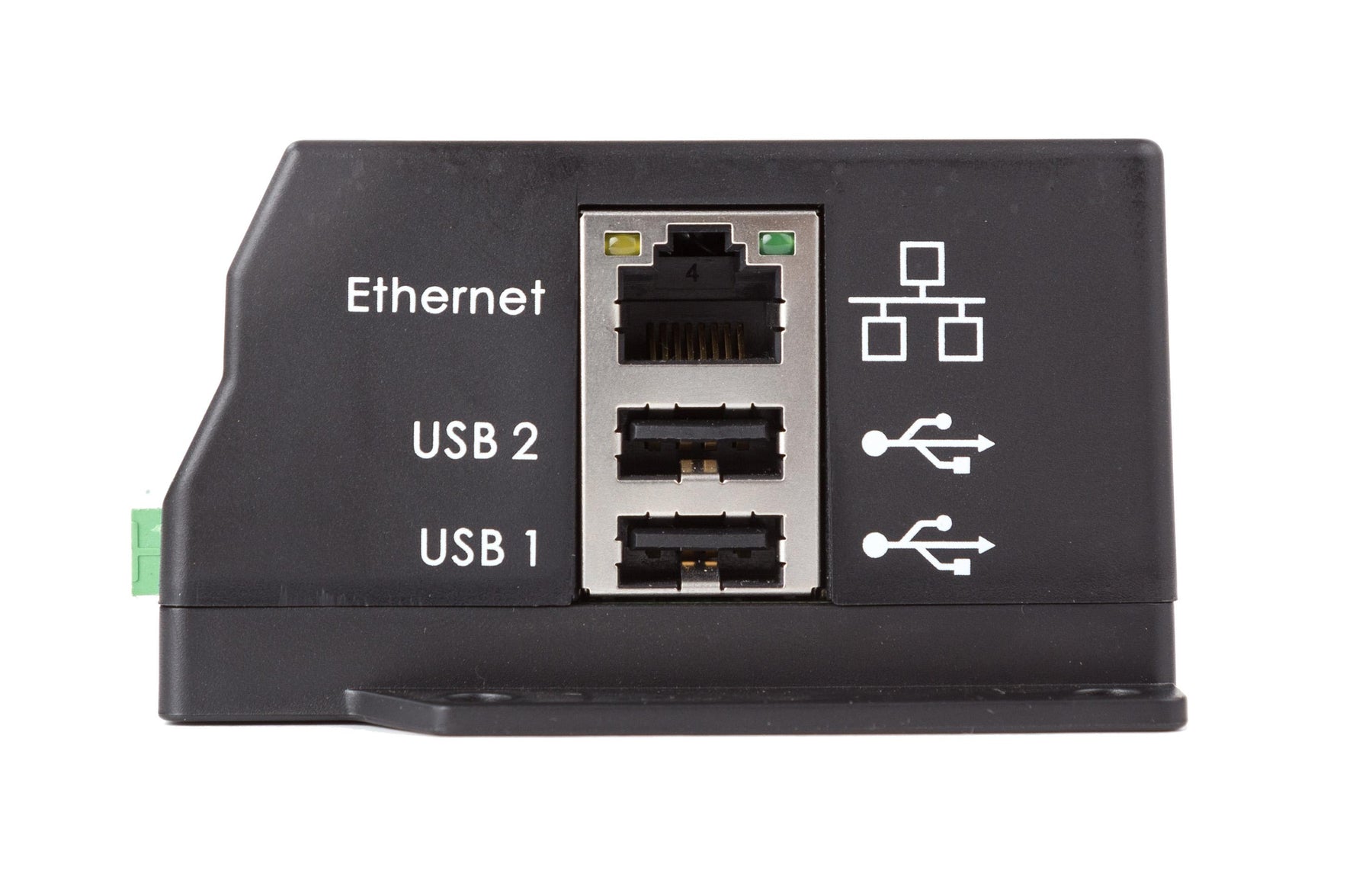

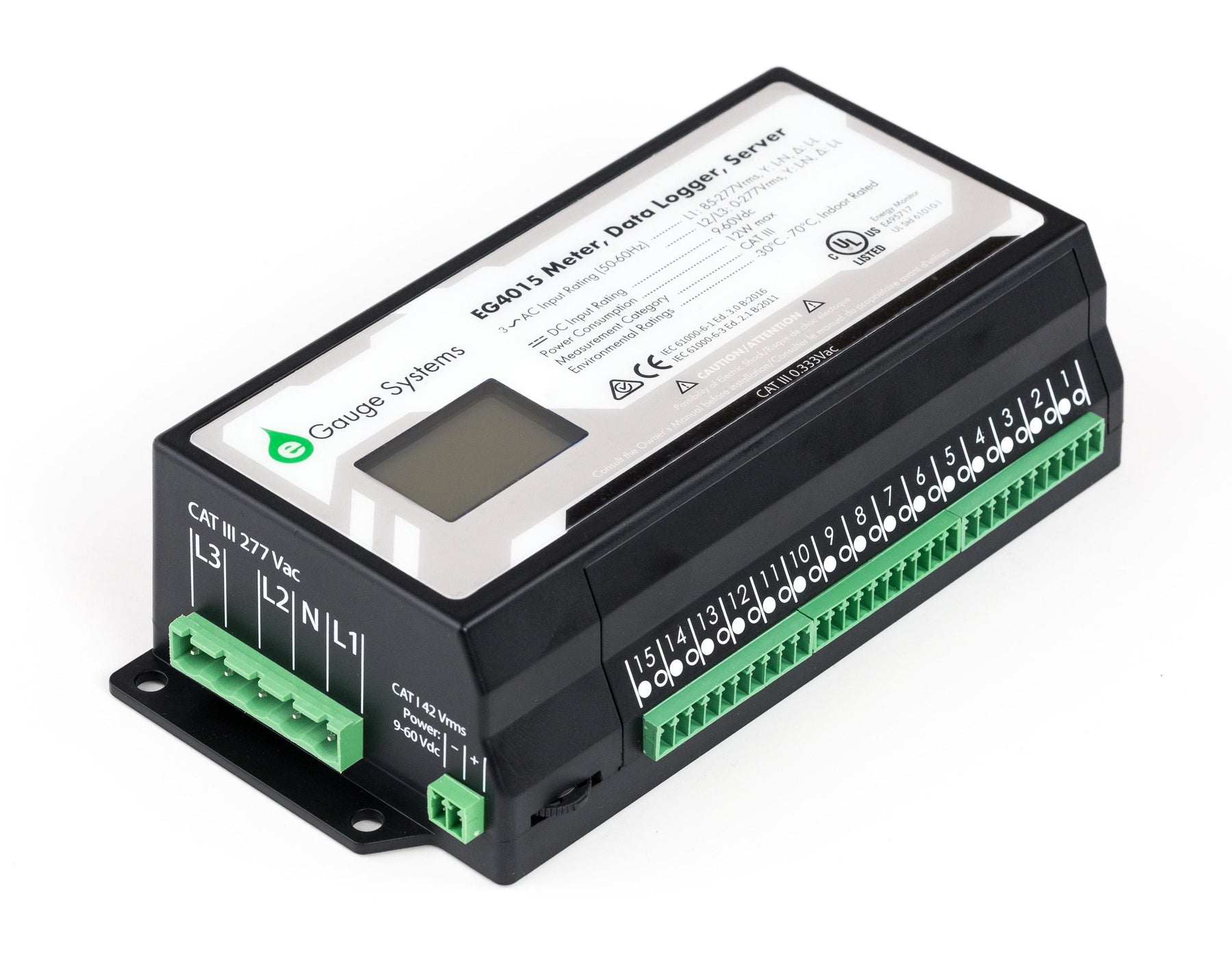

The eGauge Core is a 15-channel energy meter with 0.5% revenue grade accuracy compliance and the ability to measure residential or commercial circuit panels, up to 3-phase 277/480VAC and 6900A. The meter has an Ethernet port and 2 USB ports for additional options, like WiFi and serial.
The user can access meter data using the free user interface or with other systems using a published XML API, Modbus, or BACnet IP. The embedded web server allows the user to connect to the interface over the internet or on a local area network.
Each unit has a data logger that stores up to 64 data points for the lifetime of the hardware, and the user can access data as granular as 1-second averages for the most recent hour of recording. Taken together, the eGauge Core is an accurate and flexible solution for monitoring multiple circuits in any residential or commercial energy monitoring application.
Highlighted Features
- Measures electric AC or DC power on up to 30 circuits
- 2 USB Inputs
- LCD Screen
- DC Voltage port

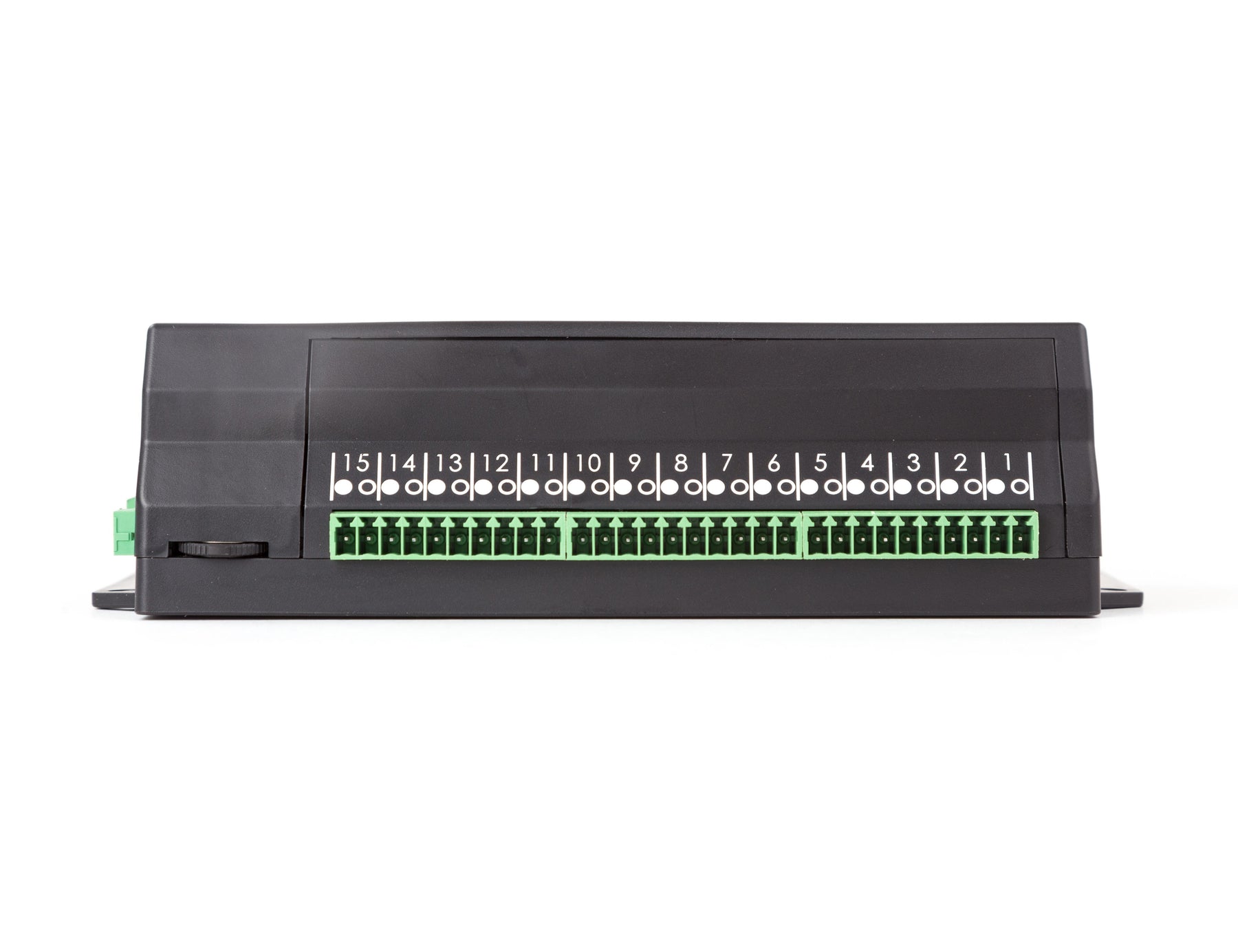

- 15 Sensor Inputs
- Built-in Ethernet
- WiFi and Cellular communication (using additional hardware)
- Building-demand/consumption recording
- Renewable energy production (e.g., PV solar, wind)
- Individual appliances, such as geothermal pumps, HVAC, refrigerator
- Supports wide range of current transformers (CTs) to accommodate virtually any size load
- Built-in web server
- Fully web-configurable
- Built-in solid-state memory
- Product lifetime data storage
- Internet-enabled but can also operate autonomously without an Internet connection
- Free lifetime firmware upgrades
- No service contracts
- No batteries
- Windows, Mac, Linux, & smart-phone compatible
- For residential, commercial, municipal, and industrial use
- BACnet IP and MS/TP compatible
- FCC and UL-61010 compliant
- Lead-free and RoHS-compliant
Specifications
Measurement |
|

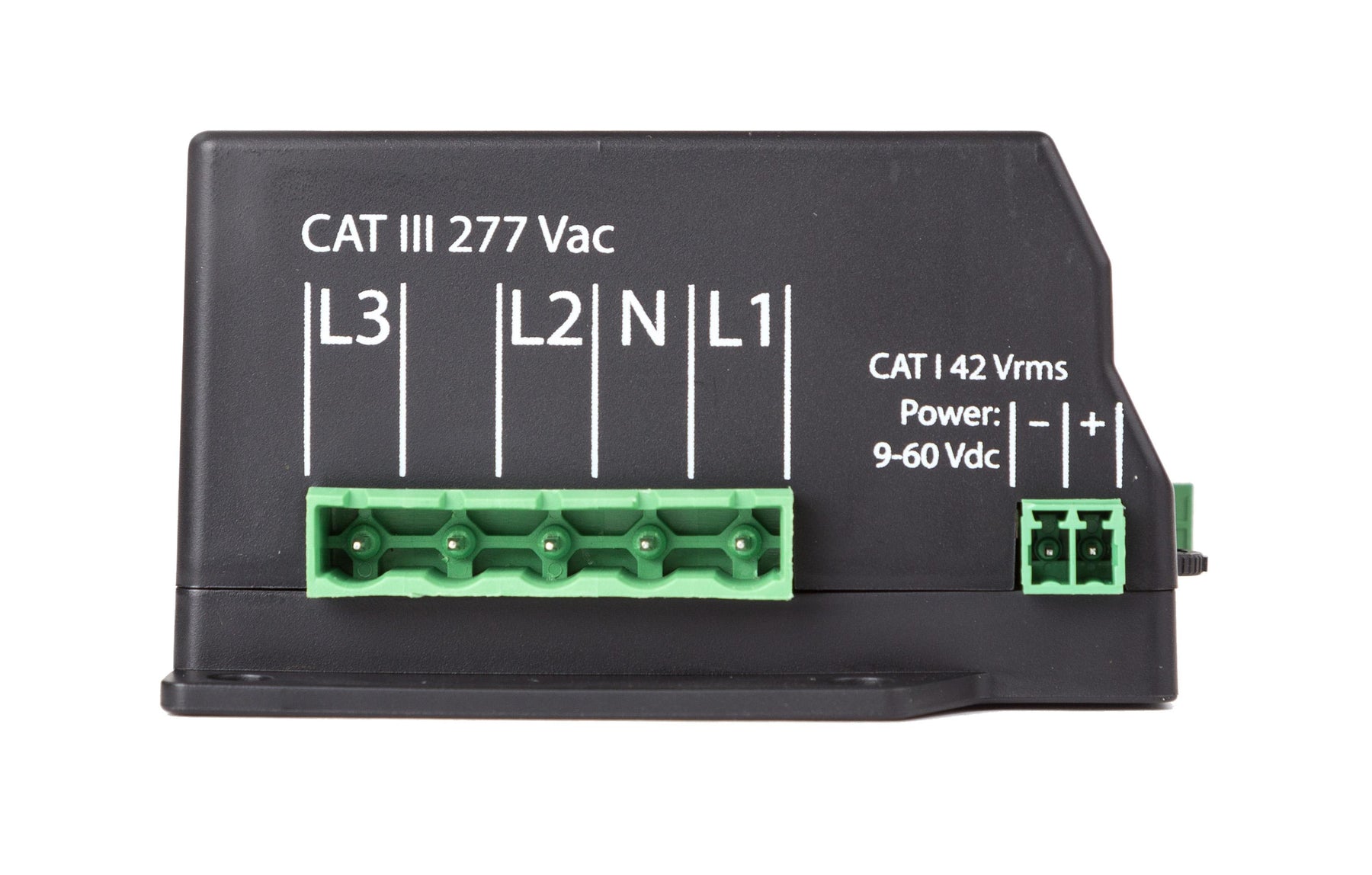

| AC Voltage | L1: 85-277 Vrms L2: 0-277 Vrms L3: 0-277 Vrms |
|---|---|
| DC Voltage | 42 Vrms Power: 9-60 Vdc Measurement: +/-60 Vdc |
| Current | 15 channels 5-6900A max per channel Isolated inputs |
| Frequency | 50 or 60 Hz |
| Logging Values | V, A, W, Wh, Hz, VA, VAr, THD, deg |
| Power Draw | 12W max, 2W typical |
Environmental |
|
| Operating Temperature | -30 to 70 deg C (-22 to 158 F) |
| Max Altitude | 4000m (13,123ft) |
| Max Humidity | 80% up to 31 deg C |
| Measurement Category | Overvoltage Category III |
| Location | Open-type indoor device |
| Pollution Degree | 2 |
Data Logger Capacity |
|
| Register Count | 64 (data storage points) |
| Granularity (duration/avg) |
1 hour/1 second 1 year/1 minute 10 yrs/15 minute Device Lifetime/1 Day |
Safety and Regulatory |
|
| Safety | IEC/UL 61010-1 Ed. 3.0 B:2010 |
| CE | IEC 61000-6-1 Ed. 3.0 B:2016 IEC 61000-6-3 Ed. 2.1 B:2011 |
| FCC | FCC Title 47 CFR Part 15-Subpart B Class B ICES-003 Information Technology Equipment Class B |
Communication |
|
| Ethernet | IEEE 802.3 - LAN |
User Interface |
|
| Compatible Browsers |
Recent versions of:
|
Enclosure |
|
| Material | FRABS |
| Dimensions | 17 x 8 x 4.6cm (6.7 x 3.15 x 1.81in) |
| Weight | 300g (0.66lbs) |
