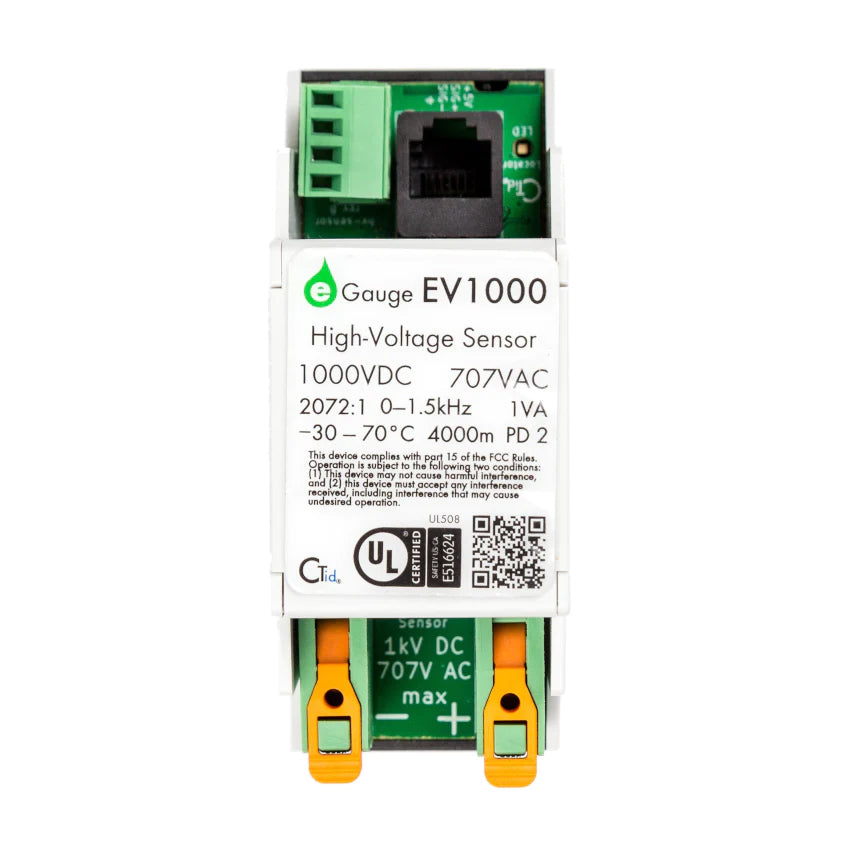

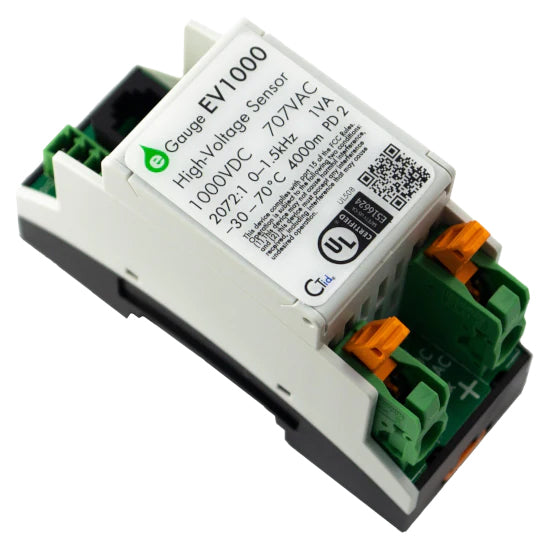

eGauge High Voltage Sensor

The eGauge High Voltage sensor (EV1000) is a fully isolated voltage transducer that measures up to 1000 VDC or 707 VAC and outputs a proportional ±0.5V signal. The EV1000 is designed to work with the eGauge Pro, eGauge Core, and eGauge Core Residential.

These meters feature CTid technology which allows auto-detection of sensor type, serial number, and other calibration information. The High Voltage sensor features an onboard LED which can be used to identify or locate a particular sensor connected to a particular meter input.

The EV1000 requires the eGauge Sensor Hub (ESH044) and either a 5Vdc power supply or a USB port for power (a USB port on the eGauge meter may be used).

Highlighted Features

• The EV1000 is designed to work with the eGauge Pro, eGauge Core, and eGauge Core Residential
• These meters feature CTid technology which allows auto-detection of sensor type, serial number and other calibration information
• The High Voltage sensor features an onboard LED which can be used to identify or locate a particular sensor connected to a particular meter input

Specifications

• CTid Enabled (w/ auto-configure and locator LED)
• Max Voltage: 1,000 VDC or 707 VAC
• Frequency Range: DC to 1.5KHz
• Accuracy: Better than 0.5%
• Wire size: Up to AWG 10
• Power supply (via Sensor Hub): 5V 100mA
• Temperature Range: -30 °C to 70 °C
• Output Interface: RJ-11 (CTid®) or 4-pin terminal block
• Output Signal: ± 0.5 V
• Mounting: Compatible with 35 mm wide, 7.5 mm tall DIN rails
• Dimensions: 90x36x60 mm3 (LxWxH)
• Weight: 60 grams
• Certifications:
  • UL 508 Ed. 18
  • FCC Title 7 CFR Part 15 Subpart B Class B
  • ICES-003 Information Technology Equipment Class B
