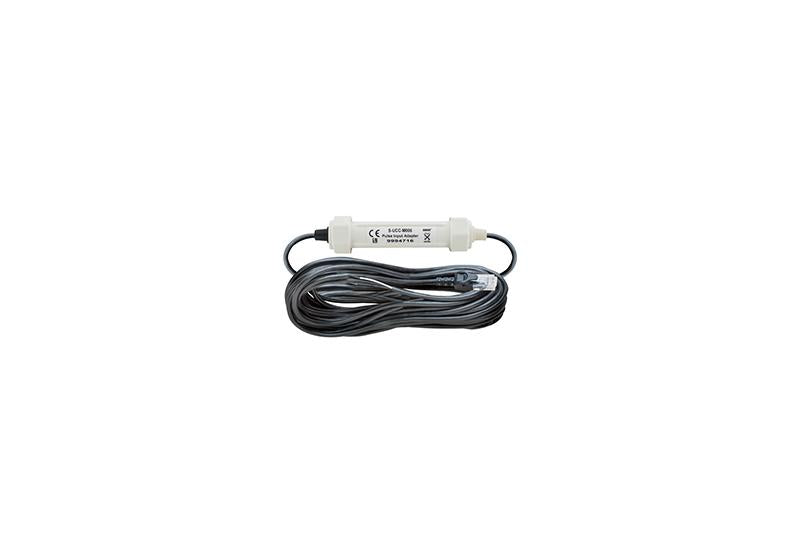

6m Electronic Switch Pulse Input Sensor Adapter
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Quantity:
Pickup available at EUCA Head Office
Usually ready in 24 hours
6m Electronic Switch Pulse Input Sensor Adapter
EUCA Head Office
Pickup available, usually ready in 24 hours
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa
Connects sensors with pulse outputs to data loggers with Smart Sensor inputs. Compatible with electronic switch closures such as FET or open-collector outputs, or CMOS-level logic signals with a maximum input frequency of 120 Hz (120 pulses per second). See how the pulse recorder works.
Documentation
User Manual
Highlighted Features
- Plug-n-play adapter for pulse output sensors
- Automatically recognized by HOBO Energy Logger
- 6m cable length (extension cables available)
Applications
In what environment does this sensor operate?
This sensor operates in indoor and outdoor environments.
What measurements does this sensor support?
The S-UCC-M006 sensor supports the following measurement: Pulse Input
Specifications
| Specification | Detail |
|---|---|
| Maximum Input Frequency | 120 Hz (120 pulses per second) |
| Measurement Range | 0 – 65,533 pulses per logging interval |
| Resolution | 1 pulse |
| Lockout Time | 45 µs ± 10% |
| Recommended Input Type | Electronic solid state switch closure or CMOS-level digital output (example: FET, opto-FET or open collector) |
| Preferred Switch State | Active low input Normally open |
| Edge Detection | Falling edge, Schmitt Trigger buffer (logic levels: low ≤ 0.6 V, high ≥ 2.7 V) |
| Minimum Pulse Width | 1 ms |
| Input/Output Impedance | 100 KΩ |
| Open Circuit Input Voltage | 3.3 V |
| Maximum Input Voltage | 3.6 V |
| User Connection | 24 AWG wires, 2 leads: white(+), black(-) |
| Operating Temperature Range | -40° to 75°C (-40° to 167°F) |
| Overall Cable Length | 6.5 m (21 ft.) |
| Housing | Weatherproof PVC housing protects input adapter electronics |
| Housing Dimensions | 14 x 0.95 cm (5.5 x 0.375 in.) |
| Weight | 310 g (11 oz.) |
| Bits per Sample | 16 |
| Number of Data Channels | 1 |
| Measurement Averaging Option | No (reports the number of pulses over the logging interval) |
