Energy Data Logger - eucatech Store
Energy Data Logger - eucatech Store

Onset

Energy Data Logger

Sale priceR 12,328.96
SKU: H22-001

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:

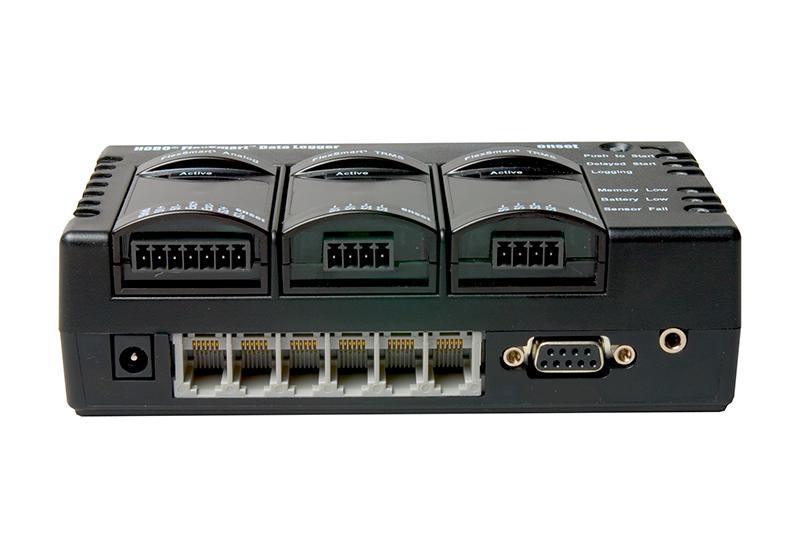

This 15-channel data logger lets energy and facility managers monitor energy and industrial equipment to quickly and easily detect and address a variety of issues relating to HVAC, machinery, and other systems. A modular device, the HOBO H22-001 Energy Data Logger is more economical than its alternatives because it eliminates the need for a toolbox full of data loggers.

Deploying this logger with a variety of pre-defined plug-and-play smart sensors creates a robust monitoring system, and it's compatible with HOBOware software, so researchers can conduct effective data analysis in minutes.

IMPORTANT INFORMATION

Requires HOBOware software and ADAPT-SER-USB interface cables.

Deploy this product with a variety of pre-defined plug-and-play smart sensors to create a robust monitoring system. Compatible with HOBOware® software, researchers can conduct effective data analysis in minutes.

Documentation

Data Sheet



Highlighted Features

  • Flexible data logger records up to 15 channels of more than a dozen measurements
  • Provides 12v excitation for third-party sensors
  • Pre-configured Smart Sensors get you started fast

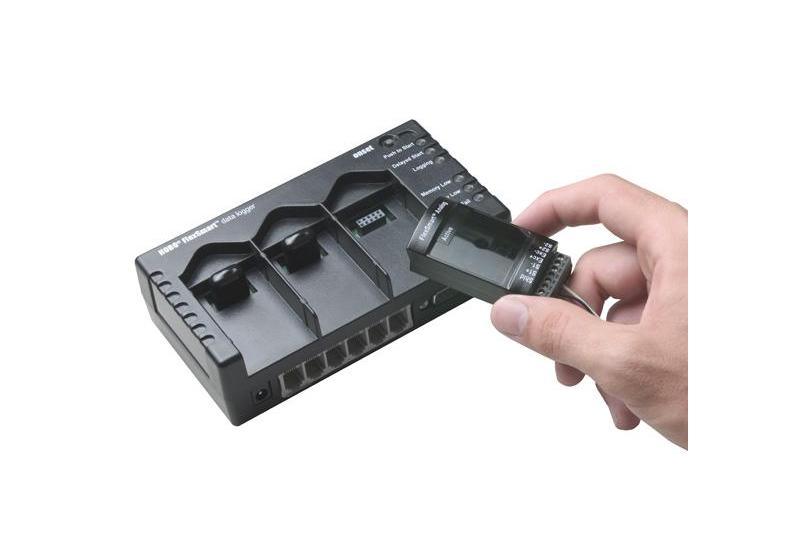

  • Signal conditioning modules retain configurations until you change them, providing plug-and-play convenience for commonly used sensors
  • Flexible power options include battery operation for AC power adapter

Applications

In what environment does this data logger operate?

This data logger operates in an indoor environment.

What measurements does this data logger support?

The H22-001 data logger supports the following measurements: 4-20mA, AC Current, AC Voltage, Air Velocity, Amp Hour (Ah), Carbon Dioxide, Compressed Air Flow, DC Current, DC Voltage, Differential Pressure, Gauge Pressure, Kilowatt Hours (kWh), Kilowatts (kW), Power Factor (PF), Pulse Input, Relative Humidity, Temperature, Volatile Organic Comp., Volt-Amp Reactive, Volt-Amp Reactive hour, Volt-Amps (VA), Water Flow, Watt Hours (Wh) and Watts (W)
