Onset

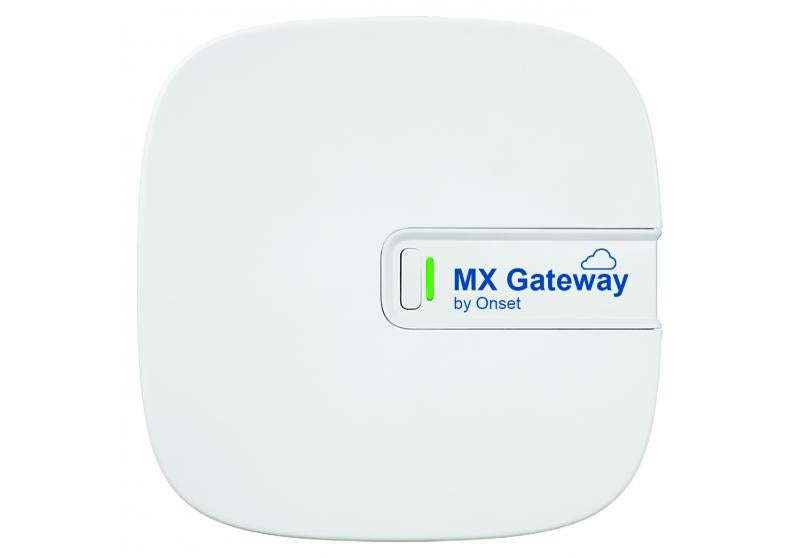

MX Gateway
Automatically transmits HOBO MX Bluetooth logger data to Onset's HOBOlink cloud software. Ideal for obtaining remote access to data from multiple HOBO MX data loggers monitoring indoor environmental conditions in office buildings, residential environments, warehouses, indoor growing facilities, server rooms, museums, and more.
The MX Gateway communicates with compatible HOBO MX data loggers through the HOBOconnect app on a mobile device or Windows computer
Documentation
Quick Start GuideUser Manual
Highlighted Features
- View and analyze data in HOBOlink from any HOBO MX Bluetooth data logger connected to the MX Gateway
- Near real-time measurements transmitted to your HOBOlink dashboard
- Alarm notifications (out-of-range sensor, low battery, stopped logger, missing logger)
- Unlimited cloud storage via HOBOlink
- 100-foot line-of-site communication

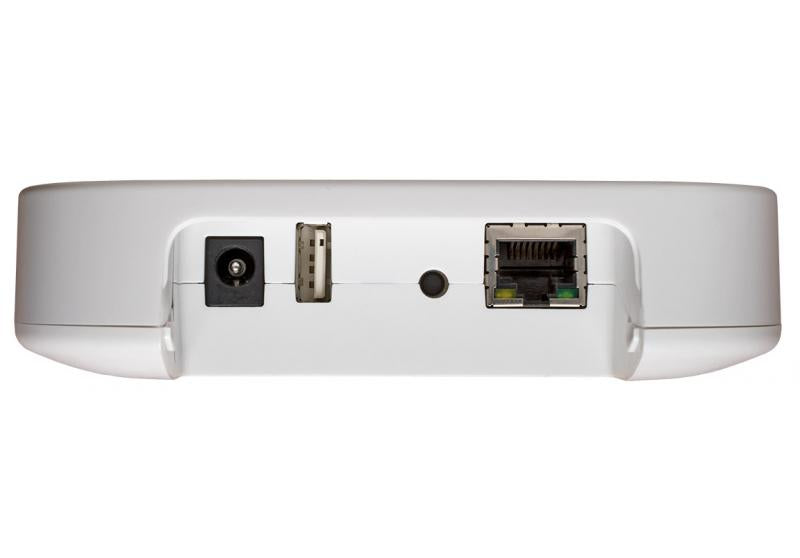

- Wi-Fi & Ethernet connectivity
Specifications
| Specification | Value |
|---|---|
| Transmission Range | Approximately 30.5 m (100 ft) line-of-sight |
| Wireless Data Standard | Bluetooth 5.0 (BLE) |
| Connectivity | WiFi 802.11a/b/g/n 2.4/5 GHz or 10/100 Ethernet |
| Security | WPA and WPA2 (protocols not listed are not supported) |
| TA - Operating Ambient Temperature | 0°C to 60°C |
| TA-EXT Extended Operating Temperature | -20°C to +70°C |
| Power Source | AC adapter or Power over Ethernet (PoE) |
| Dimensions | 12.4 x 12.4 x 2.87 cm (4.88 x 4.88 x 1.13 inches) |
Applications
What measurements does this communication support?
The MXGTW1 communication supports the following measurements: Carbon Dioxide, Light Intensity, Relative Humidity and Temperature
