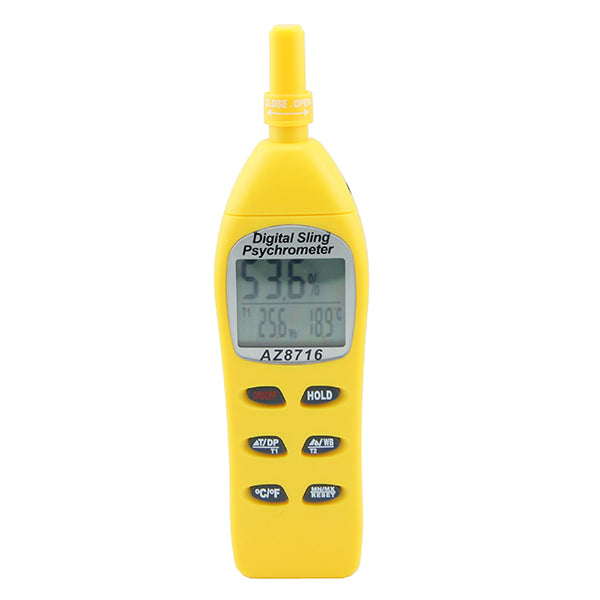

The 8716 AZ thermo hygrometer is designed as a pocket-size, battery that operated easily. It can measure the air temperature, external temperature, Relative Humidity, Dew point temperature, and Wet bulb temperature. Its humidity RH% sensor is protected by a rotate cap, and it could be calibrated with calibrated easily with the 33% and 75% salt bottles.

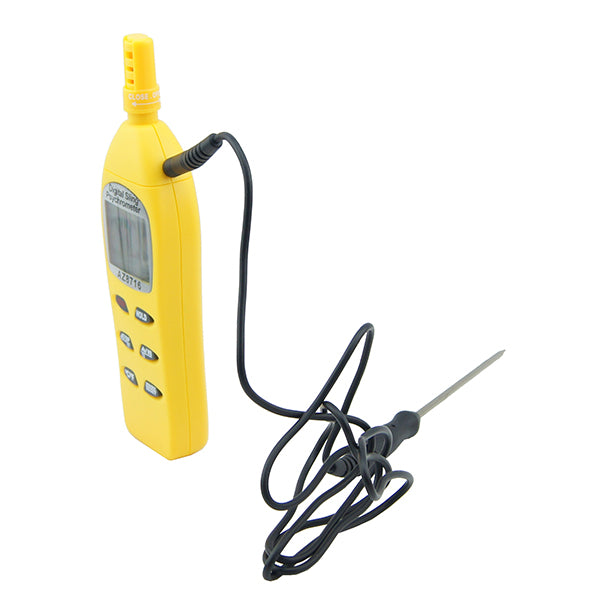

The 8716 AZ Psychrometer could attach the external temperature probe. The meter can show the temperature difference between the air and the probe. The Psychormeter is a microprocessor-based design.
Highlighted Features
-
Digital sling psychrometer
-
rotronic humidity sensor - Capacitance type
-
Triple display: Wet Bulb, Dew Point, or Temperature
-
Wet Bulb, Dew Point calculated in seconds
-
Fast getting the stable reading for the air temperature (T1), external temperature probe (T2), and the difference between T1 and T2
- Quick to get Dew Point & Wet Bulb in 5 seconds covering on application to
-
HVAC & R industry, environments of protective coating or painting field
-
Easy to carry, pocket size with rotate cap design to protect sensors
-
Optional external Temperature probe for measuring food quality
-
Low battery indication
-
Fast response and accurate reading
-
Microprocessor circuitry for reliability
-
Auto power off time frame switchable
- Disable power off
Applications
It could be used as the best humidity monitoring tool for the HVAC engineering school, factory, warehouse, workspace, laboratories, basement, wine cellar, or other controlled environment. No need to whirl the meter or refer to the chart. Users could get the Wet Bulb/ Dry Bulb and Dew point temperature quickly.
Specifications
Model | 8716 |
Temperature Range | -20~50℃ |
Temperature Resolution | 0.1℃, 0.1℉ |
Temperature Accuracy | ±0.6℃ |
Humidity Range | 0.1~99.9% RH |
Humidity Resolution | 0.1% RH |
Humidity Accuracy | ±3%RH (at 25℃ 10~90%RH, others ±5%RH) |
Dew Point Temperature Range | -78.7~50.0℃ |
Wet Bulb Temperature Range | -21.6~50.0℃ |

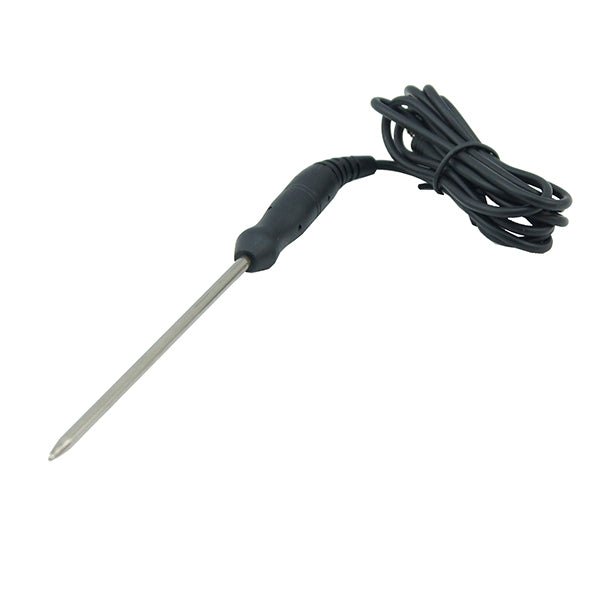

External Temperature Probe | -20~70℃ |
External Temperature Accuracy | ±0.6℃ (-20~50℃), ±1.2℃ others |
Response Time | 60 Seconds Typical |
LCD Size | 33(L) * 28(W) mm |
Operating Temperature | 0~50℃ |
Operating RH% | Humidity <80% |
Storage Temperature | -20~50℃ |
Storage RH% | Humidity <90% |
Meter Size | 178.5(L) * 48.4(W) * 24.7 (H) mm |
Weight | ~100g |
Battery | AAA * 2 PCS |
Standard Package | Meter, Batteries, Manual, Paper Box |
Optional Accessory | Calibration Kits, External Temperature Probe |
