AZ Instrument Corp.
Integrated Fan Air Flow Anemometer
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Integrated Fan Air Flow Anemometer
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

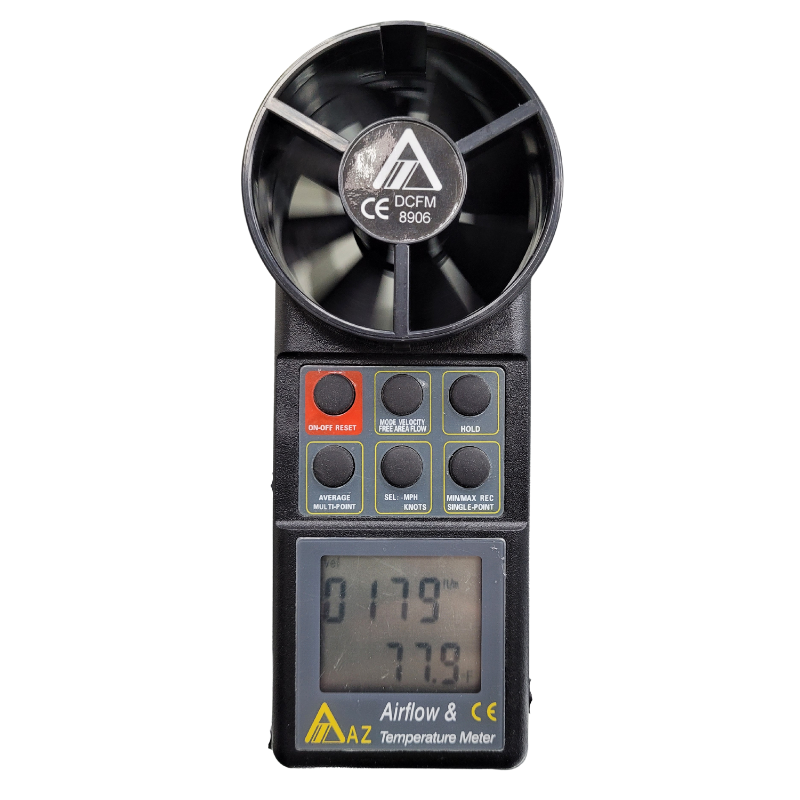

The 8906 AZ wind speed meter has an integral fan to measure the Air Speed, Air Velocity, Air Volume, and Temperature. The meter features versatile functions, use it to check air velocity FPM (Feet per minute) and CFM (Cubic feet per minute) in residential, light commercial, and standard commercial systems.
The 8906 AZ Anemometer was designed and manufactured by AZ Instrument, a well-experienced manufacturer of Anemometer Company.
Highlighted Features
-
Fashion design with one-hand operation
-
Integral fan with temperature sensor built-in
-
Measures air velocity & temperature
-
Wind speed metric and imperial units are selectable
-
Temp. Units C/F selectable
-
Display max. / min. / avg. value
-
Hold function to freeze current readings
-
Auto power off in 20 mins inactivity to save power
-
Sleep and non-sleep modes selectable
-
LCD display flash as a low battery indicator
-
Features 8 points velocity average
-
Air volume calculation
- Excellent tool for measuring cfm with the anemometer
Applications
The 8906 AZ Thermometer Anemometer has many user-friendly features, all the features are accessible through the keypads. It could be the best choice as the wind speed monitoring device in HVAC (Heating, Ventilation, Refrigerating, and Air Conditioning) or industrial-related application.
Specifications
| Model | 8906 |
| Wind Speed Range | 0.4~30 m/s; 80~5900 ftm |
| Wind Speed Accuracy | ±(2% of reading+0.2 m/s) |
| Air Temperature Range | -10~50.0℃ |
| Air Temperature Resolution | 0.1℃, 0.1℉ |
| Air Temperature Accuracy | ±1℃ |
| Wind Speed Unit (m/s) | YES |
| Wind Speed Unit (ft/m) | YES |
| Wind Speed Unit (KM/H) | YES |
| Wind Speed Unit (MPH) | YES |
| Wind Speed Unit (knot) | YES |
| Air Volume Unit (cms) | YES |
| Air volume Unit (cfm) | YES |
| Temperature Response Time | 60 seconds (typical) |
| LCD Update | Every second |
| Air Volume Display | 0~99999 m3/minute |
| Air Volume Resolution | 0.1 (0~999.9) or 1 (1000~9999) |
| LCD Size | 40(L) * 34(W) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -10~50℃ |
| Storage RH% | Humidity ＜90% |
| PC Link | YES |
| 8 Pints Velocity Average | YES |
| Battery Life | 100 Hours |
| Size | Meter: 183(L) * 76(W) * 45(H) mm Impeller: 70 |
| Weight | ~150g |
| Battery | 9V Battery *1 PC |
| Optional Accessory | Software Kit |
| Standard Package | Meter, Battery, Manual, Hard Carry Case |
