Intemp

CX500 Transport Series Temp Data Loggers

Sale priceR 2,168.92
SKU: CX503

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Which logger do you think you require?:CX503 - Bluetooth Temperature (365 Day - Multiple Use)
Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

CX500 Transport Series Temp Data Loggers

CX503 - Bluetooth Temperature (365 Day - Multiple Use)

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

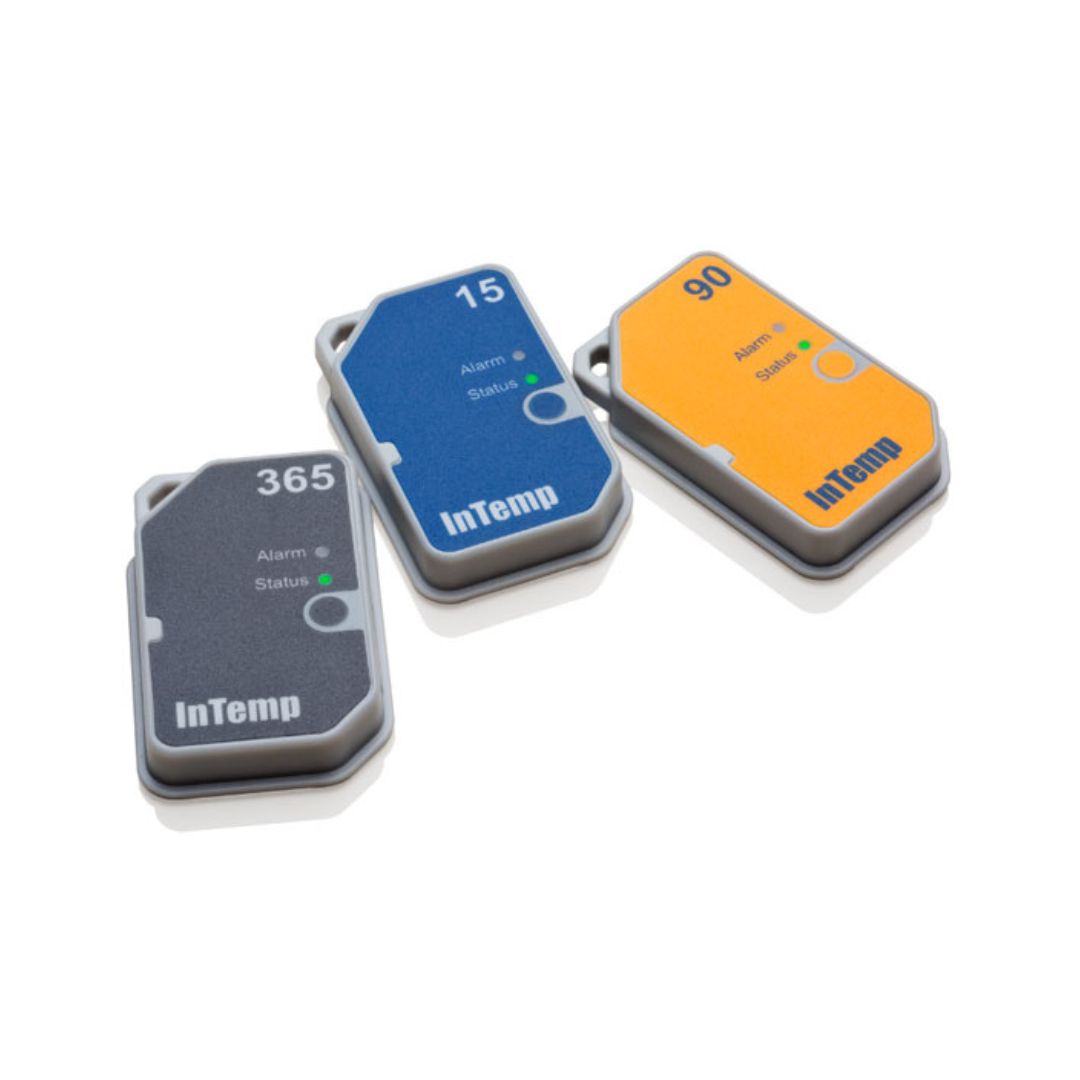

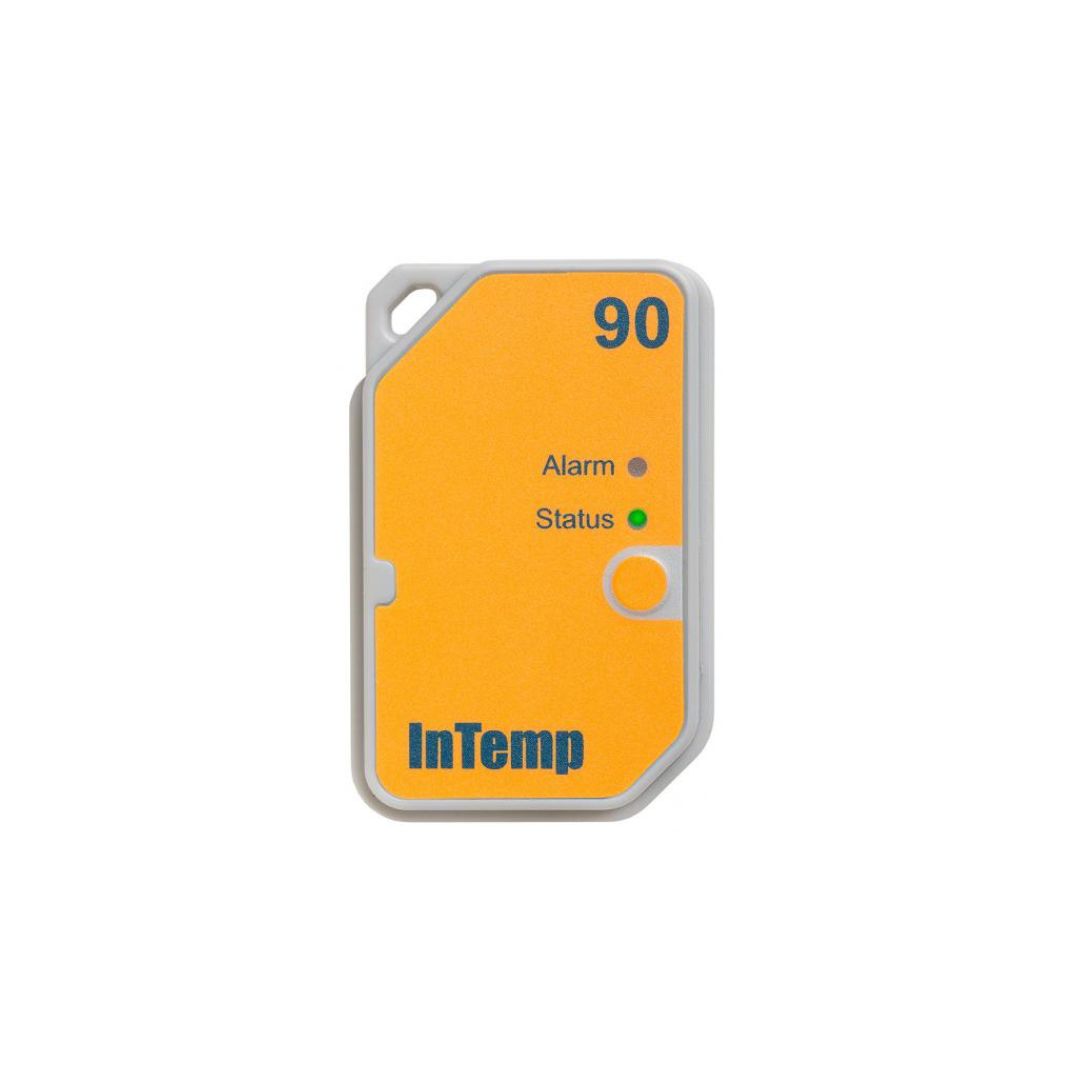

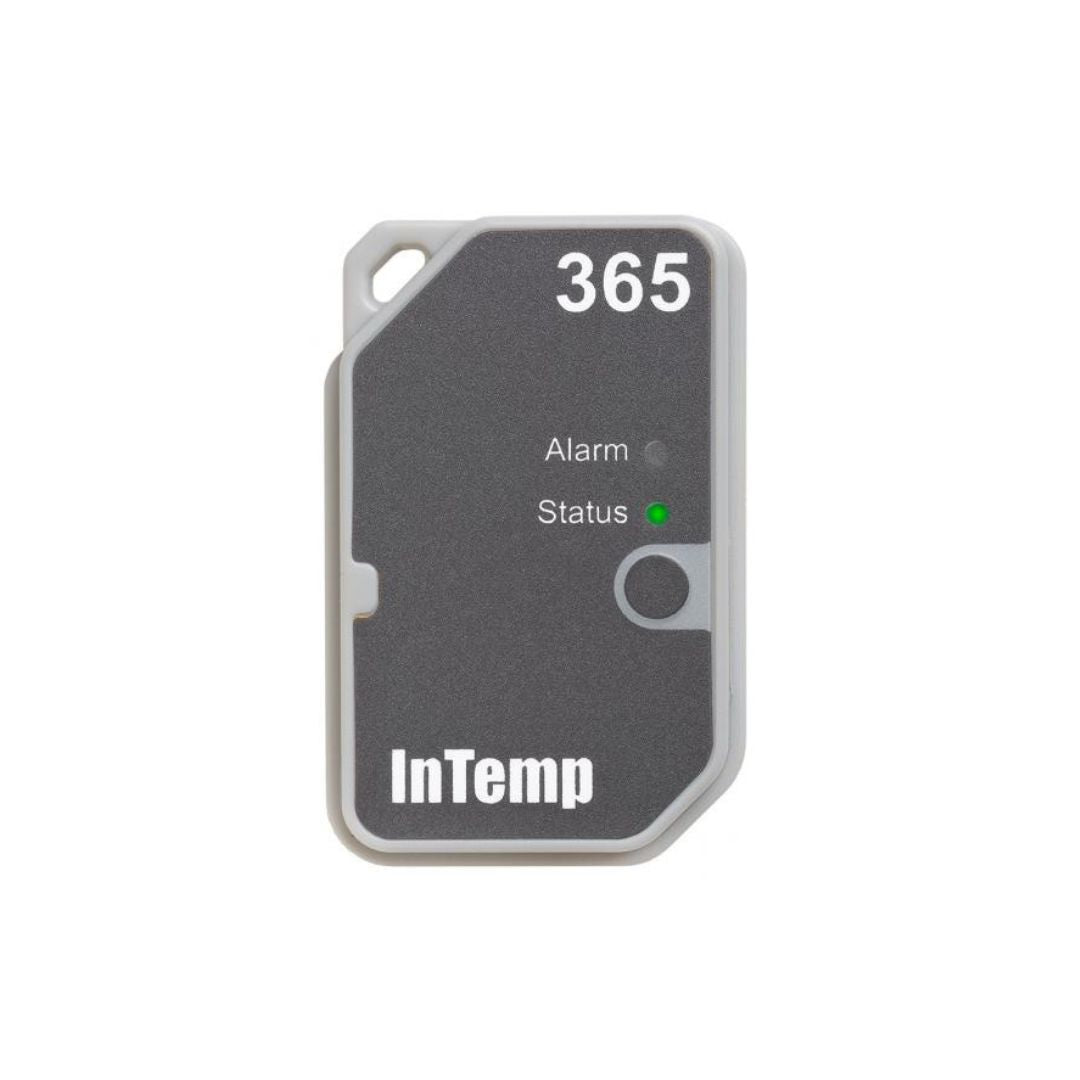

The InTemp CX503 and CX502 are Bluetooth data loggers designed for Cold Chain, CRT, and Frozen shipments. The CX503 is a multiple-use logger that records temperature data for up to a year, making it ideal for closed-loop monitoring, equipment validation, and qualification testing. On the other hand, the CX502 is a single-use logger with a recording duration of up to 90 days, making it suitable for sea containers, long haul, and parcel shipments.

Both loggers can be easily configured using the InTemp app on your mobile device, offering multiple preset configurations or the option to set up custom configurations to meet specific needs. With built-in alarms, both loggers provide timely alerts for temperature excursions during shipment.

Accessing logger reports is convenient, allowing you to quickly download data to your phone or tablet. For more extensive data analysis and management, you can upload the data to an InTempConnect® account, where you can analyze and export data as needed.

For enhanced capabilities, the CX503 is compatible with the optional CX Gateway, which enables remote notifications of temperature excursions and automatic data downloads from loggers within range.

Moreover, the InTemp CX503 comes with a 3-Point Certificate of Calibration, valid for one year from the date of purchase, providing assurance in the accuracy and reliability of the recorded data, critical for making important product-disposition decisions.

Whether you require long-term or shorter-term temperature monitoring, both InTemp CX503 and CX502 Bluetooth data loggers offer reliable solutions for maintaining the integrity of temperature-sensitive shipments and ensuring product quality throughout the supply chain.

Documentation

User Manual
Data sheet





Highlighted Features

  •  Multiple-use (CX503) | Single-use logger (CX502)
  • Records temperature data for up to 90 days
  • Ideal for Cold Chain, CRT, and Frozen shipments
  • Suitable for sea container, long haul, and parcel shipments
  • Integrates with mobile and cloud platforms for a 21 CFR Part 11 compliant solution
  • Enables fast, remote data transfer; ideal for clinical logistics
  • Eliminates the need to open sealed containers to retrieve data
  • Real-time alerts and automatic data downloads with optional InTemp CX Gateway device
  • Shortens logger-handling times; no PC or cables are required
  • Ensures secure data via encrypted technology
  • Meets Good Distribution Practice (GDP) requirements for NIST traceable calibration
  • Both data loggers offer a secure and efficient solution for monitoring temperature-sensitive shipments, providing real-time alerts, remote data access, and compliance with regulatory standards.

Specifications

Feature InTemp CX503 (Multiple Use) InTemp CX502 (Single Use)
Logger Operating Range -30°C to 70°C (-22°F to 158°F) -30°C to 70°C (-22°F to 158°F)
Radio Power 1 mW (0 dBm) 1 mW (0 dBm)
Transmission Range Approximately 30.5 m (100 ft) Approximately 30.5 m (100 ft)
Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart) Bluetooth Low Energy (Bluetooth Smart)
Type Multiple Use Single-Use
Duration Up to 1 year 90 days
Shelf Life Up to 1 year Up to 1 year
Logging Rate 1 second to 18 hours 1 second to 18 hours
Battery CR2450 3V lithium, not replaceable CR2450 3V lithium, not replaceable
Battery Life 1 year, typically with 1-minute interval Lasts for the duration specified within 1-year shelf life
Memory 14,000 measurements 14,000 measurements
Full Memory Download Time Approximately 30 seconds Approximately 30 seconds
Dimensions 6.9 x 4.5 x 1.1 cm (2.71 x 1.76 x 0.42 inches) 6.9 x 4.5 x 1.1 cm (2.71 x 1.76 x 0.42 inches)
Weight 25.5 g (0.90 oz) 25.5 g (0.90 oz)
Environmental Rating IP67 IP67
Fine Print Passed RTCA DO160G, part 21H Passed RTCA DO160G, part 21H
Temperature Sensor Range -30°C to 70°C (-22°F to 158°F) -30°C to 70°C (-22°F to 158°F)
Temperature Sensor Accuracy ±1.0°C from -30°C to -5°C ±1.0°C from -30°C to -5°C
±1.8°F from -22°F to 23°F ±1.8°F from -22°F to 23°F
±0.5°C from -5°C to 50°C ±0.5°C from -5°C to 50°C
±0.9°F from 23°F to 122°F ±0.9°F from 23°F to 122°F
±1.0°C from 50°C to 70°C ±1.0°C from 50°C to 70°C
±1.8°F from 122°F to 158°F ±1.8°F from 122°F to 158°F
Temperature Sensor Resolution 0.04°C 0.04°C
0.072°F 0.072°F



Please note that both loggers are IP67 rated, passed RTCA DO160G part 21H, and use the same wireless data standard (Bluetooth Low Energy) for data transmission. The main differences lie in their type, duration, and battery life, making them suitable for different monitoring applications.
