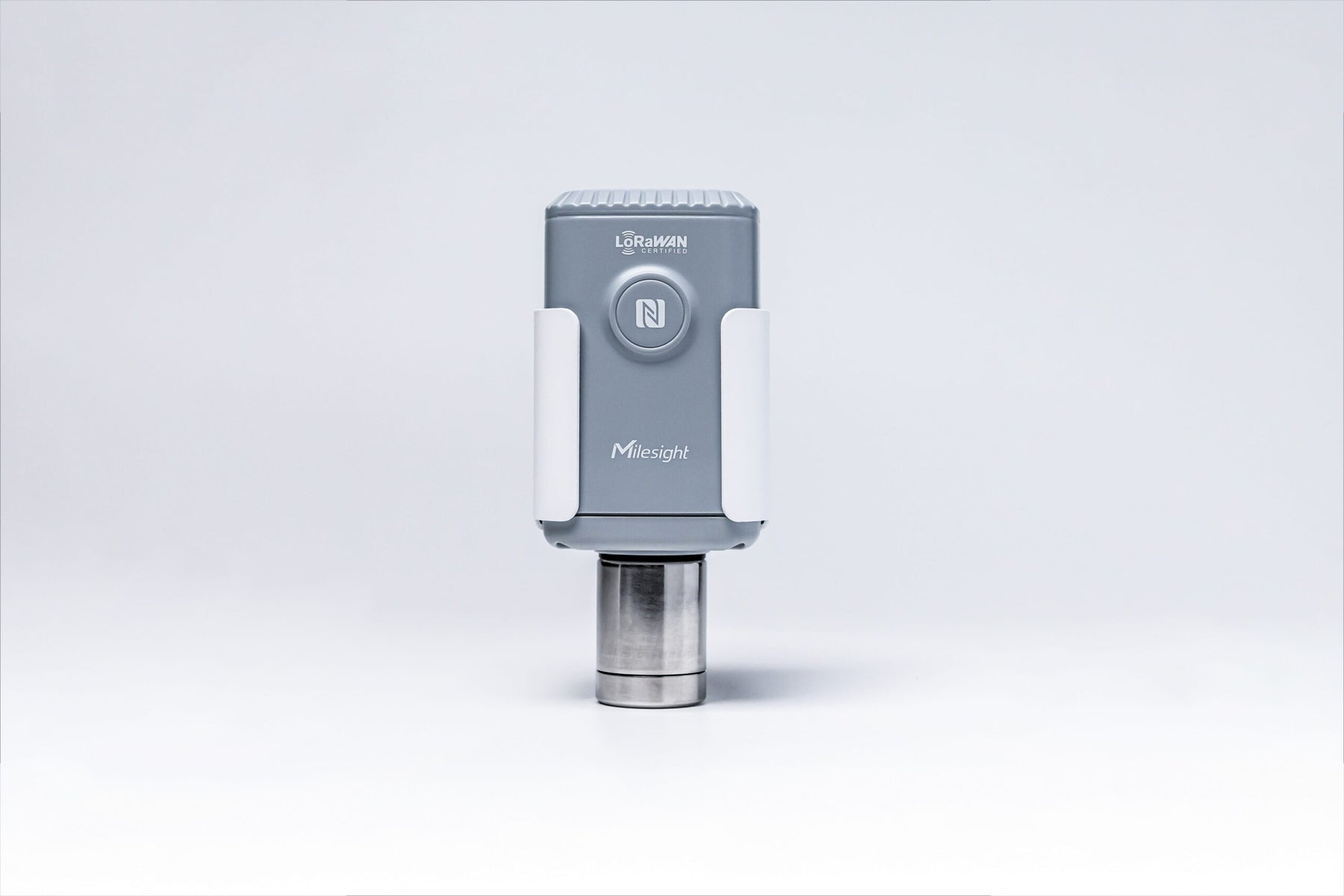

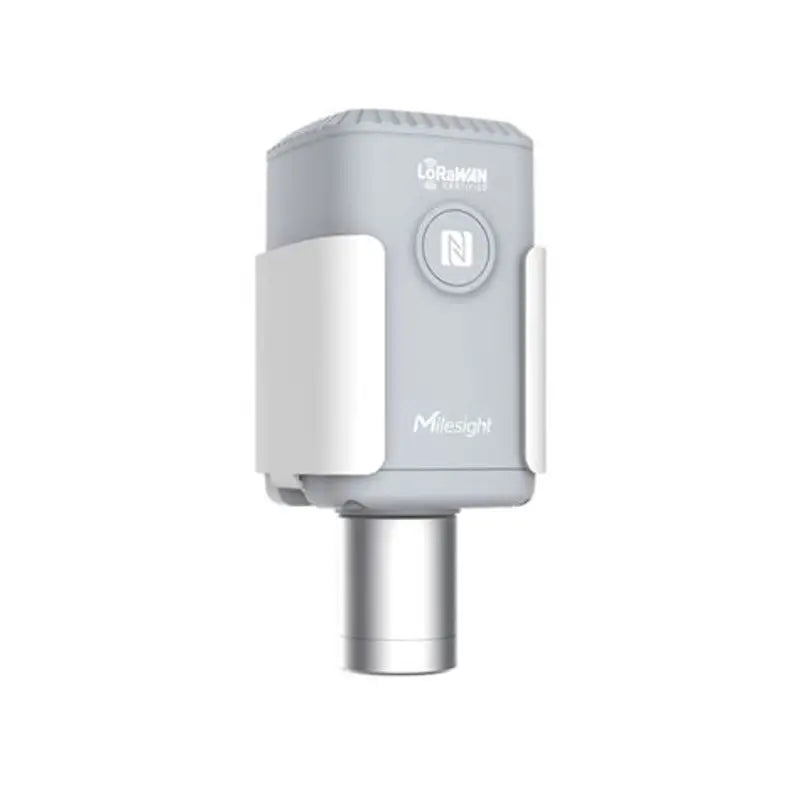

The Milesight EM500-CO2-868M is a robust LoRaWAN® industrial air quality sensor designed to measure carbon dioxide (CO₂), temperature, humidity, and barometric pressure in harsh indoor and outdoor environments. It uses an NDIR CO₂ sensor combined with MEMS environmental sensors to provide accurate and stable air quality monitoring. With its long-range LoRaWAN® communication and ultra-low power design, it is widely used in smart buildings, agriculture, warehouses, basements, and environmental monitoring systems.
Key Features
- Measures CO₂, temperature, humidity, and barometric pressure (4-in-1 sensing)
- High-precision NDIR CO₂ sensor (400-5000 ppm range)
- Long-range LoRaWAN® wireless communication (up to ~10 km LOS)
- Ultra-low power design with up to 10 years battery life
- Industrial-grade IP65/IP67 rugged enclosure (model dependent)
- NFC-based configuration via mobile app (no wiring required)
- Supports data logging and retransmission
- Compatible with standard LoRaWAN gateways and IoT cloud platforms
- High accuracy environmental sensing for indoor air quality control
- Designed for harsh environments (dust, humidity, temperature variation resistance)
Specifications
| Parameter | Specification |
|---|---|
| Model | EM500-CO2-868M |
| Sensor Type | CO₂ (NDIR), Temperature, Humidity, Barometric Pressure |
| CO₂ Measurement Range | 400 -5000 ppm |
| CO₂ Accuracy | ±(30 ppm + 3% of reading) |
| CO₂ Resolution | 1 ppm |
| Temperature Range | -30°C to +70°C |
| Temperature Accuracy | ±0.3°C (0°C to 70°C) / ±0.6°C (-30°C to 0°C) |
| Humidity Range | 0-100% RH |
| Humidity Accuracy | ±3% RH (10-90%), ±5% RH (extreme ranges) |
| Pressure Range | 300 – 1100 hPa |
| Pressure Accuracy | ±1 hPa |
| Wireless Technology | LoRaWAN® |
| Frequency Band | EU868 MHz |
| Mode | OTAA / ABP Class A |
| Transmission Power | 16 dBm |
| Sensitivity | -137 dBm @ 300 bps |
| Communication Range | Up to 10 km (line of sight) |
| Antenna | Internal |
| Configuration | NFC Mobile App / Downlink |
| Data Storage | 1,000 records |
| Power Supply | 1 × 19,000 mAh Li-SOCl₂ battery |
| Battery Life | Up to 10 years |
| Operating Temperature | -30°C to +70°C |
| Protection Rating | IP65 |
| Housing Material | ABS + PC |
| Dimensions | 147.9 × 71 × 69.5 mm |
| Installation | Wall / Pole / DIN rail mount |
| Certifications | CE, FCC, ICASA, RoHS |
