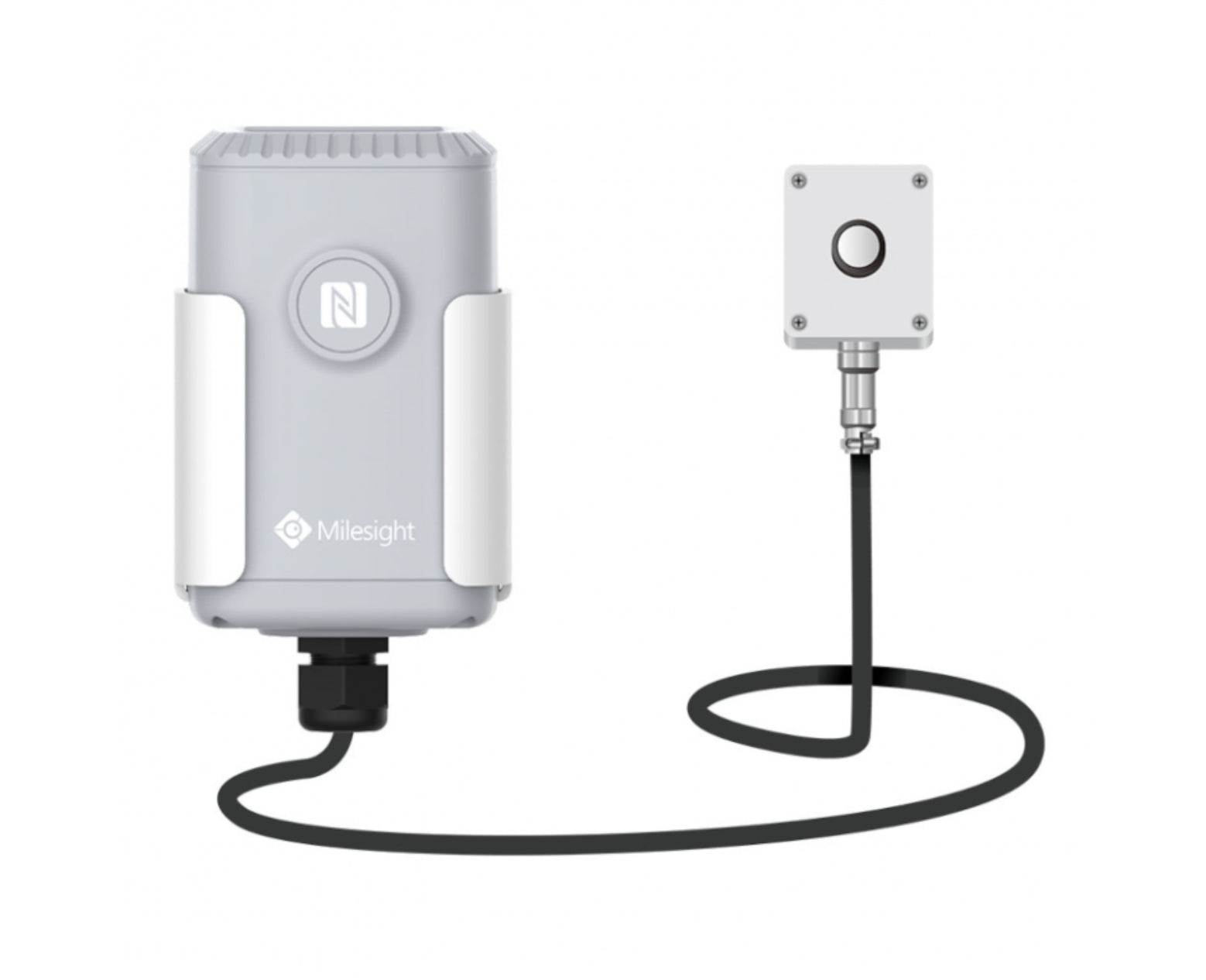

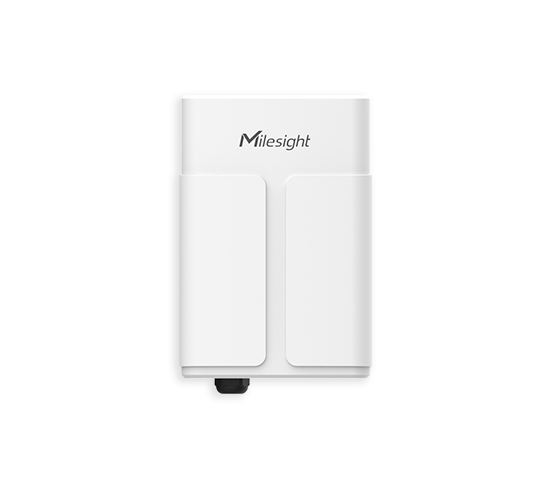

Milesight EM500-LGT-868M Light Sensor (RY)
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Milesight EM500-LGT-868M Light Sensor (RY)
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa
The Milesight EM500-LGT-868M is an industrial-grade LoRaWAN® light intensity sensor designed to measure ambient light levels in harsh outdoor and industrial environments. It uses a high-precision photosensitive sensor to detect light intensity and transmits data wirelessly over long distances using LoRaWAN® technology.
It is commonly used in smart lighting systems, agriculture (greenhouses), urban street lighting control, and environmental monitoring. The device is optimized for ultra-low power consumption and can operate for up to 10 years on a single battery, making it ideal for remote, maintenance-free deployments.
Key Features
- Measures ambient light intensity from 0 to 100,000 lux
- High accuracy of approximately ±3%
- Resolution of 1 lux
- Long-range LoRaWAN® communication (up to 10-15 km LOS)
- Ultra-low power design with up to 10 years battery life
- IP67-rated rugged enclosure for outdoor use
- NFC-based configuration via mobile app (Milesight ToolBox)
- Built-in data storage and retransmission capability
- Supports threshold alarms for light level changes
- Compatible with Milesight IoT Cloud platform
- Designed for smart city lighting, agriculture, and greenhouse automation.
Specifications
| Parameter | Specification |
|---|---|
| Model | EM500-LGT-868M |
| Sensor Type | Ambient Light Sensor |
| Measurement Range | 0-100,000 lux |
| Accuracy | ±3% |
| Resolution | 1 lux |
| Communication | LoRaWAN® |
| Frequency Band | EU868 MHz |
| LoRaWAN Mode | OTAA / ABP Class A |
| Transmission Power | 16 dBm |
| Sensitivity | -137 dBm @ 300 bps |
| Antenna | Internal |
| Configuration | NFC / Mobile App / USB Type-C |
| Data Storage | 1,000 records |
| Alarm Functions | Threshold alarm |
| Power Supply | 1 × 19,000 mAh ER34615 Li-SOCl₂ battery |
| Battery Life | Up to 10 years (10 min interval) |
| Operating Temperature | -30°C to +60°C |
| Humidity | 0-100% RH (non-condensing) |
| Protection Rating | IP67 |
| Housing Material | ABS + PC |
| Sensor Cable Length | 3 m |
| Dimensions | ~105.4 × 71 × 69.5 mm |
| Weight | ~333 g |
| Installation | Wall / Pole / DIN rail mounting |
| Certifications | CE, FCC, RoHS |
