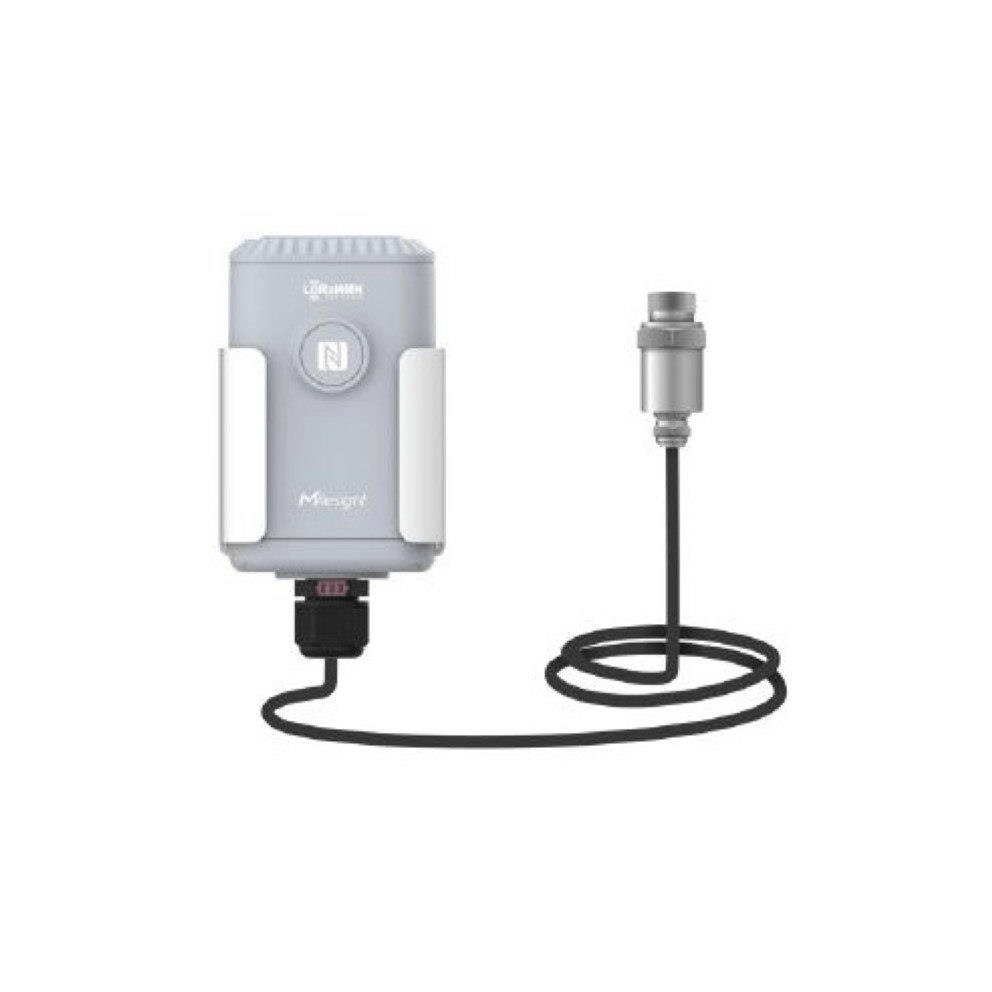

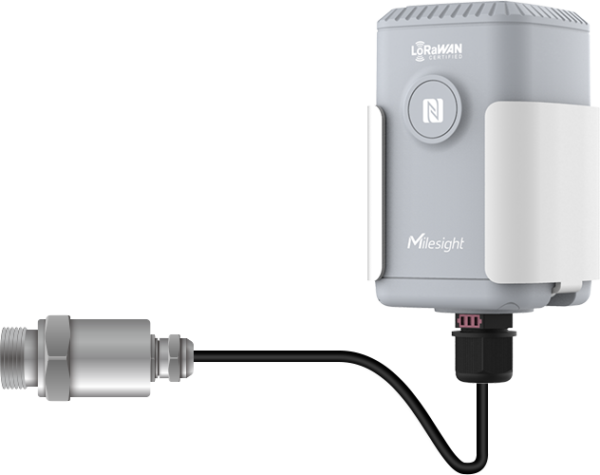

The Milesight EM500-PP-868M is a high-precision LoRaWAN® pipe pressure sensor designed for continuous monitoring of liquid and gas pressure in pipelines, tanks, and industrial systems. It uses a rugged external stainless-steel pressure transducer (G1/2 male thread) and transmits data wirelessly via LoRaWAN® for remote monitoring.
It is built for harsh environments, offering strong resistance to corrosion, vibration, and temperature variation, making it ideal for water networks, oil & gas systems, pump monitoring, and leak detection.
Key Features
- High-precision pipe pressure measurement (±0.5% FS accuracy)
- Pressure range up to 1600 kPa (16 bar)
- LoRaWAN® long-range communication (EU868 model)
- Up to 10 km transmission range (line-of-sight)
- Industrial 316L stainless steel pressure probe
- G 1/2” male process connection
- Resistant to shock, vibration, and corrosion
- IP67/IP65-rated protection for harsh environments
- Built-in 19,000 mAh Li-SOCl₂ battery (up to 10 years life)
- NFC configuration via mobile app (Milesight ToolBox)
- Local data storage with retransmission capability
- Threshold alarm for pressure abnormality detection
- Compatible with Milesight IoT Cloud platform
- Suitable for both liquid and gas pressure monitoring
Specifications
| Parameter | Specification |
|---|---|
| Model | EM500-PP-868M (G1/2M-4842) |
| Sensor Type | Pipe Pressure Sensor |
| Pressure Type | Vented Gauge Pressure |
| Measurement Range | 0 -1600 kPa (0 -16 bar) |
| Accuracy | ±0.5% FS |
| Resolution | 1 kPa (0.01 bar) |
| Overload Capacity | 150% FS |
| Long-term Stability | ±0.3% FS/year |
| Process Connection | G 1/2” Male |
| Medium | Liquid or Gas |
| Communication | LoRaWAN® |
| Frequency Band | EU868 MHz |
| Mode | OTAA / ABP Class A |
| Transmit Power | 16 dBm |
| Sensitivity | -137 dBm @ 300 bps |
| Antenna | Internal |
| Configuration | NFC / USB Type-C / Downlink |
| Data Storage | 1,000 records |
| Alarm Function | Threshold Alarm |
| Power Supply | 1 × 19,000 mAh ER34615 Li-SOCl₂ battery |
| Battery Life | Up to 10 years |
| Operating Temperature | -30°C to +70°C (transceiver) |
| Sensor Temperature Range | -10°C to +70°C |
| Humidity Range | 0–100% RH (non-condensing) |
| Protection Rating | IP67 (transceiver), IP65 (sensor head) |
| Housing Material | ABS + PC (transceiver), 316L stainless steel (sensor) |
| Cable Length | 1.5 m |
| Dimensions | 105.4 × 71 × 69.5 mm (transceiver) |
| Weight | ~328 g (with battery & bracket) |
| Installation | Wall / Pole / DIN rail mount |
| Certifications | CE, FCC, ICASA, RoHS |
