Milesight EM500-PT100-868M Industrial Temperature Sensor (T800)
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Milesight EM500-PT100-868M Industrial Temperature Sensor (T800)
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

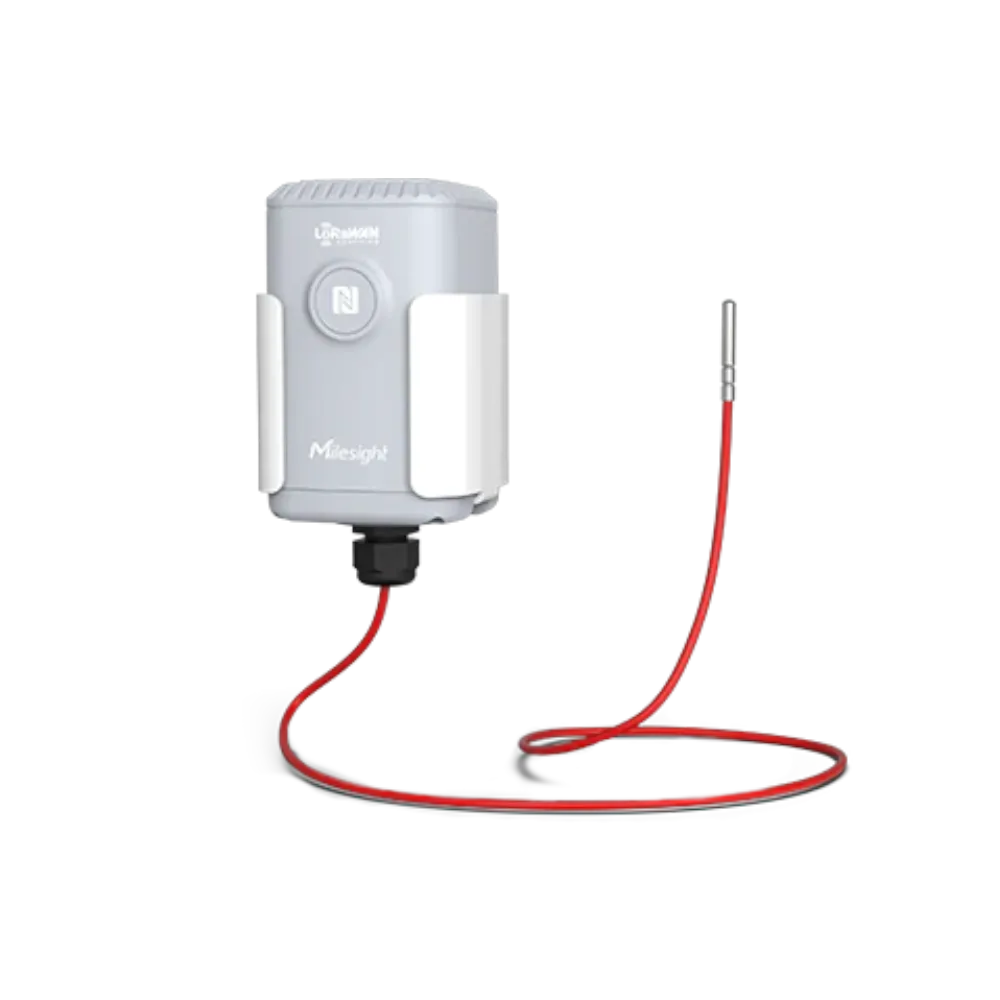

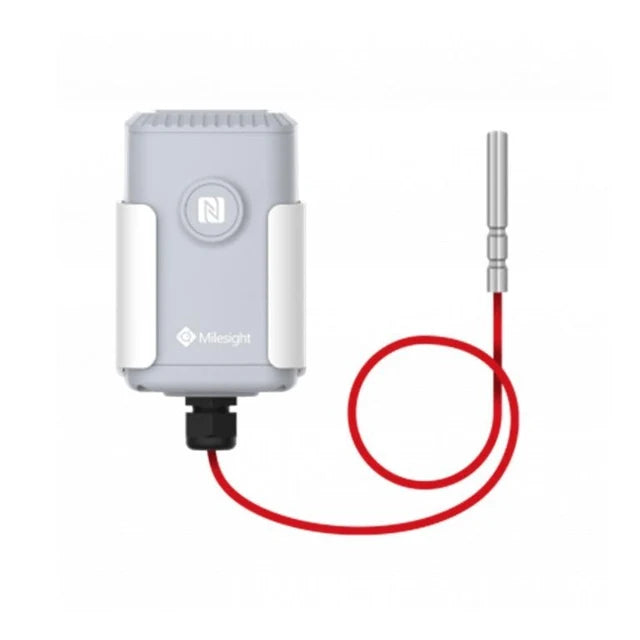

The Milesight EM500-PT100-868M-T800 is a LoRaWAN® industrial temperature sensor designed for monitoring extreme temperatures in harsh industrial environments. It utilizes a high-precision PT100 platinum resistance temperature probe capable of measuring temperatures from -50°C to +800°C, making it ideal for boilers, ovens, furnaces, pipelines, industrial machinery, laboratories, and manufacturing processes. The sensor features an IP67-rated enclosure, NFC configuration, and long-range LoRaWAN® wireless communication for reliable remote monitoring. It is powered by a 19,000 mAh battery that can provide up to 10 years of operation.
Key Features
- High-precision PT100 platinum temperature sensor
- Wide measurement range of -50°C to +800°C (T800 version)
- 3-wire PT100 connection for improved measurement accuracy
- LoRaWAN® wireless communication for long-range monitoring
- Up to 10 km communication range in line-of-sight environments
- Up to 10 years battery life with a 19,000 mAh replaceable battery
- IP67-rated waterproof and dustproof enclosure
- Corrosion-resistant cable for industrial applications
- NFC configuration via smartphone
- Internal antenna design
- Local data storage and retransmission capability
- Threshold and change alarms
- Compatible with Milesight IoT Cloud and standard LoRaWAN® gateways
- UV-resistant and vibration-resistant construction
- Suitable for industrial machines, boilers, ovens, pipes, laboratories, and process monitoring applications.
Specifications
| Parameter | Specification |
|---|---|
| Model | EM500-PT100-868M-T800 |
| Sensor Type | PT100 Platinum Resistance Temperature Sensor |
| Measurement Range | -50°C to +800°C |
| Connection Type | 3-Wire PT100 |
| Accuracy | ±0.5°C |
| Resolution | 0.1°C |
| Wireless Technology | LoRaWAN®, Milesight D2D |
| Frequency Band | EU868 MHz |
| LoRaWAN Mode | OTAA / ABP Class A |
| Transmit Power | 16 dBm |
| Sensitivity | -137 dBm @ 300 bps |
| Antenna | Internal |
| Communication Range | Up to 10 km (Line of Sight) |
| Data Storage | 1,000 Records |
| Alarm Functions | Threshold Alarm, Change Alarm |
| Configuration | NFC Mobile App, USB Type-C, Downlink |
| Power Supply | 1 × 19,000 mAh ER34615 Li-SOCl₂ Battery |
| Battery Life | Up to 10 Years |
| Operating Temperature | -30°C to +70°C |
| Humidity | 0-100% RH (Non-condensing) |
| Protection Rating | IP67 |
| Housing Material | ABS + PC |
| Dimensions | 105.4 × 71 × 69.5 mm |
| Weight | 362.7 g |
| Cable Length | 1.5 m (Customizable) |
| Probe Type | Straight Tube (Customizable) |
| Installation | Pole Mount, Wall Mount, DIN Rail |
| Certifications | CE, FCC, ICASA, RoHS, Telec |
