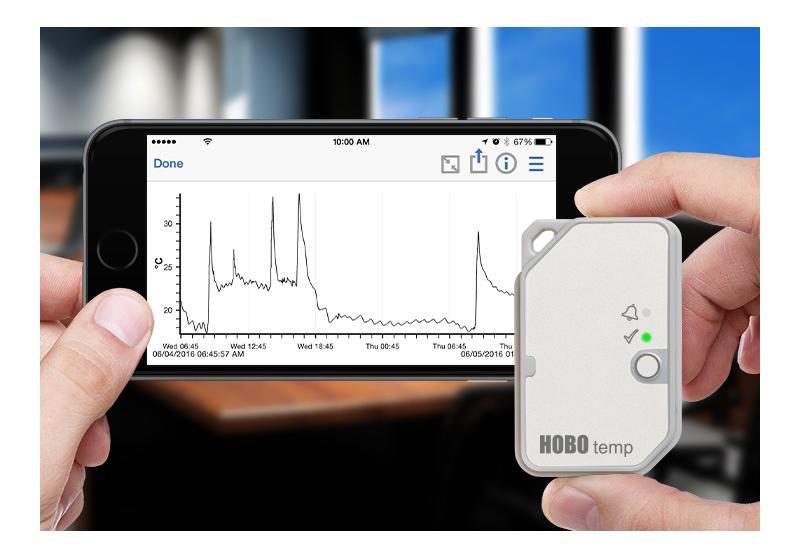

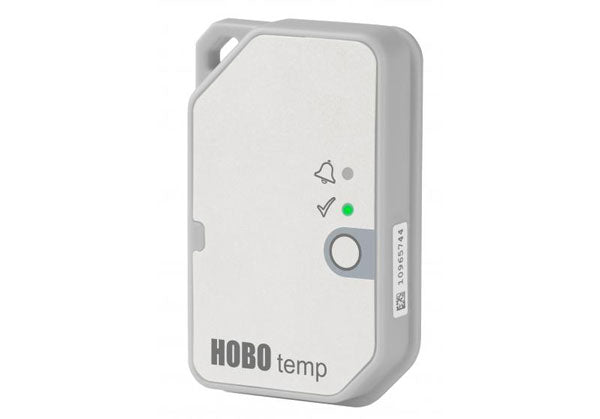

The HOBO MX100 Temp logger measures temperature in indoor environments. With an IP67 environmental rating, the logger can be deployed indoors where moisture may form. This Bluetooth® Low Energy (BLE)-enabled logger is designed for wireless communication with a phone, tablet, or computer.
Using the HOBOconnect® app, you can easily configure the logger and then download logged data to view or export it for further analysis.
The logger has a builtin alarm you can configure to trip at thresholds you specify. Designed with a non-replaceable lithium battery, this logger also has a power-saving mode that allows you to use the Bluetooth signal only when needed to maximize battery life.
Documentation
Data SheetUser Manual
Highlighted Features
- Set up and offload loggers wirelessly from your mobile device or Windows computer
- Exceptional value for the convenience of a Bluetooth communication logger
- Splash-proof design enables use in damp environments and spray-down applications
- Easy to deploy, offload, and share temperature data using the HOBOconnect app
- Visual alarms on the logger display and mobile app keep you notified of problems
- Set up and start monitoring in minutes!
Specifications
| Feature | Metric Specification | Imperial Specification |
|---|---|---|
| Temperature Sensor | ||
| Range | -30° to 70°C | -22° to 158°F |
| Accuracy | ±1.0°C from -30° to -5°C | ±1.8°F from -22° to 23°F |
| ±0.5°C from -5° to 50°C | ±0.9°F from 23° to 122°F | |
| ±1.0°C from 50° to 70°C | ±1.8°F from 122° to 158°F | |
| Resolution | 0.04°C | 0.072°F |
| Drift | <0.01°C per year | 0.018°F per year |
| Response Time | 6 minutes typical to 90% in open air moving 1 m/s, unmounted | |
| Logger | ||
| Operating Range | -30° to 70°C | -22° to 158°F |
| Radio Power | 1 mW | 0 dBm |
| Transmission Range | Approximately 30.5 m line-of-sight | Approximately 100 ft line-of-sight |
| Wireless Data Standard | Bluetooth Low Energy (Bluetooth Smart) | |
| Logging Rate | 1 second to 18 hours | |
| Time Accuracy | ±1 minute per month at 25°C | ±1 minute per month at 77°F |
| Battery | CR2450 3V lithium, not replaceable | |
| Battery Life | 1 year, typical with 1-minute logging and Bluetooth Always On enabled; 2 years, typical with 1-minute logging and Bluetooth Always On disabled | |
| Memory | 30,000 measurements | |
| Full Memory Download Time | Approximately 30 seconds | |
| Physical | ||
| Dimensions | 6.9 x 4.5 x 1.1 cm | 2.71 x 1.76 x 0.42 inches |
| Weight | 25.5 g | 0.90 oz |
| Environmental Rating | IP67 |
Applications
In what environment does this data logger operate?
This data logger operates in an indoor environment.
What measurements does this data logger support?
The MX100 data logger supports the following measurement: Temperature
