Temp/RH Bluetooth Data Logger

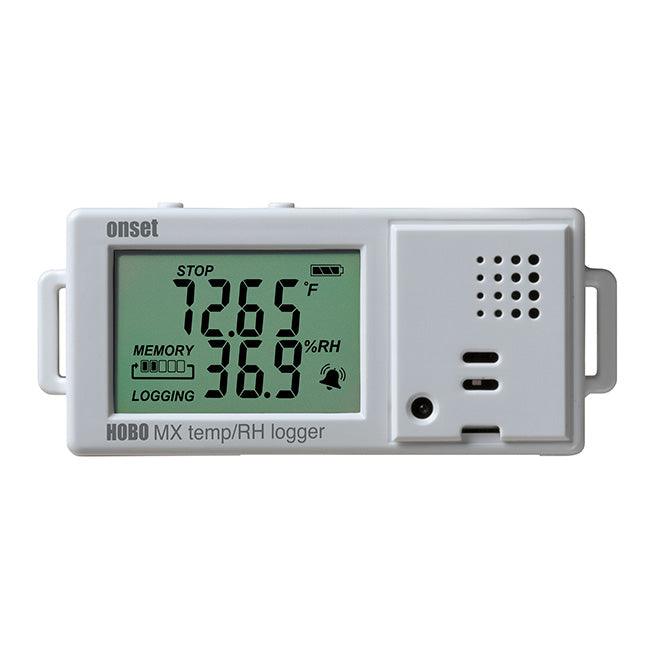

Onset’s HOBO MX1101 data logger measures and transmits temperature and relative humidity data wirelessly to mobile devices via Bluetooth Low Energy (BLE) technology.

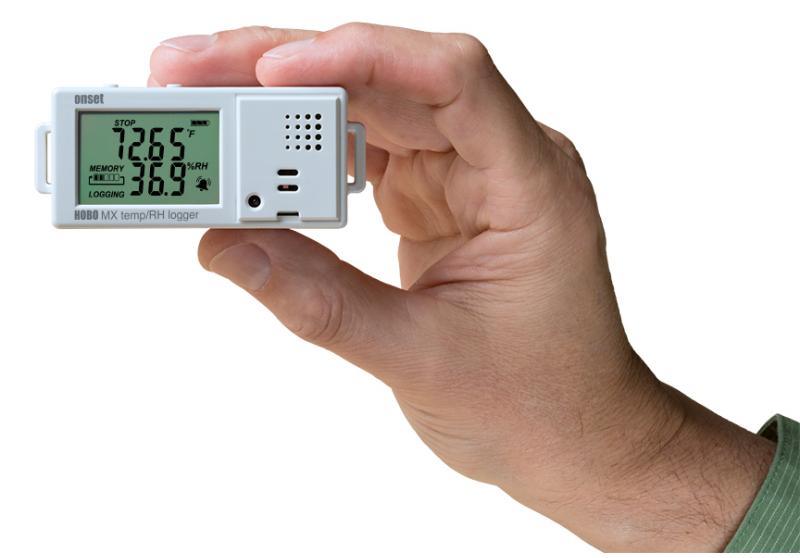

The self-contained wireless data logger, which works with Onset’s free HOBOconnect app for logger setup and data management, enables you to access data anytime from a mobile device for iOS or Android over a 100-foot range, and it requires no dedicated equipment beyond a mobile device for configuring the logger or reading out data.

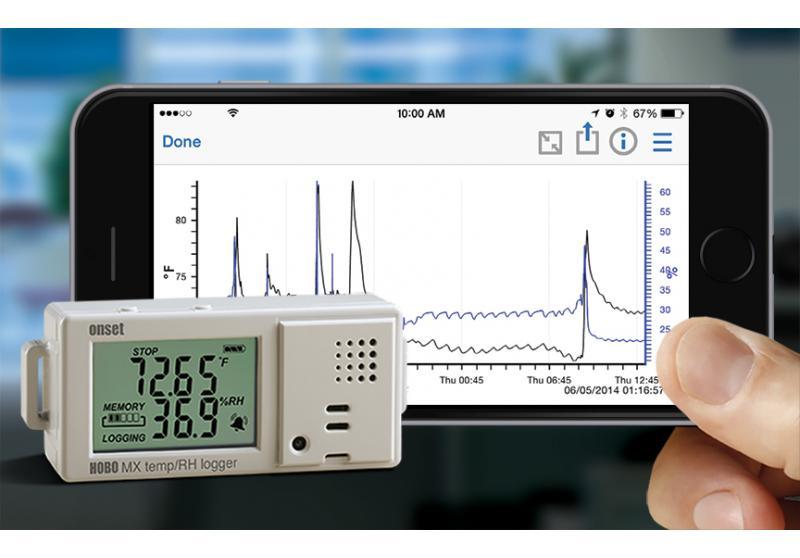

Using Onset’s free HOBOconnect app, you can view data in graphs, check the operational status of loggers, configure alarm notifications, and share data files.
Documentation
Data SheetUser Manual
Highlighted Features
- Wireless communication via Bluetooth Low Energy (BLE) technology
- Easy to deploy and offload using the free HOBOconnect app
- Visual and audible high & low alarm thresholds
- Stores 84,000 measurements
- Accuracy: +/- 0.2C and +/- 2%RH
- Find me/pager feature
- Patented connectivity technology
Specifications
| Specification | Value |
|---|---|
| Temperature Sensor | |
| Range | -20° to 70°C (-4° to 158°F) |
| Accuracy | ±0.21°C from 0° to 50°C (see manual for plot) / ±0.38°F from 32° to 122°F (see manual for plot) |
| Resolution | 0.024°C at 25°C (see manual for plot) / 0.04°F at 77°F (see manual for plot) |
| Drift | <0.1°C per year / 0.18°F per year |
| RH Sensor | |
| Range | 1% to 90% (non-condensing) |
| Accuracy | ±2% from 20% to 80% typical (max ±4.5% incl. hysteresis at 25°C/77°F); Below 20% and above 80% ±6% typical |
| Resolution | 0.01% |
| Drift | <1% per year typical |
| Response Time (Temperature) | 7:30 minutes in air moving 1 m/s / 7:30 minutes in air moving 2.2 mph |
| Response Time (RH) | 20 seconds to 90% in airflow of 1 m/s / 20 seconds to 90% in airflow of 2.2 mph |
| Logger | |
| Radio Power | 1 mW / 0 dBm |
| Transmission Range | Approximately 30.5 m line-of-sight / Approximately 100 ft line-of-sight |
| Wireless Data Standard | Bluetooth Low Energy (Bluetooth Smart) |
| Logger Operating Range | -20° to 70°C, 0 to 95% RH (non-condensing) / -4° to 158°F, 0 to 95% RH (non-condensing) |
| Logging Rate | 1 second to 18 hours |
| Logging Modes | Fixed interval (normal, statistics) or burst |
| Memory Modes | Wrap when full or stop when full |
| Start Modes | Immediate, push button, date & time, or next interval |
| Stop Modes | Memory full, push button, date & time, or set logging period |
| Restart Mode | Push button |
| Time Accuracy | ±1 minute per month at 25°C/77°F |
| Battery Life | 1 year (conditions apply) |
| Battery Type | Two AAA 1.5 V alkaline batteries (replaceable) |
| Memory | 128 KB (84,650 measurements, max) |
| Full Memory Download Time | Approx. 60 seconds (depends on device distance from logger) |
| LCD | Visible from 0° to 50°C (may vary outside this range) / Visible from 32° to 122°F (may vary outside this range) |
| Size | 3.66 x 8.48 x 2.29 cm / 1.44 x 3.34 x 0.9 in. |
| Weight | 56 g / 1.98 oz |
| Environmental Rating | IP50 |
Applications
In what environment does this data logger operate?
This data logger operates in an indoor environment.
What measurements does this data logger support?
The MX1101 data logger supports the following measurements: Relative Humidity and Temperature
